Using custom colors in the TDBGrid columns with vcl styles enabled

The TDBGrid component allows you to customize the colors of the columns and fonts used to draw the data.

Unfortunately if you uses the vcl styles all these customizations are lost

This issue is caused because the TCustomDBGrid.DrawCell method ignores the custom colors of the columns when the vcl styles are enabled. So the solution is patch this method to allow use the proper colors. After of this you will get a result like so.

I just uploaded this patch as part of the vcl styles utils project. To use it you must add the Vcl.Styles.DbGrid unit to the uses part of your form after of the Vcl.DBGrids unit.


2 Comments

Added new unit to the vcl style utils to fix the QC #103708, #107764 reports

I just uploaded a new unit to the vcl style utils project called Vcl.Styles.Fixes, this unit contains the TButtonStyleHook style hook which fix these QC #103708, #107764 reports for Delphi XE2.

Note : The QC #103708 still exist in Delphi XE2 Update 4, even if appears as resolved (XE3 maybe?)


4 Comments

A quick guide to evaluate and compile expressions using the LiveBindings expression evaluator.

The LiveBindings technology introduced in Delphi XE2, includes a set of interfaces, classes and methods to evaluate and compile expressions.

Today I will show you how you can use these classes to build, compile and evaluate simple (and complex) expressions. You can use these expressions for example to define formulas to calculate taxes, generate hashes, encrypt data or use in any situation where you need calculate a value where the values or factors may change (anyway the possibilities are endless), Also you can store these expressions in a XML file or a database and use them as needed.

Note: In this article is not used the TBindingExpression class directly, instead are used the raw classes and methods of the of livebindings expression evaluator, because you can gain much more flexibility to build your expressions.

Before to begin is necessary know the basic elements to build, compile and evaluate an expression.

  • The IScope is the base Interface to hold the objects used to make the evaluation and compilation, here you store the methods , classes and values which will be used to build the expression.
  • The Compile method located in the System.Bindings.Evaluator unit, is used to compile the expression using a IScope interface, this method will return a ICompiledBinding interface which can be used to evaluate and get the result of the compilation.
  • The ICompiledBinding interface allows the evaluation of the compiled expression.
  • The TNestedScope class allows you to merge IScopes.

Basic Example

The more basic expression which you can use is based in the BasicOperators Scope (located in the System.Bindings.EvalSys unit), this allows you evaluate only numbers and the basic arithmetic operations, check this sample.

{$APPTYPE CONSOLE}

uses
  System.Rtti,
  System.Bindings.EvalProtocol,
  System.Bindings.Evaluator,
  System.Bindings.EvalSys,
  System.SysUtils;

procedure DoIt;
Var
  LScope : IScope;
  LCompiledExpr : ICompiledBinding;
  LResult : TValue;
begin
  LScope:= BasicOperators;
  LCompiledExpr:= Compile('((1+2+3+4)*(25/5))-(10)', LScope);
  LResult:=LCompiledExpr.Evaluate(LScope, nil, nil).GetValue;
  if not LResult.IsEmpty then
    Writeln(LResult.ToString);
end;

begin
 try
    DoIt;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Registering a Constant

Now if you need evaluate the value of a constant you must create a IScope descendent and add the constants to register, finally you must merge the new scope with the original using the TNestedScope.


{$APPTYPE CONSOLE}

uses
  System.Rtti,
  System.Bindings.EvalProtocol,
  System.Bindings.Evaluator,
  System.Bindings.EvalSys,
  System.SysUtils;

procedure DoIt;
Var
  LScope : IScope;
  LCompiledExpr : ICompiledBinding;
  LResult : TValue;
  LDictionaryScope: TDictionaryScope;
begin
  LScope:= TNestedScope.Create(BasicOperators, BasicConstants);
  LDictionaryScope := TDictionaryScope.Create;
  //add a set of constants to the Scope
  LDictionaryScope.Map.Add('MinsPerHour', TValueWrapper.Create(MinsPerHour));
  LDictionaryScope.Map.Add('MinsPerDay', TValueWrapper.Create(MinsPerDay));
  LDictionaryScope.Map.Add('MSecsPerSec', TValueWrapper.Create(MSecsPerSec));
  LDictionaryScope.Map.Add('MSecsPerDay', TValueWrapper.Create(MSecsPerDay));

  //merge the scopes
  LScope:= TNestedScope.Create(LScope, LDictionaryScope);

  LCompiledExpr:= Compile('MinsPerHour*24', LScope);
  LResult:=LCompiledExpr.Evaluate(LScope, nil, nil).GetValue;
  if not LResult.IsEmpty then
    Writeln(LResult.ToString);

end;

begin
 try
    DoIt;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

In the above code the Scope is initialized using the TNestedScope class to merge the BasicOperators and BasicConstants (this Scope define the values True, False, nil, and Pi) scopes

  LScope:= TNestedScope.Create(BasicOperators, BasicConstants);

Tip 1 : The constants and identifiers in the expression are case-sensitive.

Using Methods

The livebindings expression evaluator include a set of basic methods (ToStr, ToVariant, ToNotifyEvent, Round, Format, UpperCase, LowerCase, FormatDateTime, StrToDateTime, Math_Min, Math_Max) which can be used in our expressions, these are defined in the System.Bindings.Methods unit and must be accessed the TBindingMethodsFactory class.

Check this sample code which uses the Format function.

{$APPTYPE CONSOLE}

uses
  System.Rtti,
  System.Bindings.EvalProtocol,
  System.Bindings.Evaluator,
  System.Bindings.EvalSys,
  System.Bindings.Methods,
  System.SysUtils;

procedure DoIt;
Var
  LScope : IScope;
  LCompiledExpr : ICompiledBinding;
  LResult : TValue;
  LDictionaryScope: TDictionaryScope;
begin
  LScope:= TNestedScope.Create(BasicOperators, BasicConstants);
  //add the registered methods
  LScope := TNestedScope.Create(LScope, TBindingMethodsFactory.GetMethodScope);
  LCompiledExpr:= Compile('Format("%s using the function %s, this function can take numbers like %d or %n as well","This is a formated string","Format",36, Pi)', LScope);
  LResult:=LCompiledExpr.Evaluate(LScope, nil, nil).GetValue;
  if not LResult.IsEmpty then
    Writeln(LResult.ToString);
end;

begin
 try
    DoIt;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Tip 2 : The strings in the expressions can be surrounded in double or single quotes.

Registering a Custom Method

Most of the times when you build an expression, you will need register a custom method, this can be easily done using the TBindingMethodsFactory class.

The first step is create a function wich returns a IInvokable interface. For this you can use the MakeInvokable method and then you write the implementation of your function as an anonymous method.

Finally using the TBindingMethodsFactory.RegisterMethod function you can register the custom method.

Check this sample code which implement a custom function called IfThen :)

{$APPTYPE CONSOLE}

uses
  System.Rtti,
  System.TypInfo,
  System.Bindings.Consts,
  System.Bindings.EvalProtocol,
  System.Bindings.Evaluator,
  System.Bindings.EvalSys,
  System.Bindings.Methods,
  System.SysUtils;

{
function IfThen(AValue: Boolean; const ATrue: Integer; const AFalse: Integer): Integer;
function IfThen(AValue: Boolean; const ATrue: Int64; const AFalse: Int64): Int64;
function IfThen(AValue: Boolean; const ATrue: UInt64; const AFalse: UInt64): UInt64;
function IfThen(AValue: Boolean; const ATrue: Single; const AFalse: Single): Single;
function IfThen(AValue: Boolean; const ATrue: Double; const AFalse: Double): Double;
function IfThen(AValue: Boolean; const ATrue: Extended; const AFalse: Extended): Extended;
}
function IfThen: IInvokable;
begin
  Result := MakeInvokable(
    function(Args: TArray<IValue>): IValue
      var
        IAValue: IValue;
        AValue: Boolean;
        IATrue, IAFalse: IValue;
     begin
        //check the number of passed parameters
        if Length(Args) <> 3 then
          raise EEvaluatorError.Create(sFormatArgError);

         IAValue:=Args[0];
         IATrue :=Args[1];
         IAFalse:=Args[2];

         //check if the parameters has values
         if IATrue.GetValue.IsEmpty or IAFalse.GetValue.IsEmpty then
          Exit(TValueWrapper.Create(nil))
         else
         //check if the parameters has the same types
         if IATrue.GetValue.Kind<>IAFalse.GetValue.Kind then
          raise EEvaluatorError.Create('The return values must be of the same type')
         else
         //check if the first parameter is boolean
         if (IAValue.GetType.Kind=tkEnumeration) and (IAValue.GetValue.TryAsType<Boolean>(AValue)) then //Boolean is returned as tkEnumeration
         begin
           if AValue then
            //return the value for True condition
            Exit(TValueWrapper.Create(IATrue.GetValue))
           else
            //return the value for the False condition
            Exit(TValueWrapper.Create(IAFalse.GetValue))
         end
         else raise EEvaluatorError.Create('The first parameter must be a boolean expression');
     end
     );
end;

procedure DoIt;
Var
  LScope : IScope;
  LCompiledExpr : ICompiledBinding;
  LResult : TValue;
  LDictionaryScope: TDictionaryScope;
begin
  LScope:= TNestedScope.Create(BasicOperators, BasicConstants);

    //add a custom method
    TBindingMethodsFactory.RegisterMethod(
        TMethodDescription.Create(
          IfThen,
          'IfThen',
          'IfThen',
          '',
          True,
          '',
          nil));

  //add the registered methods
  LScope := TNestedScope.Create(LScope, TBindingMethodsFactory.GetMethodScope);
  LCompiledExpr:= Compile('Format("The sentence is %s", IfThen(1>0,"True","False"))', LScope);
  LResult:=LCompiledExpr.Evaluate(LScope, nil, nil).GetValue;
  if not LResult.IsEmpty then
    Writeln(LResult.ToString);
end;

begin
 try
    DoIt;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Tip 3 : Remember use TBindingMethodsFactory.UnRegisterMethod function to unregister your custom method.

Registering a Class

In order to use your own class in an expression you must create a Scope using the TObjectWrapper class or the WrapObject method.

{$APPTYPE CONSOLE}

uses
  System.Rtti,
  System.TypInfo,
  System.Bindings.Consts,
  System.Bindings.EvalProtocol,
  System.Bindings.Evaluator,
  System.Bindings.EvalSys,
  System.Bindings.ObjEval,
  System.SysUtils;

Type
 TMyClass= class
  function Random(Value:Integer): Integer;
 end;

{ TMyClass }
function TMyClass.Random(Value:Integer): Integer;
begin
  Result:=System.Random(Value);
end;

procedure DoIt;
Var
  LScope : IScope;
  LCompiledExpr : ICompiledBinding;
  LResult : TValue;
  LDictionaryScope: TDictionaryScope;
  M : TMyClass;
begin
  M := TMyClass.Create;
  try
    LScope:= TNestedScope.Create(BasicOperators, BasicConstants);
    //add a object
    LDictionaryScope := TDictionaryScope.Create;
    LDictionaryScope.Map.Add('M', WrapObject(M));
    LScope := TNestedScope.Create(LScope, LDictionaryScope);
    LCompiledExpr:= Compile('M.Random(10000000)', LScope);
    LResult:=LCompiledExpr.Evaluate(LScope, nil, nil).GetValue;
    if not LResult.IsEmpty then
      Writeln(LResult.ToString);
  finally
    M.Free;
  end;
end;

begin
 try
    Randomize;
    DoIt;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.


13 Comments

Creating colorful tabsheets with the VCL Styles


Introduction

Until now if you want change the color of a TTabSheet in a VCL application you must create a new descendant class of the TTabSheet component, then handle the WM_ERASEBKGND message, set the TPageControl to OwnerDraw property to true and finally implement the OnDrawTab event. And after that you will have an awfull and un-themed TPageControl.

In this post I will show you how using the vcl styles you can gain full control over to paint methods with very nice results.

The TTabSheet

To customize the colors of the TabSheets of a TPageControl we need to handle the WM_ERASEBKGND message of the TTabsheet and create a new Vcl Style Hook. For the first part we can use a interposer class like so

type
  TTabSheet = class(Vcl.ComCtrls.TTabSheet)
  private
    procedure WMEraseBkgnd(var Message: TWMEraseBkgnd); message WM_ERASEBKGND;
  end;

And then in the implementation of the WMEraseBkgnd method

{ TTabSheet }
procedure TTabSheet.WMEraseBkgnd(var Message: TWMEraseBkgnd);
var
  LRect  : TRect;
  LSize  : Integer;
  LCanvas: TCanvas;
begin
  if (PageControl <> nil) and StyleServices.Enabled and
     ((PageControl.Style = tsTabs) or TStyleManager.IsCustomStyleActive) then
  begin
    //Get the bounds of the Tabsheet
    GetWindowRect(Handle, LRect);
    OffsetRect(LRect, -LRect.Left, -LRect.Top);
    //Get the size of the border
    LSize := ClientToParent(Point(0, 0)).X;
    InflateRect(LRect, LSize, LSize); // remove the border
    //create a TCanvas for erase the background, using the DC of the message
    LCanvas := TCanvas.Create;
    try
      LCanvas.Handle := Message.DC;
      LCanvas.Brush.Color:=GetColorTab(TabIndex);
      LCanvas.FillRect(LRect);
    finally
      LCanvas.Handle := 0;
      LCanvas.Free;
    end;

    Message.Result := 1;
    //the call to this method produces which the Style hook paint the active tabsheet
    PageControl.UpdateTab2(PageControl.ActivePage);
  end
  else
    inherited;
end;

In the above code you can note a call to the methods GetColorTab and PageControl.UpdateTab2

The GetColorTab is a simple function which return a color based in the index of the tab (you an modify the colors returned as you want)

function GetColorTab(Index : Integer) : TColor;
Const
  MaxColors =9;
  //this is a sample palette of colors
  Colors : Array [0..MaxColors-1] of TColor = (6512214,16755712,8355381,1085522,115885,1098495,1735163,2248434,4987610);
begin
  Result:=Colors[Index mod MaxColors];
end;

The PageControl.UpdateTab2 is part of a helper class to execute the private method TPageControl.UpdateTab and is just a trick used to inform to vcl style that need paint the active tabsheet.

type
  TPageControlHelper = class helper for TPageControl
  public
    procedure UpdateTab2(Page: Vcl.ComCtrls.TTabSheet);
  end;

procedure TPageControlHelper.UpdateTab2(Page: Vcl.ComCtrls.TTabSheet);
begin
  Self.UpdateTab(Page);
end;

The Vcl style hook

Now the second part is implement the style hook using the existing TTabControlStyleHook as base class, so in this way we only need override 3 methods (PaintBackground, Paint and DrawTab) and handle the WM_ERASEBKGND message again.

Take a look to the declaration of the new vcl style hook

  TTabColorControlStyleHook= class(TTabControlStyleHook)
  private
    procedure WMEraseBkgnd(var Message: TMessage); message WM_ERASEBKGND;
  protected
    procedure PaintBackground(Canvas: TCanvas); override;
    procedure Paint(Canvas: TCanvas); override;
    procedure DrawTab(Canvas: TCanvas; Index: Integer); override;
  end;

Before we handle the WM_ERASEBKGND message of the TTabsheet, now we need do the same but for the style hook, because the style hook (TStyleHook) has their own messages handle routine.

procedure TTabColorControlStyleHook.WMEraseBkgnd(var Message: TMessage);
var
  LCanvas : TCanvas;
begin
  if (Message.LParam = 1) and StyleServices.Available then
  begin
    //create a Local canvas based in the HDC returned in the Message.WParam
    LCanvas := TCanvas.Create;
    try
      LCanvas.Handle := HDC(Message.WParam);
      //get the color
      LCanvas.Brush.Color:=GetColorTab(TabIndex);
      //apply the color
      LCanvas.FillRect(Control.ClientRect);
    finally
      LCanvas.Handle := 0;
      LCanvas.Free;
    end;
  end;
  Message.Result := 1;
  Handled := True;
end;

Following the implementation of the vcl style hook, this is the implementation of the PaintBackground method.

procedure TTabColorControlStyleHook.PaintBackground(Canvas: TCanvas);
var
  LColor : TColor;
begin
  if StyleServices.Available then
  begin
    //get the background color
    LColor:=StyleServices.GetSystemColor(clWindowFrame);
    Canvas.Brush.Color:=LColor;
    Canvas.FillRect(Control.ClientRect);
  end;
end;

Now the code for the Paint method, this procedure paint the body of the tabsheet and draw the child controls.

procedure TTabColorControlStyleHook.Paint(Canvas: TCanvas);
var
  LRect  : TRect;
  LIndex : Integer;
  SavedDC: Integer;
begin
  SavedDC := SaveDC(Canvas.Handle);
  try
    LRect := DisplayRect;
    ExcludeClipRect(Canvas.Handle, LRect.Left, LRect.Top, LRect.Right, LRect.Bottom);
    PaintBackground(Canvas);
  finally
    RestoreDC(Canvas.Handle, SavedDC);
  end;

  // Update the state of the tabs, except the active
  for LIndex := 0 to TabCount - 1 do
  begin
    if LIndex = TabIndex then
      Continue;
    DrawTab(Canvas, LIndex);
  end;

  //modify the bounds of the body to paint, based in the postion of the tab
  case TabPosition of
    tpTop   : InflateRect(LRect, Control.Width - LRect.Right, Control.Height - LRect.Bottom);
    tpLeft  : InflateRect(LRect, Control.Width - LRect.Right, Control.Height - LRect.Bottom);
    tpBottom: InflateRect(LRect, LRect.Left, LRect.Top);
    tpRight : InflateRect(LRect, LRect.Left, LRect.Top);
  end;

  //Paint the body of the tabsheet
  if StyleServices.Available then
  begin
    Canvas.Brush.Color:=GetColorTab(TabIndex);
    Canvas.FillRect(LRect);
  end;

  // Draw the active tab
  if TabIndex >= 0 then
    DrawTab(Canvas, TabIndex);

  // paint the controls of the tab
  TWinControlClass(Control).PaintControls(Canvas.Handle, nil);
end;

We’re almost done the job, now we just need to implement the code for draw the Tab. Check the next full commented code

procedure TTabColorControlStyleHook.DrawTab(Canvas: TCanvas; Index: Integer);
var
  LDetails    : TThemedElementDetails;
  LImageIndex : Integer;
  LThemedTab  : TThemedTab;
  LIconRect   : TRect;
  R, LayoutR  : TRect;
  LImageW, LImageH, DxImage : Integer;
  LTextX, LTextY: Integer;
  LTextColor    : TColor;
    //draw the text in the tab
    procedure DrawControlText(const S: string; var R: TRect; Flags: Cardinal);
    var
      TextFormat: TTextFormatFlags;
    begin
      Canvas.Font       := TWinControlClass(Control).Font; //the TWinControlClass is a just a crack class for the TWinControl to access the protected members
      TextFormat        := TTextFormatFlags(Flags);
      Canvas.Font.Color := LTextColor;
      StyleServices.DrawText(Canvas.Handle, LDetails, S, R, TextFormat, Canvas.Font.Color);
    end;

begin
  //get the size of tab image (icon)
  if (Images <> nil) and (Index < Images.Count) then
  begin
    LImageW := Images.Width;
    LImageH := Images.Height;
    DxImage := 3;
  end
  else
  begin
    LImageW := 0;
    LImageH := 0;
    DxImage := 0;
  end;

  R := TabRect[Index];
  //check the left position of the tab , because can be hide
  if R.Left < 0 then Exit;

  //adjust the size of the tab to draw
  if TabPosition in [tpTop, tpBottom] then
  begin
    if Index = TabIndex then
      InflateRect(R, 0, 2);
  end
  else
  if Index = TabIndex then
    Dec(R.Left, 2)
  else
    Dec(R.Right, 2);


  Canvas.Font.Assign(TCustomTabControlClass(Control).Font);//the TCustomTabControlClass is another crack class to access the protected font property
  LayoutR := R;
  LThemedTab := ttTabDontCare;
  //Get the type of the active tab to draw
  case TabPosition of
    tpTop:
      begin
        if Index = TabIndex then
          LThemedTab := ttTabItemSelected
        else
        if (Index = HotTabIndex) and MouseInControl then
          LThemedTab := ttTabItemHot
        else
          LThemedTab := ttTabItemNormal;
      end;
    tpLeft:
      begin
        if Index = TabIndex then
          LThemedTab := ttTabItemLeftEdgeSelected
        else
        if (Index = HotTabIndex) and MouseInControl then
          LThemedTab := ttTabItemLeftEdgeHot
        else
          LThemedTab := ttTabItemLeftEdgeNormal;
      end;
    tpBottom:
      begin
        if Index = TabIndex then
          LThemedTab := ttTabItemBothEdgeSelected
        else
        if (Index = HotTabIndex) and MouseInControl then
          LThemedTab := ttTabItemBothEdgeHot
        else
          LThemedTab := ttTabItemBothEdgeNormal;
      end;
    tpRight:
      begin
        if Index = TabIndex then
          LThemedTab := ttTabItemRightEdgeSelected
        else
        if (Index = HotTabIndex) and MouseInControl then
          LThemedTab := ttTabItemRightEdgeHot
        else
          LThemedTab := ttTabItemRightEdgeNormal;
      end;
  end;

  //draw the tab
  if StyleServices.Available then
  begin
    LDetails := StyleServices.GetElementDetails(LThemedTab);//necesary for DrawControlText and draw the icon
    InflateRect(R,-1,0);//adjust the size of the tab creating a blank space between the tabs
    Canvas.Brush.Color:=GetColorTab(Index);//get the color
    Canvas.FillRect(R);
  end;

  //get the index of the image (icon)
  if Control is TCustomTabControl then
    LImageIndex := TCustomTabControlClass(Control).GetImageIndex(Index)
  else
    LImageIndex := Index;

  //draw the image
  if (Images <> nil) and (LImageIndex >= 0) and (LImageIndex < Images.Count) then
  begin
    LIconRect := LayoutR;
    case TabPosition of
      tpTop, tpBottom:
        begin
          LIconRect.Left := LIconRect.Left + DxImage;
          LIconRect.Right := LIconRect.Left + LImageW;
          LayoutR.Left := LIconRect.Right;
          LIconRect.Top := LIconRect.Top + (LIconRect.Bottom - LIconRect.Top) div 2 - LImageH div 2;
          if (TabPosition = tpTop) and (Index = TabIndex) then
            OffsetRect(LIconRect, 0, -1)
          else
          if (TabPosition = tpBottom) and (Index = TabIndex) then
            OffsetRect(LIconRect, 0, 1);
        end;
      tpLeft:
        begin
          LIconRect.Bottom := LIconRect.Bottom - DxImage;
          LIconRect.Top := LIconRect.Bottom - LImageH;
          LayoutR.Bottom := LIconRect.Top;
          LIconRect.Left := LIconRect.Left + (LIconRect.Right - LIconRect.Left) div 2 - LImageW div 2;
        end;
      tpRight:
        begin
          LIconRect.Top := LIconRect.Top + DxImage;
          LIconRect.Bottom := LIconRect.Top + LImageH;
          LayoutR.Top := LIconRect.Bottom;
          LIconRect.Left := LIconRect.Left + (LIconRect.Right - LIconRect.Left) div 2 - LImageW div 2;
        end;
    end;
    if StyleServices.Available then
      StyleServices.DrawIcon(Canvas.Handle, LDetails, LIconRect, Images.Handle, LImageIndex);
  end;

  //draw the text of the tab
  if StyleServices.Available then
  begin
    LTextColor:=GetColorTextTab(LThemedTab);//this is a helper function which get the  text color of the tab based in his current state (normal, select, hot).

    if (TabPosition = tpTop) and (Index = TabIndex) then
      OffsetRect(LayoutR, 0, -1)
    else
    if (TabPosition = tpBottom) and (Index = TabIndex) then
      OffsetRect(LayoutR, 0, 1);

    if TabPosition = tpLeft then
    begin
      LTextX := LayoutR.Left + (LayoutR.Right - LayoutR.Left) div 2 - Canvas.TextHeight(Tabs[Index]) div 2;
      LTextY := LayoutR.Top + (LayoutR.Bottom - LayoutR.Top) div 2 + Canvas.TextWidth(Tabs[Index]) div 2;
      Canvas.Font.Color := LTextColor;
      AngleTextOut2(Canvas, 90, LTextX, LTextY, Tabs[Index]);
    end
    else
    if TabPosition = tpRight then
    begin
      LTextX := LayoutR.Left + (LayoutR.Right - LayoutR.Left) div 2 + Canvas.TextHeight(Tabs[Index]) div 2;
      LTextY := LayoutR.Top + (LayoutR.Bottom - LayoutR.Top) div 2 - Canvas.TextWidth(Tabs[Index]) div 2;
      Canvas.Font.Color := LTextColor;
      AngleTextOut2(Canvas, -90, LTextX, LTextY, Tabs[Index]);
    end
    else
     DrawControlText(Tabs[Index], LayoutR, DT_VCENTER or DT_CENTER or DT_SINGLELINE  or DT_NOCLIP);
  end;
end;

The final result

Ok, that was a lot of code, now this is the final result

To use this style hook you must include the Vcl.Styles.ColorTabs unit in your uses class after of the Vcl.ComCtrls unit and then register the hook in this way.

  TCustomStyleEngine.RegisterStyleHook(TCustomTabControl, TTabColorControlStyleHook);
  TCustomStyleEngine.RegisterStyleHook(TTabControl, TTabColorControlStyleHook);

The full source code of this style hook is located in the vcl style utils repository.


22 Comments

VCL Styles – Adding background images and colors to Delphi forms

Adding a background image to a delphi form is a topic very well covered by many articles, but most of them doesn’t work or another produces a lot of flicker when the vcl styles are enabled. The common techniques to set a background image in a form includes :

  • Use a TImage component with the align property set to alClient
  • Use the OnPaint event of the Form and handle the WM_ERASEBKGND message
  • use the Canvas.Brush.Bitmap property of the form to assign a bitmap
  • and so on.

Since the introduction of the vcl styles, now you can use the style hooks to handle the paint operations of the TWinControl descendant, the main advantage about the styles hookz is which you can override the core paint methods directly, avoiding the flicker and in most cases you do not even need to handle the windows messages. So now I will how you how you can create a style hook to add a custom background image or color to a form including the non client area.

The first step is create a new Style hook descendant of the TFormStyleHook class and override the PaintNC and PaintBackground methods.

So the class definition will look like this

type
  TFormStyleHookBackround=class(TFormStyleHook)
  strict private
    type
      TSettings = class
      strict private
        FColor: TColor;
        FImageLocation: string;
        FBitmap: TBitmap;
        FUseColor: Boolean;
        FUseImage: Boolean;
        FEnabled: Boolean;
        procedure SetColor(const Value: TColor);
        procedure SetImageLocation(const Value: string);
        procedure SetUseColor(const Value: Boolean);
        procedure SetUseImage(const Value: Boolean);
      public
        property UseImage : Boolean read FUseImage write SetUseImage;
        property UseColor : Boolean read FUseColor write SetUseColor;
        property Color : TColor read FColor write SetColor;
        property ImageLocation : string read FImageLocation write SetImageLocation;
        property Bitmap : TBitmap read FBitmap;
        property Enabled : Boolean read FEnabled write FEnabled;
        constructor Create;
        destructor  Destroy;override;
      end;
    class var FNCSettings: TSettings;
    class var FBackGroundSettings: TSettings;
    class var FMergeImages: boolean;
  protected
    procedure PaintNC(Canvas: TCanvas); override;
    procedure PaintBackground(Canvas: TCanvas); override;
    class constructor Create;
    class destructor  Destroy;
  public
    class property MergeImages: boolean read FMergeImages write FMergeImages;
    class property NCSettings : TSettings read FNCSettings;
    class property BackGroundSettings : TSettings read FBackGroundSettings;
  end;

Note: the above class definition includes some additional elements to store the settings of the style hook like Bitmaps and Colors used.

Painting the background

The PaintBackground method, paints the background of the form filling the control area with the current vcl style background color, in this case we are use a bitmap or a custom color depnding of the setting of the hook.

procedure TFormStyleHookBackround.PaintBackground(Canvas: TCanvas);
var
  LRect   : TRect;
  RBitmap : TRect;
  L,H     : Integer;
begin
  //if the option is not enabled use the default inherited PaintBackground method
  if not BackGroundSettings.Enabled then
   inherited
  else
  begin
    //get he bounds of the control (form)
    LRect := Rect(0, 0, Control.ClientWidth, Control.ClientHeight);
    //use a custom color for the background?
    if  BackGroundSettings.UseColor then
    begin
     Canvas.Brush.Color:=BackGroundSettings.Color;
     Canvas.FillRect(LRect);
    end
    else
    //use a bitmap
    begin
      //check the size of the bitmap against the control bounds to detrine how the bitmap is drawn
      if (BackGroundSettings.Bitmap.Width<LRect.Width) or (BackGroundSettings.Bitmap.Height<LRect.Height) then
      begin
       Canvas.Brush.Bitmap := BackGroundSettings.BitMap;
       Canvas.FillRect(LRect);
      end
      else
      begin
       //check if the the background bitmap must be merged with non client area bitmap
       if not FMergeImages then
        Canvas.CopyRect(LRect,BackGroundSettings.Bitmap.Canvas,LRect)
       else
       begin
        RBitmap:=LRect;
        H:=_GetBorderSize.Top;
        L:=_GetBorderSize.Left;
        RBitmap.SetLocation(L, H);
        Canvas.CopyRect(LRect,BackGroundSettings.Bitmap.Canvas,RBitmap);
       end;
      end;
    end;
  end;
end;

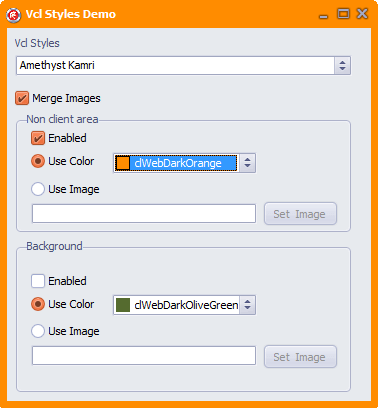

The above code will produce results like these

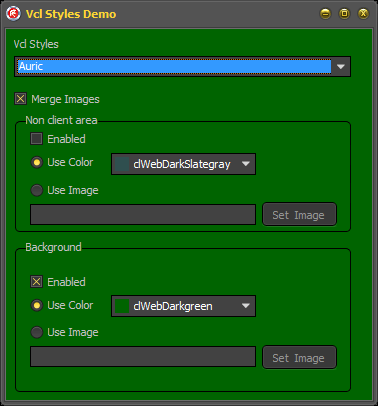

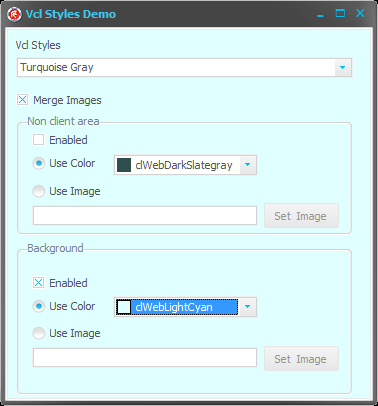

Using a custom color background

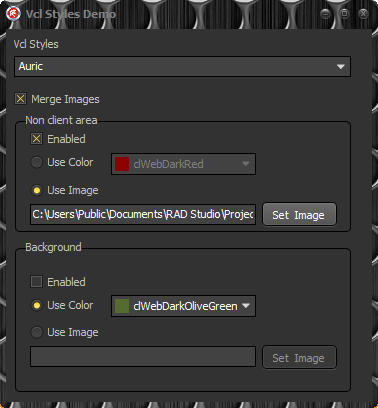

Using a custom image background

Painting the Non client area

To handle the paint operations over the non client area in the old versions of windows (before to windows vista) you must handle the WM_NCPAINT windows message or since Windows Vista using the DWM API you can accomplish this task. But if you uses the vcl styles only you must need override the PaintNC method.

This is the implementation of the PaintNC method to use a custom color or image in the non client area.

procedure TFormStyleHookBackround.PaintNC(Canvas: TCanvas);
var
  LDetail: TThemedWindow;
  LDetails,
  CaptionDetails,
  IconDetails   : TThemedElementDetails;
  R, R1, DrawRect, ButtonRect, TextRect: TRect;
  CaptionBuffer: TBitmap;
  FButtonState: TThemedWindow;
  TextFormat: TTextFormat;
  LText: string;
  SrcBackRect     : TRect;
begin
  //if the setting is not enabled use the original PaintNC method
  if not NCSettings.Enabled then
  begin
   inherited ;
   exit;
  end;

  //check the border style of the form
  if Form.BorderStyle = bsNone then
  begin
    MainMenuBarHookPaint(Canvas);
    Exit;
  end;


  {init some parameters}
  _FCloseButtonRect := Rect(0, 0, 0, 0);
  _FMaxButtonRect := Rect(0, 0, 0, 0);
  _FMinButtonRect := Rect(0, 0, 0, 0);
  _FHelpButtonRect := Rect(0, 0, 0, 0);
  _FSysMenuButtonRect := Rect(0, 0, 0, 0);
  _FCaptionRect := Rect(0, 0, 0, 0);

  if not StyleServices.Available then
    Exit;
  R := _GetBorderSize;

  {draw caption}

  if (Form.BorderStyle <> bsToolWindow) and
     (Form.BorderStyle <> bsSizeToolWin) then
  begin
    if _FFormActive then
      LDetail := twCaptionActive
    else
      LDetail := twCaptionInActive
  end
  else
  begin
   if _FFormActive then
      LDetail := twSmallCaptionActive
    else
      LDetail := twSmallCaptionInActive
  end;
  CaptionBuffer := TBitmap.Create;
  CaptionBuffer.SetSize(_FWidth, R.Top);

  {draw caption border}
  DrawRect := Rect(0, 0, CaptionBuffer.Width, CaptionBuffer.Height);
  LDetails := StyleServices.GetElementDetails(LDetail);  //used for draw text in the caption

  //check if a must use a custom color or a bitmap
  if FNCSettings.UseColor then
  begin
    //use the select color to fill the background of the canvas
    CaptionBuffer.Canvas.Brush.Color:=FNCSettings.Color;
    CaptionBuffer.Canvas.FillRect(DrawRect);
  end
  else
  begin
    //use the bitmap to fill the canvas
    SrcBackRect.Left:=0;
    SrcBackRect.Top:=0;
    SrcBackRect.Width:=DrawRect.Width;
    SrcBackRect.Height:=DrawRect.Height;
    //SrcBackRect.SetLocation(FNCSettings.Bitmap.Width-DrawRect.Width, 0);
    //SrcBackRect.SetLocation(_GetBorderSize.Width, 0);
    CaptionBuffer.Canvas.CopyRect(DrawRect, FNCSettings.Bitmap.Canvas,SrcBackRect);
  end;

  TextRect := DrawRect;
  CaptionDetails := LDetails;

  {draw icon}
  if (biSystemMenu in TCustomFormHack(Form).BorderIcons) and
     (Form.BorderStyle <> bsDialog) and
     (Form.BorderStyle <> bsToolWindow) and
     (Form.BorderStyle <> bsSizeToolWin) then
  begin
    IconDetails := StyleServices.GetElementDetails(twSysButtonNormal);
    if not StyleServices.GetElementContentRect(0, IconDetails, DrawRect, ButtonRect) then
      ButtonRect := Rect(0, 0, 0, 0);
    R1 := Rect(0, 0, GetSystemMetrics(SM_CXSMICON), GetSystemMetrics(SM_CYSMICON));
    RectVCenter(R1, ButtonRect);
    if ButtonRect.Width > 0 then
      DrawIconEx(CaptionBuffer.Canvas.Handle, R1.Left, R1.Top, _GetIconFast.Handle, 0, 0, 0, 0, DI_NORMAL);
    Inc(TextRect.Left, ButtonRect.Width + 5);
    _FSysMenuButtonRect := ButtonRect;
  end
  else
    Inc(TextRect.Left, R.Left);

  {draw buttons}
  if (biSystemMenu in TCustomFormHack(Form).BorderIcons) then
  begin
    if (Form.BorderStyle <> bsToolWindow) and
       (Form.BorderStyle <> bsSizeToolWin) then
    begin
      if (_FPressedButton = HTCLOSE) and (_FHotButton = HTCLOSE) then
        FButtonState := twCloseButtonPushed
      else if _FHotButton = HTCLOSE then
        FButtonState := twCloseButtonHot
      else
        if _FFormActive then
          FButtonState := twCloseButtonNormal
        else
          FButtonState := twCloseButtonDisabled;
     end
    else
    begin
      if (_FPressedButton = HTCLOSE) and (_FHotButton = HTCLOSE) then
        FButtonState := twSmallCloseButtonPushed
      else if _FHotButton = HTCLOSE then
        FButtonState := twSmallCloseButtonHot
      else
        if _FFormActive then
          FButtonState := twSmallCloseButtonNormal
        else
          FButtonState := twSmallCloseButtonDisabled;
    end;

    LDetails := StyleServices.GetElementDetails(FButtonState);
    if not StyleServices.GetElementContentRect(0, LDetails, DrawRect, ButtonRect) then
      ButtonRect := Rect(0, 0, 0, 0);

    StyleServices.DrawElement(CaptionBuffer.Canvas.Handle, LDetails, ButtonRect);

    if ButtonRect.Left > 0 then
      TextRect.Right := ButtonRect.Left;
    _FCloseButtonRect := ButtonRect;
  end;

  if (biMaximize in TCustomFormHack(Form).BorderIcons) and
     (biSystemMenu in TCustomFormHack(Form).BorderIcons) and
     (Form.BorderStyle <> bsDialog) and
     (Form.BorderStyle <> bsToolWindow) and
     (Form.BorderStyle <> bsSizeToolWin) then
  begin
    if Form.WindowState = wsMaximized then
    begin
      if (_FPressedButton = HTMAXBUTTON) and (_FHotButton = HTMAXBUTTON) then
        FButtonState := twRestoreButtonPushed
      else if _FHotButton = HTMAXBUTTON then
        FButtonState := twRestoreButtonHot
      else
      if _FFormActive then
        FButtonState := twRestoreButtonNormal
      else
        FButtonState := twRestoreButtonDisabled;
    end
    else
    begin
      if (_FPressedButton = HTMAXBUTTON) and (_FHotButton = HTMAXBUTTON) then
        FButtonState := twMaxButtonPushed
      else if _FHotButton = HTMAXBUTTON then
        FButtonState := twMaxButtonHot
      else
      if _FFormActive then
        FButtonState := twMaxButtonNormal
      else
        FButtonState := twMaxButtonDisabled;
    end;
    LDetails := StyleServices.GetElementDetails(FButtonState);

    if not StyleServices.GetElementContentRect(0, LDetails, DrawRect, ButtonRect) then
      ButtonRect := Rect(0, 0, 0, 0);
    if ButtonRect.Width > 0 then
      StyleServices.DrawElement(CaptionBuffer.Canvas.Handle, LDetails, ButtonRect);
    if ButtonRect.Left > 0 then
      TextRect.Right := ButtonRect.Left;
    _FMaxButtonRect := ButtonRect;
  end;

  if (biMinimize in TCustomFormHack(Form).BorderIcons) and
     (biSystemMenu in TCustomFormHack(Form).BorderIcons) and
     (Form.BorderStyle <> bsDialog) and
     (Form.BorderStyle <> bsToolWindow) and
     (Form.BorderStyle <> bsSizeToolWin) then
  begin
    if (_FPressedButton = HTMINBUTTON) and (_FHotButton = HTMINBUTTON) then
      FButtonState := twMinButtonPushed
    else if _FHotButton = HTMINBUTTON then
      FButtonState := twMinButtonHot
    else
      if _FFormActive then
        FButtonState := twMinButtonNormal
      else
        FButtonState := twMinButtonDisabled;

    LDetails := StyleServices.GetElementDetails(FButtonState);

    if not StyleServices.GetElementContentRect(0, LDetails, DrawRect, ButtonRect) then
      ButtonRect := Rect(0, 0, 0, 0);
    if ButtonRect.Width > 0 then
      StyleServices.DrawElement(CaptionBuffer.Canvas.Handle, LDetails, ButtonRect);
    if ButtonRect.Left > 0 then TextRect.Right := ButtonRect.Left;
    _FMinButtonRect := ButtonRect;
  end;

  if (biHelp in TCustomFormHack(Form).BorderIcons) and (biSystemMenu in TCustomFormHack(Form).BorderIcons) and
     ((not (biMaximize in TCustomFormHack(Form).BorderIcons) and
     not (biMinimize in TCustomFormHack(Form).BorderIcons)) or (Form.BorderStyle = bsDialog))
  then
  begin
    if (_FPressedButton = HTHELP) and (_FHotButton = HTHELP) then
      FButtonState := twHelpButtonPushed
    else if _FHotButton = HTHELP then
      FButtonState := twHelpButtonHot
    else
    if _FFormActive then
      FButtonState := twHelpButtonNormal
    else
      FButtonState := twHelpButtonDisabled;
    LDetails := StyleServices.GetElementDetails(FButtonState);

    if not StyleServices.GetElementContentRect(0, LDetails, DrawRect, ButtonRect) then
      ButtonRect := Rect(0, 0, 0, 0);
    if ButtonRect.Width > 0 then
      StyleServices.DrawElement(CaptionBuffer.Canvas.Handle, LDetails, ButtonRect);

    if ButtonRect.Left > 0 then
      TextRect.Right := ButtonRect.Left;
    _FHelpButtonRect := ButtonRect;
  end;

  {draw text}
  TextFormat := [tfLeft, tfSingleLine, tfVerticalCenter];
  if Control.UseRightToLeftReading then
    Include(TextFormat, tfRtlReading);

  LText := Text;
  StyleServices.DrawText(CaptionBuffer.Canvas.Handle, CaptionDetails, LText, TextRect, TextFormat);
  _FCaptionRect := TextRect;

  {draw caption buffer}

  Canvas.Draw(0, 0, CaptionBuffer);
  CaptionBuffer.Free;

  {draw menubar}
  MainMenuBarHookPaint(Canvas);

  {draw left border}
  DrawRect := Rect(0, R.Top, R.Left, _FHeight - R.Bottom);
  if DrawRect.Bottom - DrawRect.Top > 0 then
    //use a color?
    if FNCSettings.UseColor then
    begin
      Canvas.Brush.Color:=FNCSettings.Color;
      Canvas.FillRect(DrawRect);
    end
    else
    begin
      if (DrawRect.Height<=FNCSettings.BitMap.Height) and (DrawRect.Width<=FNCSettings.BitMap.Width)  then
        Canvas.CopyRect(DrawRect,FNCSettings.Bitmap.Canvas,DrawRect)
      else
        Canvas.StretchDraw(DrawRect, FNCSettings.BitMap);
    end;

  {draw right border}
  DrawRect := Rect(_FWidth - R.Right, R.Top, _FWidth, _FHeight - R.Bottom);

  if DrawRect.Bottom - DrawRect.Top > 0 then
    //use a color?
    if FNCSettings.UseColor then
    begin
      Canvas.Brush.Color:=FNCSettings.Color;
      Canvas.FillRect(DrawRect);
    end
    else
    begin
      if (DrawRect.Height<=FNCSettings.BitMap.Height) and (Control.Width<=FNCSettings.BitMap.Width)  then
        Canvas.CopyRect(DrawRect,FNCSettings.Bitmap.Canvas,DrawRect)
      else
        Canvas.StretchDraw(DrawRect, FNCSettings.BitMap);
    end;

  {draw Bottom border}
  DrawRect := Rect(0, _FHeight - R.Bottom, _FWidth, _FHeight);

  if DrawRect.Bottom - DrawRect.Top > 0 then
    //use a color?
    if FNCSettings.UseColor then
    begin
      Canvas.Brush.Color:=FNCSettings.Color;
      Canvas.FillRect(DrawRect);
    end
    else
    begin
      if (DrawRect.Height<=FNCSettings.BitMap.Height) and (Control.Width<=FNCSettings.BitMap.Width)  then
        Canvas.CopyRect(DrawRect,FNCSettings.Bitmap.Canvas,DrawRect)
      else
      begin
        SrcBackRect.Left:=0;
        SrcBackRect.Top:=0;
        SrcBackRect.Width:=DrawRect.Width;
        SrcBackRect.Height:=DrawRect.Height;
        SrcBackRect.SetLocation(FNCSettings.BitMap.Width-DrawRect.Width, 0);
        Canvas.CopyRect(DrawRect, FNCSettings.BitMap.Canvas,SrcBackRect);
      end;
    end;
end;

And the result is

Using a custom color in the non client area

Using a custom image in the non client area

Putting it all together

Finally if you mix both methods (the background and the non client area) you can get very nice results

Using the class

The full source code of the TFormStyleHookBackround class is available here and is part of the vcl style utils project. to use it just include a reference to the Vcl.Styles.FormStyleHooks unit in your project and register the style hook like so.

  TStyleManager.Engine.RegisterStyleHook(TFrmMain, TFormStyleHookBackround);

To modify the background image of the form, use this code

  TFormStyleHookBackround.BackGroundSettings.UseImage := True;
  TFormStyleHookBackround.BackGroundSettings.ImageLocation := 'image.png'; //set the location of the image

To modify the background color of the form, use this code

  TFormStyleHookBackround.BackGroundSettings.UseColor := True;
  TFormStyleHookBackround.BackGroundSettings.Color := clRed;//set the colot

After of modify background color or image you must repaint the form sending the WM_PAINT message

Check this sample

Var
  LIndex: Integer;
begin
  for LIndex := 0 to ComponentCount - 1 do
    if Components[LIndex] is TWinControl then
    begin
      TWinControl(Components[LIndex]).Invalidate;
      TWinControl(Components[LIndex]).Perform(WM_PAINT, 0, 0);
    end;

  Self.Invalidate;
  Self.Perform(WM_PAINT, 0, 0);
end;

To customize the color of the non client area of the form use this code

  TFormStyleHookBackround.NCSettings.UseColor:= True;
  TFormStyleHookBackround.NCSettings.Color:= clGreen; //set the color

To assign an image to the non client area of the form use this code

  TFormStyleHookBackround.NCSettings.UseImage := True;
  TFormStyleHookBackround.NCSettings.ImageLocation := 'image.png'; //set the location of the image

After of modify color or image of the non client area you must repaint the NC using the WM_NCPAINT message

SendMessage(Handle, WM_NCPAINT, 0, 0);

Download the demo application (binaries) from here.


17 Comments

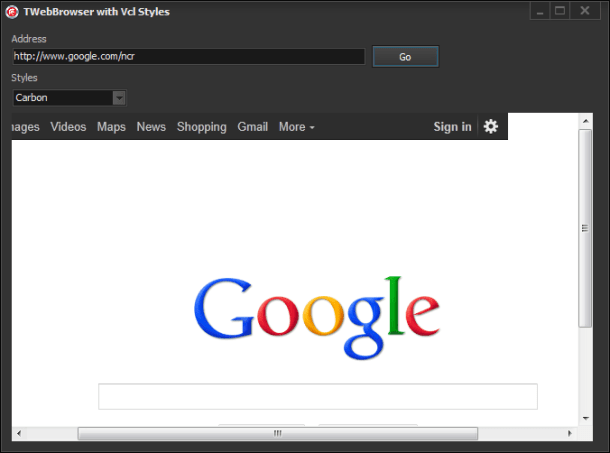

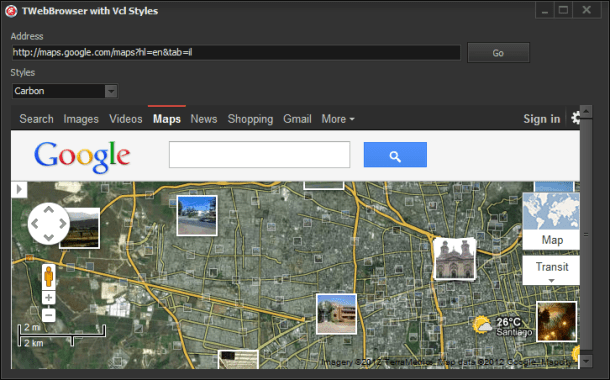

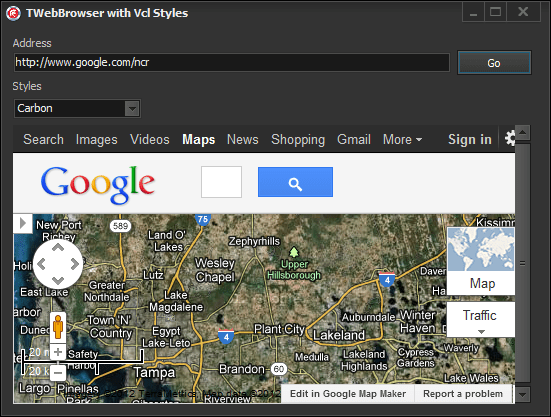

Delphi VCL Styles and TWebBrowser, source code released.

First I want to thank you, for the great feedback of my last post, all your comments and issue reports were very useful.

Motivation

While I was working on my favorite personal project And I realized which the TWebBrowser embedded in one of my forms doesn’t look very nice when the VCL Styles are enabled. So I decide write a fix.

My main goal was skin the scrollbars of the TWebBrowser component which by default uses the native windows look and feel.

This task involve many challenges like determine which WebBrowser events modify the position and visibility of the scrollbars, get the bounds of the original scrollbars, paint the skinned scrollbars, scroll the WebBrowser control, and so on. So I will try to explain briefly how was done.

The work begin

The first task was hook the TWebBrowser component to check which events and windows messages of the TWebBrowser modify the scrollbars visibility and position. So after of write a little helper application to do this, was determined that the events are :

  • OnDocumentComplete
  • OnNavigateComplete2
  • OnBeforeNavigate2
  • OnCommandStateChange
  • OnProgressChange

And also the WMSIZE message.

The events

In order to intercept these TWebbrowser events we can’t assign a event handler directly because these will not be fired if the same events are assigned by the user. So the solution was override the InvokeEvent method which is part of the TOleControl control (and which is the parent class of the TWebbrowser component).

Here’s how it looks the overridden InvokeEvent method

procedure TVclStylesWebBrowser.InvokeEvent(DispID: TDispID; var Params: TDispParams);
var
  ArgCount  : Integer;
  LVarArray : Array of OleVariant;
  LIndex    : Integer;
begin
  inherited; //call the original implementation of InvokeEvent
  ArgCount := Params.cArgs;
  SetLength(LVarArray, ArgCount);
  //store the paramaters in an variant array for an more easy access to the values
  for LIndex := Low(LVarArray) to High(LVarArray) do
    LVarArray[High(LVarArray)-LIndex] := OleVariant(TDispParams(Params).rgvarg^[LIndex]);

  //call the private impkemenation of each event
  case DispID of
    252: DoNavigateComplete2(Self,
                              LVarArray[0] {const IDispatch},
                              LVarArray[1] {const OleVariant});

    259: DoDocumentComplete(Self,
                             LVarArray[0] {const IDispatch},
                             LVarArray[1] {const OleVariant});

    250: DoBeforeNavigate2(Self,
                            LVarArray[0] {const IDispatch},
                            LVarArray[1] {const OleVariant},
                            LVarArray[2] {const OleVariant},
                            LVarArray[3] {const OleVariant},
                            LVarArray[4] {const OleVariant},
                            LVarArray[5] {const OleVariant},
                            WordBool((TVarData(LVarArray[6]).VPointer)^) {var WordBool});

    105:DoCommandStateChange(Self,
                               LVarArray[0] {Integer},
                               LVarArray[1] {WordBool});

    108:DoProgressChange(Self,
                           LVarArray[0] {Integer},
                           LVarArray[1] {Integer});

  end;

  SetLength(LVarArray, 0);
end;

Additionally each local event implementation call the ResizeScrollBars method to change the visibility of the scrollbars and calculate the current position

procedure TVclStylesWebBrowser.DoBeforeNavigate2(Sender: TObject; const pDisp: IDispatch; const URL, Flags, TargetFrameName, PostData, Headers: OleVariant; var Cancel: WordBool);
begin
  ResizeScrollBars;
end;

procedure TVclStylesWebBrowser.DoProgressChange(Sender: TObject; Progress,ProgressMax: Integer);
begin
  ResizeScrollBars;
end;

procedure TVclStylesWebBrowser.DoDocumentComplete(Sender: TObject;const pDisp: IDispatch; const URL: OleVariant);
begin
  ResizeScrollBars;
end;

procedure TVclStylesWebBrowser.DoNavigateComplete2(Sender: TObject;const pDisp:IDispatch;const URL: OleVariant);
begin
  ResizeScrollBars;
end;

Also we need to call the same method when the WM_SIZE message arrives.

procedure TVclStylesWebBrowser.WMSIZE(var Message: TWMSIZE);
begin
  inherited;
  ResizeScrollBars;
end;

The Scrollbars

After of that we need to paint the new Scrollbars using two TScrollBar components (Horizontal and Vertical), these controls are not draw directly over the Twebbrowser canvas rather, they are painted over a TWinControl which is a container for these controls, this container overlaps the original (native) scrollbars, also we need implement WMEraseBkgnd message to use the vcl styles color to fill the background of the container.

This is the definition of the private TWinContainer class.

  TVclStylesWebBrowser = class(SHDocVw.TWebBrowser, IDocHostUIHandler, IDocHostShowUI, IOleCommandTarget)
  strict private
    type
      TWinContainer = class(TWinControl)
        procedure WMEraseBkgnd(var Msg: TWMEraseBkgnd); message WM_ERASEBKGND;
      end;

This is the implementation of the WMEraseBkgnd message

procedure TVclStylesWebBrowser.TWinContainer.WMEraseBkgnd(var Msg: TWMEraseBkgnd);
var
  Details: TThemedElementDetails;
  LCanvas: TCanvas;
begin
  LCanvas := TCanvas.Create;
  try
    LCanvas.Handle := Msg.DC;
    Details.Element := teWindow;
    Details.Part := 0;
    StyleServices.DrawElement(LCanvas.Handle, Details, ClientRect);
  finally
    LCanvas.Free;
  end;
end;

And this is the code of how the TScrollBar components are created

constructor TVclStylesWebBrowser.Create(AOwner: TComponent);
begin
  inherited;
  //Get the scrollbars sizes
  LSM_CXHTHUMB:=GetSystemMetrics(SM_CXHTHUMB);
  LSM_CYVTHUMB:=GetSystemMetrics(SM_CYVTHUMB);

  //set the containers to nil
  VScrollBarContainer := nil;
  HScrollBarContainer := nil;

  //create the containers
  ScrollCornerContainer := TWinContainer.Create(Self);
  ScrollCornerContainer.Visible := False;

  //create the vertical scroll bar
  VScrollBarContainer := TWinContainer.Create(Self);
  VScrollBarContainer.Visible := True;
  VScrollBar := TScrollBar.Create(Self);
  VScrollBar.Parent   := VScrollBarContainer;
  VScrollBar.Kind     := sbVertical;
  VScrollBar.Visible  := True;
  VScrollBar.Align    := alClient;
  VScrollBar.OnChange := VScrollChange;
  VScrollBar.Enabled  := False;

  //create the horizontal scroll bar
  HScrollBarContainer := TWinContainer.Create(Self);
  HScrollBarContainer.Visible := False;
  HScrollBar := TScrollBar.Create(Self);
  HScrollBar.Parent   := HScrollBarContainer;
  HScrollBar.Visible  := True;
  HScrollBar.Align    := alClient;
  HScrollBar.OnChange := HScrollChange;
end;

As final step of this stage we need handle CM_VISIBLECHANGED message to hide or show the new scrollbars.

procedure TVclStylesWebBrowser.CMVisibleChanged(var MSg: TMessage);
begin
  inherited ;
  VScrollBarContainer.Visible   := Self.Visible;
  HScrollBarContainer.Visible   := Self.Visible;
  ScrollCornerContainer.Visible := Self.Visible;
end;

The ResizeScrollBars method

As you see in some of the above code a call to the ResizeScrollBars method is made, well this is one of the key points of the TVclStylesWebBrowser class, this method change the visibility , recalculate the sizes of the scrollbars and scroll the TWebBrowser.

Take a look to the method implementation

procedure TVclStylesWebBrowser.ResizeScrollBars;
var
  StateVisible   : Boolean;
  DocClientWidth : Integer;
  ScrollWidth    : Integer;
  ScrollHeight   : Integer;
  HPageSize      : Integer;
  VPageSize      : Integer;
  LRect          : TRect;
  IEHWND         : WinApi.Windows.HWND;
begin
  IEHWND:=GetIEHandle;
  //some safety checks before to continue
  if (IEHWND=0) or (VScrollBarContainer = nil) or (HScrollBarContainer = nil) then Exit;

  if not VScrollBarContainer.Visible then
   VScrollBarContainer.Visible := True;

  //the loaded page has body?
  if (Document <> nil) and (IHtmldocument2(Document).Body <> nil) then
   begin
     //get the client width
     DocClientWidth := OleVariant(Document).documentElement.ClientWidth;
     //if the docuemnt has a width larger than 0
     if (DocClientWidth > 0) then
     begin
       //Get the Scroll Width
       ScrollWidth:=OleVariant(Document).DocumentElement.scrollWidth;
       if (HScrollBar.Max<>ScrollWidth) and (ScrollWidth>=HScrollBar.PageSize) and (ScrollWidth>=HScrollBar.Min) then
         HScrollBar.Max := ScrollWidth;

       //Get the Scroll Height
       ScrollHeight:=OleVariant(Document).DocumentElement.scrollHeight;
       if (VScrollBar.Max<>ScrollHeight) and (ScrollHeight>=VScrollBar.PageSize) and (ScrollHeight>=VScrollBar.Min) then
         VScrollBar.Max := ScrollHeight;
     end
     else
     //use the body values
     begin
       //Get the Scroll Width
       ScrollWidth  := IHtmldocument2(Document).Body.getAttribute('ScrollWidth', 0);
       if (HScrollBar.Max<>ScrollWidth) and (ScrollWidth>=HScrollBar.PageSize) and (ScrollWidth>=HScrollBar.Min) then
         HScrollBar.Max := ScrollWidth;

       //Get the Scroll Height
       ScrollHeight:=IHtmldocument2(Document).Body.getAttribute('ScrollHeight', 0);
       if (VScrollBar.Max<>ScrollHeight) and (ScrollHeight>=VScrollBar.PageSize) and (ScrollHeight>=VScrollBar.Min) then
         VScrollBar.Max := ScrollHeight;
     end;

     //Get the height of the page
     if (HScrollBar.Max > Self.Width - LSM_CXHTHUMB) and(HScrollBar.Max > 0) and (HScrollBar.Max <> Self.Width) then
       VPageSize := Self.Height - LSM_CYVTHUMB
     else
       VPageSize := Self.Height;

     //Set the position of the vertical scrollbar
     VScrollBar.PageSize:=VPageSize;
     VScrollBar.SetParams(VScrollBar.Position, 0, VScrollBar.Max);
     VScrollBar.LargeChange := VScrollBar.PageSize;

     //Set the position of the horizontal scrollbar
     HPageSize := Self.Width - LSM_CXHTHUMB;
     HScrollBar.PageSize:=HPageSize;
     HScrollBar.SetParams(HScrollBar.Position, 0, HScrollBar.Max);
     HScrollBar.LargeChange := HScrollBar.PageSize;

     VScrollBar.Enabled := (VPageSize < VScrollBar.Max) and(VScrollBar.PageSize > 0) and (VScrollBar.Max > 0) and (VScrollBar.Max <> Self.Height);

     StateVisible := HScrollBarContainer.Visible;

     //set the visibility of the containers
     if IsWindow(HScrollBarContainer.Handle) then
      HScrollBarContainer.Visible := (HPageSize < HScrollBar.Max) and (HScrollBar.PageSize < HScrollBar.Max) and (HScrollBar.Max > 0) and (HScrollBar.Max <> Self.Width);
     if not StateVisible and HScrollBarContainer.Visible then
       HScrollBarContainer.BringToFront;
   end;

   UpdateContainers;
end;

Additional elements

Besides of the scrollbars we need to make small changes to the aspect of the TWebBrowser , for example remove the 3D border, this is made via the IDocHostUIHandler interface and the GetHostInfo function.

function TVclStylesWebBrowser.GetHostInfo(var pInfo: TDocHostUIInfo): HRESULT;
var
  BodyCss   : string;
  ColorHtml : string;
  LColor    : TColor;
begin
  LColor:=StyleServices.GetSystemColor(clWindow);
  ColorHtml:= Format('#%.2x%.2x%.2x',[GetRValue(LColor), GetGValue(LColor), GetBValue(LColor)]) ;
  BodyCss:=Format('BODY {background-color:%s}',[ColorHtml]);

  pInfo.cbSize := SizeOf(pInfo);
  pInfo.dwFlags := 0;
  pInfo.dwFlags := pInfo.dwFlags or DOCHOSTUIFLAG_NO3DBORDER;//disable 3d border
  pInfo.dwFlags := pInfo.dwFlags or DOCHOSTUIFLAG_THEME;//use themes
  if FUseVClStyleBackGroundColor then
  pInfo.pchHostCss :=PWideChar(BodyCss); //use the vcl styles color as background color (this optional and disabled by default)
  Result := S_OK;
  ResizeScrollBars;
end;

A Final touch

While I was wrote this class I decide add two new options to customize the way how the JScript alert messages and Javascript errors are shown, using the IOleCommandTarget and IDocHostShowUI interfaces.

Implementing the IDocHostShowUI.ShowMessage function you can replace the Windows Internet Explorer message box (which is used for Microsoft JScript alerts among other things).

function TVclStylesWebBrowser.ShowMessage(hwnd: THandle; lpstrText,
  lpstrCaption: POLESTR; dwType: Integer; lpstrHelpFile: POLESTR;
  dwHelpContext: Integer; var plResult: LRESULT): HRESULT;
var
 DlgType: TMsgDlgType;
 Buttons: TMsgDlgButtons;
begin
  Result := E_NOTIMPL;
  if not FCustomizeStdDialogs then exit;

   DlgType:=mtInformation;
  if ((dwType and MB_ICONMASK)=MB_ICONHAND) or ((dwType and MB_ICONMASK)=MB_USERICON) then
   DlgType:=mtCustom
  else
  if (dwType and MB_ICONMASK)=MB_ICONWARNING then
   DlgType:=mtWarning
  else
  if (dwType and MB_ICONMASK)=MB_ICONQUESTION then
   DlgType:=mtConfirmation
  else
  if (dwType and MB_ICONMASK)=MB_ICONEXCLAMATION then
   DlgType:=mtInformation;

  case dwType and MB_TYPEMASK of
    MB_OK:Buttons:=[mbOK];
    MB_OKCANCEL:Buttons:=[mbOK,mbCancel];
    MB_ABORTRETRYIGNORE:Buttons:=[mbAbort,mbRetry,mbIgnore];
    MB_YESNOCANCEL:Buttons:=[mbYes,mbNo,mbCancel];
    MB_YESNO:Buttons:=[mbYes,mbNo];
    MB_RETRYCANCEL:Buttons:=[mbRetry,mbCancel];
  else
    Buttons:=[mbOK];
  end;

  //use the vcl MessageDlg function to show an skinned message box.
  plResult:= MessageDlg(lpstrText, DlgType, Buttons, dwHelpContext);
  Result := S_OK;
end;

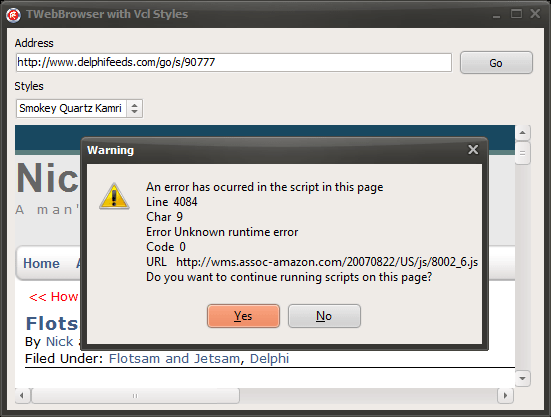

Now to customize the message box which shows the javascript errors we must implement the IOleCommandTarget.Exec function (check this article for more info How to handle script errors as a WebBrowser control host)

function TVclStylesWebBrowser.Exec(CmdGroup: PGUID; nCmdID, nCmdexecopt: DWORD;
  const vaIn: OleVariant; var vaOut: OleVariant): HResult;
const
  CGID_DocHostCommandHandler: TGUID = (D1: $F38BC242; D2: $B950; D3: $11D1; D4: ($89, $18, $00, $C0, $4F, $C2, $C8, $36));
var
  LHTMLEventObj : IHTMLEventObj;
  LHTMLWindow2  : IHTMLWindow2;
  LHTMLDocument2: IHTMLDocument2;
  LUnknown      : IUnknown;
  Msg           : string;

  function GetPropertyValue(const PropName: WideString): OleVariant;
  var
    LParams    : TDispParams;
    LDispIDs   : Integer;
    Status     : Integer;
    ExcepInfo  : TExcepInfo;
    LName      : PWideChar;
  begin
    ZeroMemory(@LParams, SizeOf(LParams));
    LName := PWideChar(PropName);
    Status := LHTMLEventObj.GetIDsOfNames(GUID_NULL, @LName, 1, LOCALE_SYSTEM_DEFAULT, @LDispIDs);
    if Status = 0 then
    begin
      Status := LHTMLEventObj.Invoke(LDispIDs, GUID_NULL, LOCALE_SYSTEM_DEFAULT, DISPATCH_PROPERTYGET, LParams, @Result, @ExcepInfo, nil);
      if Status <> 0 then DispatchInvokeError(Status, ExcepInfo);
    end
    else
    if Status = DISP_E_UNKNOWNNAME then raise EOleError.CreateFmt('Property "%s" is not supported.', [PropName])
    else
      OleCheck(Status);
  end;

begin
 Result:=S_OK;
   if (CmdGroup <> nil) and IsEqualGuid(CmdGroup^, CGID_DocHostCommandHandler) then
     case nCmdID of
        //intercept the JScript error messages
        OLECMDID_SHOWSCRIPTERROR:
        begin
          if not FCustomizeJSErrorDialog then exit;
          LUnknown := IUnknown(TVarData(vaIn).VUnknown);
          //get an interface to the document which raise the message
          if Succeeded(LUnknown.QueryInterface(IID_IHTMLDocument2, LHTMLDocument2)) then
          begin
            LHTMLWindow2   := LHTMLDocument2.Get_parentWindow;
            if LHTMLWindow2<>nil then
            begin
              LHTMLEventObj := LHTMLWindow2.Get_event;
              if LHTMLEventObj <> nil then
              begin
               //buil the message to show
               Msg:='An error has ocurred in the script in this page'+sLineBreak+
                    'Line  %s'+sLineBreak+
                    'Char  %s'+sLineBreak+
                    'Error %s'+sLineBreak+
                    'Code  %s'+sLineBreak+
                    'URL   %s'+sLineBreak+
                    'Do you want to continue running scripts on this page?';
               Msg:=Format(Msg,[GetPropertyValue('errorline'), GetPropertyValue('errorCharacter'), GetPropertyValue('errorMessage'), GetPropertyValue('errorCode'), GetPropertyValue('errorUrl')]);
               if MessageDlg(Msg,mtWarning,[mbYes, mbNo],0) =mrYes then
                vaOut := True
               else
                vaOut := False;
               Result:=S_OK;
              end;
            end;
          end;
        end;
     else
        Result:=OLECMDERR_E_NOTSUPPORTED;
     end
   else
     Result:=OLECMDERR_E_UNKNOWNGROUP;
end;

Note : In the end of this entry you can find a very useful collection of resources to customize a WebBrowser control.

How it works?

First the class introduced in this article is not a Vcl Style Hook, because exist some technical limitations to accomplish this, among them is the fact that the TWebBrowser control must implement additional interfaces (IDocHostUIHandler, IDocHostShowUI, IOleCommandTarget), so is necesary modify the original TWebBrowser component.

The recommended way to use the TVclStylesWebBrowser class is add the Vcl.Styles.WebBrowser unit to the uses clause is some point after of the SHDocVw unit and then use an interposer class like so :

TWebBrowser=class(TVclStylesWebBrowser);

Finally, How it looks?

Source Code

The full source code of this article is part of the VCL Styles Utils project, you can check the Vcl.Styles.WebBrowser unit here

Recommended resources about WebBrowser Customization

A final words

This is part of an open source project, so feel free to post any issue in the issue page of the project, as well if you want participate improving the code or adding new features, let me now.
