Using the Network List Manager (NLM) API from Delphi

Network-Internet-Connection-iconThe Network List Manager (NLM) API (introduced on Windows Vista) allows you to retrieve a list of available connections and properties of each network .Also the  NLM API  support notifications (events) about the availability of new network connections or changes to existing network connections. This API is useful for  filter networks, based on his attributes and signatures. Also  you can use this API in your own  Application to adjust their logic depending on: which network they are connected to; or what the network properties are.



Ok, So the first step to use this API from Delphi is import the Network List Manager Type Library (C:\WINDOWS\system32\netprofm.dll) from the option Component-> Import Component as is show below.

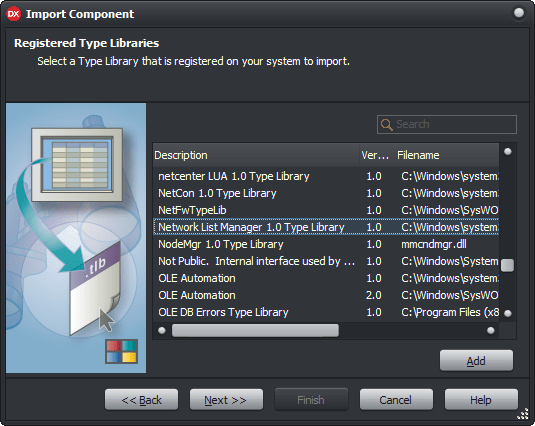

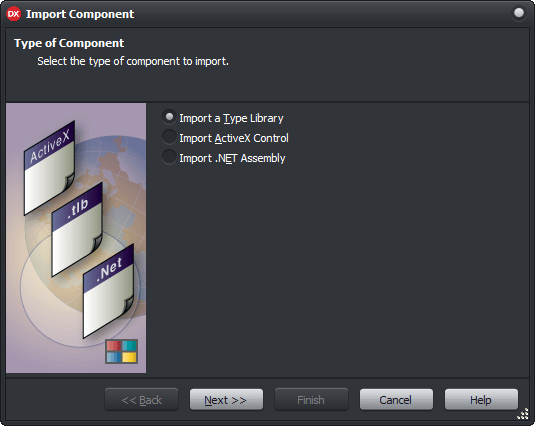

Wizard1

Wizard2

After of this the NETWORKLIST_TLB unit will be created containing all the Interfaces, Types and Enumerations of the NLM API.

Note: Depending of  your Windows version the content of the imported type library can change, because some additional Interfaces and types was added in Windows 8.

INetworkListManager

The INetworkListManager is the main interface to access the methods to perform  NLM API functions Like enumerate Networks, Connections and check the overall connectivity state of the current machine.

This is the definition of the INetworkListManager interface.

  INetworkListManager = interface(IDispatch)
    ['{DCB00000-570F-4A9B-8D69-199FDBA5723B}']
    function GetNetworks(Flags: NLM_ENUM_NETWORK): IEnumNetworks; safecall;
    function GetNetwork(gdNetworkId: TGUID): INetwork; safecall;
    function GetNetworkConnections: IEnumNetworkConnections; safecall;
    function GetNetworkConnection(gdNetworkConnectionId: TGUID): INetworkConnection; safecall;
    function Get_IsConnectedToInternet: WordBool; safecall;
    function Get_IsConnected: WordBool; safecall;
    function GetConnectivity: NLM_CONNECTIVITY; safecall;
    procedure SetSimulatedProfileInfo(var pSimulatedInfo: NLM_SIMULATED_PROFILE_INFO); safecall; //Introduced on Windows 8.1
    procedure ClearSimulatedProfileInfo; safecall; //Introduced on Windows 8.1
    property IsConnectedToInternet: WordBool read Get_IsConnectedToInternet;
    property IsConnected: WordBool read Get_IsConnected;
  end;

In order to access to this interface you must declare a INetworkListManager variable and call the CoNetworkListManager.Create; method to get an instance to such Interface.

Check the next sample console application which shows the current connectivity of the machine and if the internet connection is available.

{$APPTYPE CONSOLE}

uses
  SysUtils,
  ActiveX,
  ComObj,
  Windows,
  NETWORKLIST_TLB in 'NETWORKLIST_TLB.pas';


//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370795(v=vs.85).aspx
function GetNetworkConnectivity(Connectivity : NLM_CONNECTIVITY) : string;
begin
 Result:='';
    if NLM_CONNECTIVITY_DISCONNECTED and Connectivity <> 0 then  Result := Result+ 'Disconnected, ';
    if NLM_CONNECTIVITY_IPV4_NOTRAFFIC and Connectivity <> 0 then  Result := Result+ 'Connected but not ipv4 traffic, ';
    if NLM_CONNECTIVITY_IPV6_NOTRAFFIC  and Connectivity <> 0 then  Result := Result+  'Connected but not ipv6 traffic, ';
    if NLM_CONNECTIVITY_IPV4_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv4, ';
    if NLM_CONNECTIVITY_IPV4_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+  'LocalNetwork ipv4, ';
    if NLM_CONNECTIVITY_IPV4_INTERNET  and Connectivity <> 0 then  Result := Result+  'Internet ipv4, ';
    if NLM_CONNECTIVITY_IPV6_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv6, ';
    if NLM_CONNECTIVITY_IPV6_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+ 'LocalNetwork ipv6, ';
    if NLM_CONNECTIVITY_IPV6_INTERNET  and Connectivity <> 0 then  Result := Result+'Internet ipv6, ';

    Result:= StringReplace('['+Result+']', ', ]', ']', [rfReplaceAll]);
end;


procedure GetNetworkListManagerInfo;
var
  NetworkListManager: INetworkListManager;
begin
  NetworkListManager := CoNetworkListManager.Create;
  Writeln(Format('Connected       : %s', [boolToStr(NetworkListManager.IsConnected, True)]));
  Writeln(Format('Internet        : %s', [boolToStr(NetworkListManager.IsConnectedToInternet, True)]));
  Writeln(Format('Connectivity    : %s', [GetNetworkConnectivity(NetworkListManager.GetConnectivity)]));
end;

begin
 try
  //Check is Windows Vista at least
  if TOSVersion.Check(6) then
   begin
      CoInitialize(nil);
      try
        GetNetworkListManagerInfo;
      finally
        CoUninitialize;
      end;
   end
   else
   Writeln('This windows version doesn''t support the NLM API');
 except
    on E:EOleException do
        Writeln(Format('EOleException %s %x', [E.Message, E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Enumerating Connections

The NLM API allow you to enumerate network connections using the INetworkListManager.GetNetworkConnections method, this function returns an instance to the IEnumNetworkConnections interface that enumerates all network connections on the machine, each element returned by the IEnumNetworkConnections.Next method represents a INetworkConnection object.

  INetworkConnection = interface(IDispatch)
    ['{DCB00005-570F-4A9B-8D69-199FDBA5723B}']
    function GetNetwork: INetwork; safecall;
    function Get_IsConnectedToInternet: WordBool; safecall;
    function Get_IsConnected: WordBool; safecall;
    function GetConnectivity: NLM_CONNECTIVITY; safecall;
    function GetConnectionId: TGUID; safecall;
    function GetAdapterId: TGUID; safecall;
    function GetDomainType: NLM_DOMAIN_TYPE; safecall;
    property IsConnectedToInternet: WordBool read Get_IsConnectedToInternet;
    property IsConnected: WordBool read Get_IsConnected;
  end;

Check the next sample console application which shows how enumerate the connections with his connectivity, domain type, network adapters associated and so on.

{$APPTYPE CONSOLE}

uses
  SysUtils,
  ActiveX,
  ComObj,
  Windows,
  NETWORKLIST_TLB in 'NETWORKLIST_TLB.pas';


//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370796(v=vs.85).aspx
function GetNetworkDomainType(DomainType : NLM_DOMAIN_TYPE) : string;
begin
 Result:='';
  case DomainType of
    NLM_DOMAIN_TYPE_NON_DOMAIN_NETWORK   : Result := 'Non Domain Network'; //The Network is not an Active Directory Network
    NLM_DOMAIN_TYPE_DOMAIN_NETWORK       : Result := 'Domain Network';//The Network is an Active Directory Network, but this machine is not authenticated against it.
    NLM_DOMAIN_TYPE_DOMAIN_AUTHENTICATED : Result := 'Domain Network Authenticated';//The Network is an Active Directory Network, and this machine is authenticated against it.
  end;
end;


//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370795(v=vs.85).aspx
function GetNetworkConnectivity(Connectivity : NLM_CONNECTIVITY) : string;
begin
 Result:='';
    if NLM_CONNECTIVITY_DISCONNECTED and Connectivity <> 0 then  Result := Result+ 'Disconnected, ';
    if NLM_CONNECTIVITY_IPV4_NOTRAFFIC and Connectivity <> 0 then  Result := Result+ 'Connected but not ipv4 traffic, ';
    if NLM_CONNECTIVITY_IPV6_NOTRAFFIC  and Connectivity <> 0 then  Result := Result+  'Connected but not ipv6 traffic, ';
    if NLM_CONNECTIVITY_IPV4_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv4, ';
    if NLM_CONNECTIVITY_IPV4_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+  'LocalNetwork ipv4, ';
    if NLM_CONNECTIVITY_IPV4_INTERNET  and Connectivity <> 0 then  Result := Result+  'Internet ipv4, ';
    if NLM_CONNECTIVITY_IPV6_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv6, ';
    if NLM_CONNECTIVITY_IPV6_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+ 'LocalNetwork ipv6, ';
    if NLM_CONNECTIVITY_IPV6_INTERNET  and Connectivity <> 0 then  Result := Result+'Internet ipv6, ';

    Result:= StringReplace('['+Result+']', ', ]', ']', [rfReplaceAll]);
end;


procedure GetConnections;
var
  NetworkListManager: INetworkListManager;
  EnumNetworkConnections: IEnumNetworkConnections;
  NetworkConnection : INetworkConnection;
  pceltFetched: ULONG;
begin
   NetworkListManager := CoNetworkListManager.Create;
   EnumNetworkConnections :=  NetworkListManager.GetNetworkConnections();
   while true do
   begin
     EnumNetworkConnections.Next(1, NetworkConnection, pceltFetched);
     if (pceltFetched>0)  then
     begin
        Writeln(Format('Adapter Id      : %s', [GuidToString(NetworkConnection.GetAdapterId)]));
        Writeln(Format('Connection Id   : %s', [GuidToString(NetworkConnection.GetConnectionId)]));
        Writeln(Format('Domain Type     : %s', [GetNetworkDomainType(NetworkConnection.GetDomainType)]));
        Writeln(Format('Connected       : %s', [boolToStr(NetworkConnection.IsConnected, True)]));
        Writeln(Format('Internet        : %s', [boolToStr(NetworkConnection.IsConnectedToInternet, True)]));
        Writeln(Format('Network         : %s', [NetworkConnection.GetNetwork.GetName]));
        Writeln(Format('Connectivity    : %s', [GetNetworkConnectivity(NetworkConnection.GetConnectivity)]));
     end
     else
     Break;
   end;
end;

begin
 try
   //Check is Windows Vista at least
   if TOSVersion.Check(6) then
   begin
      CoInitialize(nil);
      try
        GetConnections;
      finally
        CoUninitialize;
      end;
   end
   else
   Writeln('This windows version doesn''t support the NLM API');
 except
    on E:EOleException do
        Writeln(Format('EOleException %s %x', [E.Message,E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Enumerating Networks

For enumerate the networks available on the local machine you must use the INetworkListManager.GetNetworks method passing a valid NLM_ENUM_NETWORK value.

  • NLM_ENUM_NETWORK_CONNECTED Returns connected networks
  • NLM_ENUM_NETWORK_DISCONNECTED Returns disconnected networks
  • NLM_ENUM_NETWORK_ALL Returns connected and disconnected networks

from here you can gain access to several elements related to the network like Name, Description, Connectivity, Network Category and the local date and time when the network was created and connected.

Sample code to enumerate the networks using the NLM API

{$APPTYPE CONSOLE}

uses
  SysUtils,
  ActiveX,
  ComObj,
  Windows,
  NETWORKLIST_TLB in 'NETWORKLIST_TLB.pas';


//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370796(v=vs.85).aspx
function GetNetworkDomainType(DomainType : NLM_CONNECTIVITY) : string;
begin
 Result:='';
  case DomainType of
    NLM_DOMAIN_TYPE_NON_DOMAIN_NETWORK   : Result := 'Non Domain Network'; //The Network is not an Active Directory Network
    NLM_DOMAIN_TYPE_DOMAIN_NETWORK       : Result := 'Domain Network';//The Network is an Active Directory Network, but this machine is not authenticated against it.
    NLM_DOMAIN_TYPE_DOMAIN_AUTHENTICATED : Result := 'Domain Network Authenticated';//The Network is an Active Directory Network, and this machine is authenticated against it.
  end;
end;

function GetNetworkCategory(Category : NLM_NETWORK_CATEGORY) : string;
begin
 Result:='';
  case Category of
    NLM_NETWORK_CATEGORY_PUBLIC               : Result := 'Public';
    NLM_NETWORK_CATEGORY_PRIVATE              : Result := 'Private';
    NLM_NETWORK_CATEGORY_DOMAIN_AUTHENTICATED : Result := 'Authenticated';
  end;
end;

procedure GetNetworks;
var
  NetworkListManager: INetworkListManager;
  EnumNetworks: IEnumNetworks;

  EnumNetworksConnections: IEnumNetworkConnections;
  NetworkConnection : INetworkConnection;

  Network: INetwork;
  fetched, pceltFetched: ULONG;

  pdwLowDateTimeCreated: LongWord;
  pdwHighDateTimeCreated: LongWord;
  pdwLowDateTimeConnected: LongWord;
  pdwHighDateTimeConnected: LongWord;

  lpFileTime : TFileTime;
  lpSystemTime: TSystemTime;
  LDateTime : TDateTime;
begin
   NetworkListManager := CoNetworkListManager.Create;
   EnumNetworks :=  NetworkListManager.GetNetworks(NLM_ENUM_NETWORK_CONNECTED);
   while true do
   begin
     EnumNetworks.Next(1, Network, fetched);
     if (fetched>0)  then
     begin
       Writeln(Format('%s - %s', [Network.GetName, Network.GetDescription]));
       Writeln(Format('Network Id  : %s', [GuidToString(Network.GetNetworkId)]));
       Writeln(Format('Domain Type : %s', [GetNetworkDomainType(Network.GetDomainType)]));
       Writeln(Format('Category    : %s', [GetNetworkCategory(Network.GetCategory)]));

       //https://msdn.microsoft.com/en-us/library/windows/desktop/aa370787(v=vs.85).aspx
       Network.GetTimeCreatedAndConnected(pdwLowDateTimeCreated, pdwHighDateTimeCreated, pdwLowDateTimeConnected, pdwHighDateTimeConnected);

       lpFileTime.dwLowDateTime := pdwLowDateTimeCreated;
       lpFileTime.dwHighDateTime := pdwHighDateTimeCreated;
       if FileTimeToSystemTime(lpFileTime, lpSystemTime) then
       begin
          LDateTime := SystemTimeToDateTime(lpSystemTime);
          Writeln('Created         : '+FormatDateTime('dd/mm/yyyy hh:nn', LDateTime));
       end;

       lpFileTime.dwLowDateTime := pdwLowDateTimeConnected;
       lpFileTime.dwHighDateTime := pdwHighDateTimeConnected;
       if FileTimeToSystemTime(lpFileTime, lpSystemTime) then
       begin
          LDateTime := SystemTimeToDateTime(lpSystemTime);
          Writeln('Last Connection : '+FormatDateTime('dd/mm/yyyy hh:nn', LDateTime));
       end;

       Writeln(Format('Connected       : %s', [boolToStr(Network.IsConnected, True)]));
       Writeln(Format('Internet        : %s', [boolToStr(Network.IsConnectedToInternet, True)]));

         EnumNetworksConnections := Network.GetNetworkConnections();

         Writeln;
         Writeln('Connections');
         Writeln('-----------');
         while true do
         begin
            EnumNetworksConnections.Next(1, NetworkConnection, pceltFetched);
              if (pceltFetched>0)  then
              begin
                Writeln(Format('  Adapter Id    : %s', [GuidToString(NetworkConnection.GetAdapterId)]));
                Writeln(Format('  Connection Id : %s', [GuidToString(NetworkConnection.GetConnectionId)]));
              end
              else
              break;
         end;
       Writeln;
     end
     else
     Break;
   end;
end;

begin
 try
   //Check is Windows Vista at least
   if TOSVersion.Check(6) then
   begin
      CoInitialize(nil);
      try
        GetNetworks;
      finally
        CoUninitialize;
      end;
   end
   else
   Writeln('This windows version doesn''t support the NLM API');
 except
    on E:EOleException do
        Writeln(Format('EOleException %s %x', [E.Message,E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Events

The NML API exposes several events (notifications) that you Application must implements to get network related events. These callback functions that are called automatically when the respective events are raised.

These are the notifications interfaces available on the NLM API

Note : The next sample shows how subscribe to the INetworkEvents only. I will leave it as reader’s exercise the implementation of the another events.

The INetworkEvents interface can inform when a Network was added, deleted or modified. To receive the notifications related to these events you must inherit a class from this interface and implement the next methods.

  INetworkEvents = interface(IUnknown)
    ['{DCB00004-570F-4A9B-8D69-199FDBA5723B}']
    function NetworkAdded(networkId: TGUID): HResult; stdcall;
    function NetworkDeleted(networkId: TGUID): HResult; stdcall;
    function NetworkConnectivityChanged(networkId: TGUID; newConnectivity: NLM_CONNECTIVITY): HResult; stdcall;
    function NetworkPropertyChanged(networkId: TGUID; Flags: NLM_NETWORK_PROPERTY_CHANGE): HResult; stdcall;
  end;

then you need get an instance to the IConnectionPointContainer interface, after using the IConnectionPointContainer.FindConnectionPoint return a connection point for the interface and finally call the IConnectionPoint.Advise method to establish the connection with the event.

   NetworkListManager := CoNetworkListManager.Create;
    if Succeeded(NetworkListManager.QueryInterface(IID_IConnectionPointContainer, LConnectionPointContainer)) then
      if Succeeded(LConnectionPointContainer.FindConnectionPoint(IID_INetworkEvents, LConnectionPoint)) then
        LConnectionPoint.Advise(Self as IUnknown, dwCookie);

When you not longer need to use the event, you must to terminate the advisory connection previously established with the connection point using the IConnectionPoint.Unadvise method.

  if Succeeded(NetworkListManager.QueryInterface(IID_IConnectionPointContainer, LConnectionPointContainer)) then
    if Succeeded(LConnectionPointContainer.FindConnectionPoint(IID_INetworkEvents, LConnectionPoint)) then
    begin
      LConnectionPoint.Unadvise(dwCookie);
      LConnectionPoint := nil;
    end;

Check the next sample console application which implements the INetworkEvents interface.

{$APPTYPE CONSOLE}

uses
  Winapi.Windows,
  {$IF CompilerVersion > 18.5}
  Vcl.Forms,
  {$IFEND }
  System.SysUtils,
  Winapi.ActiveX,
  System.Win.ComObj,
  NETWORKLIST_TLB in 'NETWORKLIST_TLB.pas';

 type
  TNetworkEvents = class(TInterfacedObject, INetworkEvents)
  private
   NetworkListManager :  INetworkListManager;
   dwCookie : Integer;
  public
    function NetworkAdded(networkId: TGUID): HResult; stdcall;
    function NetworkDeleted(networkId: TGUID): HResult; stdcall;
    function NetworkConnectivityChanged(networkId: TGUID; newConnectivity: NLM_CONNECTIVITY): HResult; stdcall;
    function NetworkPropertyChanged(networkId: TGUID; Flags: NLM_NETWORK_PROPERTY_CHANGE): HResult; stdcall;
    constructor Create;
    procedure Start;
    procedure Stop;
  end;

//Detect when a key was pressed in the console window
function KeyPressed:Boolean;
var
  lpNumberOfEvents     : DWORD;
  lpBuffer             : TInputRecord;
  lpNumberOfEventsRead : DWORD;
  nStdHandle           : THandle;
begin
  Result:=false;
  nStdHandle := GetStdHandle(STD_INPUT_HANDLE);
  lpNumberOfEvents:=0;
  GetNumberOfConsoleInputEvents(nStdHandle, lpNumberOfEvents);
  if (lpNumberOfEvents<> 0) then
  begin
    PeekConsoleInput(nStdHandle, lpBuffer, 1, lpNumberOfEventsRead);
    if lpNumberOfEventsRead <> 0 then
    begin
      if lpBuffer.EventType = KEY_EVENT then
      begin
        if lpBuffer.Event.KeyEvent.bKeyDown then
          Result:=true
        else
          FlushConsoleInputBuffer(nStdHandle);
      end
      else
      FlushConsoleInputBuffer(nStdHandle);
    end;
  end;
end;

//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370795(v=vs.85).aspx
function GetNetworkConnectivity(Connectivity : NLM_CONNECTIVITY) : string;
begin
 Result:='';
    if NLM_CONNECTIVITY_DISCONNECTED and Connectivity <> 0 then  Result := Result+ 'Disconnected, ';
    if NLM_CONNECTIVITY_IPV4_NOTRAFFIC and Connectivity <> 0 then  Result := Result+ 'Connected but not ipv4 traffic, ';
    if NLM_CONNECTIVITY_IPV6_NOTRAFFIC  and Connectivity <> 0 then  Result := Result+  'Connected but not ipv6 traffic, ';
    if NLM_CONNECTIVITY_IPV4_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv4, ';
    if NLM_CONNECTIVITY_IPV4_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+  'LocalNetwork ipv4, ';
    if NLM_CONNECTIVITY_IPV4_INTERNET  and Connectivity <> 0 then  Result := Result+  'Internet ipv4, ';
    if NLM_CONNECTIVITY_IPV6_SUBNET  and Connectivity <> 0 then  Result := Result+  'Subnet ipv6, ';
    if NLM_CONNECTIVITY_IPV6_LOCALNETWORK  and Connectivity <> 0 then  Result := Result+ 'LocalNetwork ipv6, ';
    if NLM_CONNECTIVITY_IPV6_INTERNET  and Connectivity <> 0 then  Result := Result+'Internet ipv6, ';

    Result:= StringReplace('['+Result+']', ', ]', ']', [rfReplaceAll]);
end;

//https://msdn.microsoft.com/en-us/library/windows/desktop/aa370801(v=vs.85).aspx
function GetNetworkPropertyChange(PropertyChange : NLM_NETWORK_PROPERTY_CHANGE) : string;
begin
 Result:='';
    if NLM_NETWORK_PROPERTY_CHANGE_CONNECTION and PropertyChange <> 0 then  Result := Result+ 'Connection, ';
    if NLM_NETWORK_PROPERTY_CHANGE_DESCRIPTION and PropertyChange <> 0 then  Result := Result+ 'Description, ';
    if NLM_NETWORK_PROPERTY_CHANGE_NAME  and PropertyChange <> 0 then  Result := Result+  'Name, ';
    if NLM_NETWORK_PROPERTY_CHANGE_ICON  and PropertyChange <> 0 then  Result := Result+  'Icon, ';
    if NLM_NETWORK_PROPERTY_CHANGE_CATEGORY_VALUE  and PropertyChange <> 0 then  Result := Result+  'Category value, ';

    Result:= StringReplace('['+Result+']', ', ]', ']', [rfReplaceAll]);

end;

{ TNetworkEvents }
const
  IID_IConnectionPointContainer: TGUID = (
    D1:$B196B284;D2:$BAB4;D3:$101A;D4:($B6,$9C,$00,$AA,$00,$34,$1D,$07));

constructor TNetworkEvents.Create;
begin
  dwCookie := 0;
end;

function TNetworkEvents.NetworkAdded(networkId: TGUID): HResult;
begin
  Writeln(Format('Network Added : %s', [GuidToString(networkId)]));
  Result := S_OK;
end;

function TNetworkEvents.NetworkConnectivityChanged(networkId: TGUID;
  NewConnectivity: NLM_CONNECTIVITY): HResult;
begin
  Writeln(Format('Network Connectivity Changed : %s - %s', [GuidToString(networkId), GetNetworkConnectivity(NewConnectivity)]));
  Result := S_OK;
end;

function TNetworkEvents.NetworkDeleted(networkId: TGUID): HResult;
begin
  Writeln(Format('Network Deleted : %s', [GuidToString(networkId)]));
  Result := S_OK;
end;

function TNetworkEvents.NetworkPropertyChanged(networkId: TGUID; Flags: NLM_NETWORK_PROPERTY_CHANGE): HResult;
begin
  Writeln(Format('Network Property Changed : %s - %s', [GuidToString(networkId), GetNetworkPropertyChange(Flags)]));
  Result := S_OK;
end;

procedure TNetworkEvents.Start;
var
  LConnectionPointContainer: IConnectionPointContainer;
  LConnectionPoint: IConnectionPoint;
begin
  if dwCookie > 0 then exit;
   NetworkListManager := CoNetworkListManager.Create;
    if Succeeded(NetworkListManager.QueryInterface(IID_IConnectionPointContainer, LConnectionPointContainer)) then
    begin
      if Succeeded(LConnectionPointContainer.FindConnectionPoint(IID_INetworkEvents, LConnectionPoint)) then
      begin
        LConnectionPoint.Advise(Self as IUnknown, dwCookie);
        LConnectionPoint := nil;
      end;
    end;
end;

procedure TNetworkEvents.Stop;
var
  LConnectionPointContainer: IConnectionPointContainer;
  LConnectionPoint: IConnectionPoint;
begin
  if dwCookie = 0 then exit;
  if Succeeded(NetworkListManager.QueryInterface(IID_IConnectionPointContainer, LConnectionPointContainer)) then
    if Succeeded(LConnectionPointContainer.FindConnectionPoint(IID_INetworkEvents, LConnectionPoint)) then
    begin
      LConnectionPoint.Unadvise(dwCookie);
      LConnectionPoint := nil;
    end;
end;

var
   NLMEvents : TNetworkEvents;
begin
 try
    //Check is Windows Vista at least
   if TOSVersion.Check(6) then
   begin
    NLMEvents:=TNetworkEvents.Create;
    try
      NLMEvents.Start;
      Writeln('Listening NLM events - press any key to stop');
      //The next loop is only necessary on this sample console App
      //In VCL forms Apps you don't need use a loop
      while not KeyPressed do
      begin
          Sleep(100);
          Application.ProcessMessages;
      end;
    finally
      NLMEvents.Stop;
      Writeln('NLM events - Done');
    end;
   end
   else
   Writeln('This windows version doesn''t support the NLM API');
 except
    on E:EOleException do
        Writeln(Format('EOleException %s %x', [E.Message,E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;

 Readln;
end.

All the source code posted on this article is available on Github.

Rodrigo.


9 Comments

All about WiFi Networks and WiFi Adapters using the WMI and Delphi

Some time ago I wrote an article about how list the Wifi networks using Delphi and the Native Wifi API, today I will show you how can you can gain  access  to even more info and stats about the Wifi Adapters and Networks in a local or remote machine using the WMI (Windows Management Instrumentation) and Delphi.

The WMI provides several classes to retrieve information about the WiFi networks and  adapters, which these classes you will able to know for example the list available wifi networks, transmition and reception Wifi Stats, TCP/IP IPV4 and IPv6 settings and so on.

In order to work with the next WMI classes your Wifi Network adapter must install a CIMWiFiProvider which implement these classes.



WiFi Networks Information

Current Wifi NetWork

To get the info (Name, AuthenAlgorithm, SSID) about the current Wifi Network (Profile) connected to the adapter you must use the WiFi_AdapterAssociationInfo class

procedure  GetWiFi_AdapterAssociationInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterAssociationInfo','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Associated         %s',[FWbemObject.Associated]));// Boolean
    Writeln(Format('AuthenAlgorithm    %s',[FWbemObject.AuthenAlgorithm]));// String
    Writeln(Format('AuthenEnabled      %s',[FWbemObject.AuthenEnabled]));// Boolean
    Writeln(Format('AuthenMode         %s',[FWbemObject.AuthenMode]));// String
    Writeln(Format('Caption            %s',[FWbemObject.Caption]));// String
    Writeln(Format('Channel            %s',[FWbemObject.Channel]));// String
    Writeln(Format('Description        %s',[FWbemObject.Description]));// String
    Writeln(Format('Encryption         %s',[FWbemObject.Encryption]));// String
    Writeln(Format('OpMode             %s',[FWbemObject.OpMode]));// String
    Writeln(Format('Profile            %s',[FWbemObject.Profile]));// String
    Writeln(Format('Rate               %s',[FWbemObject.Rate]));// String
    Writeln(Format('SettingID          %s',[FWbemObject.SettingID]));// String
    Writeln(Format('SSID               %s',[FWbemObject.SSID]));// String
    FWbemObject:=Unassigned;
  end;
end;

Stats of current Wifi NetWork

To get stats about the current wifi Network connected use the WiFi_AdapterAssocStats

procedure  GetWiFi_AdapterAssocStatsInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterAssocStats','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('ApDidNotTx              %s',[FWbemObject.ApDidNotTx]));// Uint32
    Writeln(Format('ApMacAddr               %s',[FWbemObject.ApMacAddr]));// String
    Writeln(Format('Caption                 %s',[FWbemObject.Caption]));// String
    Writeln(Format('CrcErrs                 %s',[FWbemObject.CrcErrs]));// Uint32
    Writeln(Format('Description             %s',[FWbemObject.Description]));// String
    Writeln(Format('DroppedByAp             %s',[FWbemObject.DroppedByAp]));// Uint32
    Writeln(Format('LoadBalancing           %s',[FWbemObject.LoadBalancing]));// Uint32
    Writeln(Format('LowRssi                 %s',[FWbemObject.LowRssi]));// Uint32
    Writeln(Format('NumAps                  %s',[FWbemObject.NumAps]));// Uint32
    Writeln(Format('NumAssociations         %s',[FWbemObject.NumAssociations]));// Uint32
    Writeln(Format('NumFullScans            %s',[FWbemObject.NumFullScans]));// Uint32
    Writeln(Format('NumPartialScans         %s',[FWbemObject.NumPartialScans]));// Uint32
    Writeln(Format('PercentMissedBeacons    %s',[FWbemObject.PercentMissedBeacons]));// Uint32
    Writeln(Format('PercentTxErrs           %s',[FWbemObject.PercentTxErrs]));// Uint32
    Writeln(Format('PoorBeaconQuality       %s',[FWbemObject.PoorBeaconQuality]));// Uint32
    Writeln(Format('PoorChannelQuality      %s',[FWbemObject.PoorChannelQuality]));// Uint32
    Writeln(Format('RoamCount               %s',[FWbemObject.RoamCount]));// Uint32
    Writeln(Format('Rssi                    %s',[FWbemObject.Rssi]));// String
    Writeln(Format('RxBeacons               %s',[FWbemObject.RxBeacons]));// Uint32
    Writeln(Format('SettingID               %s',[FWbemObject.SettingID]));// String
    Writeln(Format('TxRetries               %s',[FWbemObject.TxRetries]));// Uint32
    FWbemObject:=Unassigned;
  end;
end;

Signal Stats of current Wifi NetWork

To get the signal information (Quality, Crc Errors, RSSI) about current WiFi Network, use the WiFi_AdapterSignalParameters class.

procedure  GetWiFi_AdapterSignalParametersInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterSignalParameters','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption                 %s',[FWbemObject.Caption]));// String
    Writeln(Format('CrcErrors               %s',[FWbemObject.CrcErrors]));// Uint32
    Writeln(Format('Description             %s',[FWbemObject.Description]));// String
    Writeln(Format('PercentMissedBeacons    %s',[FWbemObject.PercentMissedBeacons]));// Uint32
    Writeln(Format('PercentTxRetries        %s',[FWbemObject.PercentTxRetries]));// Uint32
    Writeln(Format('RSSI                    %s',[FWbemObject.RSSI]));// String
    Writeln(Format('SettingID               %s',[FWbemObject.SettingID]));// String
    Writeln(Format('SignalQuality           %s',[FWbemObject.SignalQuality]));// String
    FWbemObject:=Unassigned;
  end;
end;

List the cached WiFi networks

To get the list of the cached wifi network availables (result of the last network scan) use the WiFi_AdapterCachedScanList class.


procedure  GetWiFi_AdapterCachedScanListInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterCachedScanList','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('AuthLevel                   %s',[FWbemObject.AuthLevel]));// String
    Writeln(Format('Band                        %s',[FWbemObject.Band]));// String
    Writeln(Format('Caption                     %s',[FWbemObject.Caption]));// String
    Writeln(Format('ChannelID                   %s',[FWbemObject.ChannelID]));// Uint32
    Writeln(Format('Description                 %s',[FWbemObject.Description]));// String
    Writeln(Format('Encrypted                   %s',[FWbemObject.Encrypted]));// Boolean
    Writeln(Format('MacAddress                  %s',[FWbemObject.MacAddress]));// String
    Writeln(Format('MulticastEncryptionLevel    %s',[FWbemObject.MulticastEncryptionLevel]));// String
    Writeln(Format('NetworkName                 %s',[FWbemObject.NetworkName]));// String
    Writeln(Format('OperationMode               %s',[FWbemObject.OperationMode]));// String
    Writeln(Format('RSSI                        %s',[FWbemObject.RSSI]));// String
    Writeln(Format('SettingID                   %s',[FWbemObject.SettingID]));// String
    Writeln(Format('Stealth                     %s',[FWbemObject.Stealth]));// Boolean
    Writeln(Format('UnicastEncryptionLevel      %s',[FWbemObject.UnicastEncryptionLevel]));// String
    FWbemObject:=Unassigned;
  end;
end;

List the available WiFi networks

Using the WiFi_AvailableNetwork class you can scan and get the list of the current wifi network availables.

procedure  GetWiFi_AvailableNetworkInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AvailableNetwork','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('AuthLevel                   %s',[FWbemObject.AuthLevel]));// String
    Writeln(Format('Band                        %s',[FWbemObject.Band]));// String
    Writeln(Format('Caption                     %s',[FWbemObject.Caption]));// String
    Writeln(Format('ChannelID                   %s',[FWbemObject.ChannelID]));// Uint32
    Writeln(Format('Description                 %s',[FWbemObject.Description]));// String
    Writeln(Format('Encrypted                   %s',[FWbemObject.Encrypted]));// Boolean
    Writeln(Format('MacAddress                  %s',[FWbemObject.MacAddress]));// String
    Writeln(Format('MulticastEncryptionLevel    %s',[FWbemObject.MulticastEncryptionLevel]));// String
    Writeln(Format('NetworkName                 %s',[FWbemObject.NetworkName]));// String
    Writeln(Format('OperationMode               %s',[FWbemObject.OperationMode]));// String
    Writeln(Format('RSSI                        %s',[FWbemObject.RSSI]));// String
    Writeln(Format('SettingID                   %s',[FWbemObject.SettingID]));// String
    Writeln(Format('Stealth                     %s',[FWbemObject.Stealth]));// Boolean
    Writeln(Format('UnicastEncryptionLevel      %s',[FWbemObject.UnicastEncryptionLevel]));// String
    FWbemObject:=Unassigned;
  end;
end;

List all the Stored WiFi networks profiles

If you want list all the stored WiFi networks profiles use the WiFi_PreferredProfile class.

procedure  GetWiFi_PreferredProfileInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_PreferredProfile','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Authentication    %s',[FWbemObject.Authentication]));// String
    Writeln(Format('Caption           %s',[FWbemObject.Caption]));// String
    Writeln(Format('Description       %s',[FWbemObject.Description]));// String
    Writeln(Format('Encryption        %s',[FWbemObject.Encryption]));// String
    Writeln(Format('MandatoryAp       %s',[FWbemObject.MandatoryAp]));// String
    Writeln(Format('Name              %s',[FWbemObject.Name]));// String
    Writeln(Format('OperationMode     %s',[FWbemObject.OperationMode]));// String
    Writeln(Format('SettingID         %s',[FWbemObject.SettingID]));// String
    Writeln(Format('SSID              %s',[FWbemObject.SSID]));// String
    Writeln(Format('Stealth           %s',[FWbemObject.Stealth]));// Boolean
    Writeln(Format('Type              %s',[FWbemObject.Type]));// String
    FWbemObject:=Unassigned;
  end;
end;

WiFi Adapters Information

Listing the Wifi Network Adapters

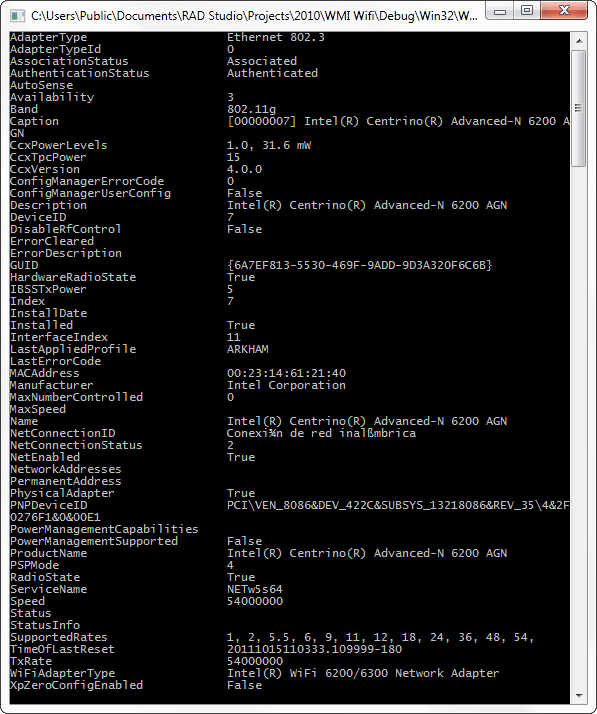

The WiFi_NetworkAdapter class give you access to the main information related to the WiFi network adpaters.

procedure  GetWiFi_NetworkAdapterInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_NetworkAdapter','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('AdapterType                    %s',[FWbemObject.AdapterType]));// String
    Writeln(Format('AdapterTypeId                  %s',[FWbemObject.AdapterTypeId]));// Uint16
    Writeln(Format('AssociationStatus              %s',[FWbemObject.AssociationStatus]));// String
    Writeln(Format('AuthenticationStatus           %s',[FWbemObject.AuthenticationStatus]));// String
    Writeln(Format('AutoSense                      %s',[FWbemObject.AutoSense]));// Boolean
    Writeln(Format('Availability                   %s',[FWbemObject.Availability]));// Uint16
    Writeln(Format('Band                           %s',[FWbemObject.Band]));// String
    Writeln(Format('Caption                        %s',[FWbemObject.Caption]));// String
    Writeln(Format('CcxPowerLevels                 %s',[FWbemObject.CcxPowerLevels]));// String
    Writeln(Format('CcxTpcPower                    %s',[FWbemObject.CcxTpcPower]));// String
    Writeln(Format('CcxVersion                     %s',[FWbemObject.CcxVersion]));// String
    Writeln(Format('ConfigManagerErrorCode         %s',[FWbemObject.ConfigManagerErrorCode]));// Uint32
    Writeln(Format('ConfigManagerUserConfig        %s',[FWbemObject.ConfigManagerUserConfig]));// Boolean
    Writeln(Format('Description                    %s',[FWbemObject.Description]));// String
    Writeln(Format('DeviceID                       %s',[FWbemObject.DeviceID]));// String
    Writeln(Format('DisableRfControl               %s',[FWbemObject.DisableRfControl]));// Boolean
    Writeln(Format('ErrorCleared                   %s',[FWbemObject.ErrorCleared]));// Boolean
    Writeln(Format('ErrorDescription               %s',[FWbemObject.ErrorDescription]));// String
    Writeln(Format('GUID                           %s',[FWbemObject.GUID]));// String
    Writeln(Format('HardwareRadioState             %s',[FWbemObject.HardwareRadioState]));// Boolean
    Writeln(Format('IBSSTxPower                    %s',[FWbemObject.IBSSTxPower]));// Uint16
    Writeln(Format('Index                          %s',[FWbemObject.Index]));// Uint32
    Writeln(Format('InstallDate                    %s',[FWbemObject.InstallDate]));// Datetime
    Writeln(Format('Installed                      %s',[FWbemObject.Installed]));// Boolean
    Writeln(Format('InterfaceIndex                 %s',[FWbemObject.InterfaceIndex]));// Uint32
    Writeln(Format('LastAppliedProfile             %s',[FWbemObject.LastAppliedProfile]));// String
    Writeln(Format('LastErrorCode                  %s',[FWbemObject.LastErrorCode]));// Uint32
    Writeln(Format('MACAddress                     %s',[FWbemObject.MACAddress]));// String
    Writeln(Format('Manufacturer                   %s',[FWbemObject.Manufacturer]));// String
    Writeln(Format('MaxNumberControlled            %s',[FWbemObject.MaxNumberControlled]));// Uint32
    Writeln(Format('MaxSpeed                       %s',[FWbemObject.MaxSpeed]));// Uint64
    Writeln(Format('Name                           %s',[FWbemObject.Name]));// String
    Writeln(Format('NetConnectionID                %s',[FWbemObject.NetConnectionID]));// String
    Writeln(Format('NetConnectionStatus            %s',[FWbemObject.NetConnectionStatus]));// Uint16
    Writeln(Format('NetEnabled                     %s',[FWbemObject.NetEnabled]));// Boolean
    Writeln(Format('NetworkAddresses               %s',[FWbemObject.NetworkAddresses]));// String
    Writeln(Format('PermanentAddress               %s',[FWbemObject.PermanentAddress]));// String
    Writeln(Format('PhysicalAdapter                %s',[FWbemObject.PhysicalAdapter]));// Boolean
    Writeln(Format('PNPDeviceID                    %s',[FWbemObject.PNPDeviceID]));// String
    Writeln(Format('PowerManagementCapabilities    %s',[FWbemObject.PowerManagementCapabilities]));// Uint16
    Writeln(Format('PowerManagementSupported       %s',[FWbemObject.PowerManagementSupported]));// Boolean
    Writeln(Format('ProductName                    %s',[FWbemObject.ProductName]));// String
    Writeln(Format('PSPMode                        %s',[FWbemObject.PSPMode]));// Uint16
    Writeln(Format('RadioState                     %s',[FWbemObject.RadioState]));// Boolean
    Writeln(Format('ServiceName                    %s',[FWbemObject.ServiceName]));// String
    Writeln(Format('Speed                          %s',[FWbemObject.Speed]));// Uint64
    Writeln(Format('Status                         %s',[FWbemObject.Status]));// String
    Writeln(Format('StatusInfo                     %s',[FWbemObject.StatusInfo]));// Uint16
    Writeln(Format('SupportedRates                 %s',[FWbemObject.SupportedRates]));// String
    Writeln(Format('TimeOfLastReset                %s',[FWbemObject.TimeOfLastReset]));// Datetime
    Writeln(Format('TxRate                         %s',[FWbemObject.TxRate]));// String
    Writeln(Format('WiFiAdapterType                %s',[FWbemObject.WiFiAdapterType]));// String
    Writeln(Format('XpZeroConfigEnabled            %s',[FWbemObject.XpZeroConfigEnabled]));// Boolean
    FWbemObject:=Unassigned;
  end;
end;

Get the version info about the Wifi Adapter

The WiFi_AdapterVersion class let you get the Driver and Firmware information about the WiFi Adapters.

procedure  GetWiFi_AdapterVersionInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterVersion','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption         %s',[FWbemObject.Caption]));// String
    Writeln(Format('Description     %s',[FWbemObject.Description]));// String
    Writeln(Format('Driver          %s',[FWbemObject.Driver]));// String
    Writeln(Format('EEPROM          %s',[FWbemObject.EEPROM]));// String
    Writeln(Format('Firmware11a     %s',[FWbemObject.Firmware11a]));// String
    Writeln(Format('Firmware11b     %s',[FWbemObject.Firmware11b]));// String
    Writeln(Format('Firmware11g     %s',[FWbemObject.Firmware11g]));// String
    Writeln(Format('Microcode11a    %s',[FWbemObject.Microcode11a]));// String
    Writeln(Format('Microcode11b    %s',[FWbemObject.Microcode11b]));// String
    Writeln(Format('Microcode11g    %s',[FWbemObject.Microcode11g]));// String
    Writeln(Format('SettingID       %s',[FWbemObject.SettingID]));// String
    FWbemObject:=Unassigned;
  end;
end;

Get Mac Address and Internal information about the Adapter

Use the WiFi_AdapterDevice class if you want get the Mac Address and internal info about the adapter.

procedure  GetWiFi_AdapterDeviceInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterDevice','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption              %s',[FWbemObject.Caption]));// String
    Writeln(Format('CardType             %s',[FWbemObject.CardType]));// String
    Writeln(Format('Description          %s',[FWbemObject.Description]));// String
    Writeln(Format('DeviceID             %s',[FWbemObject.DeviceID]));// String
    Writeln(Format('HardwareID           %s',[FWbemObject.HardwareID]));// String
    Writeln(Format('MacAddress           %s',[FWbemObject.MacAddress]));// String
    Writeln(Format('RevisionID           %s',[FWbemObject.RevisionID]));// String
    Writeln(Format('SettingID            %s',[FWbemObject.SettingID]));// String
    Writeln(Format('SubsystemID          %s',[FWbemObject.SubsystemID]));// String
    Writeln(Format('SubSystemVendorID    %s',[FWbemObject.SubSystemVendorID]));// String
    Writeln(Format('VendorID             %s',[FWbemObject.VendorID]));// String
    FWbemObject:=Unassigned;
  end;
end;

Get memory and I/O Address settings of the Adapter

To get the memory address, memory size and others items related to the internal settings of the adapter use the WiFi_AdapterConfigSettings class.

procedure  GetWiFi_AdapterConfigSettingsInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterConfigSettings','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('AddressingMode            %s',[FWbemObject.AddressingMode]));// String
    Writeln(Format('AttributeMemoryAddress    %s',[FWbemObject.AttributeMemoryAddress]));// String
    Writeln(Format('AttriuteMemorySize        %s',[FWbemObject.AttriuteMemorySize]));// String
    Writeln(Format('Caption                   %s',[FWbemObject.Caption]));// String
    Writeln(Format('ControllerIOAddress       %s',[FWbemObject.ControllerIOAddress]));// String
    Writeln(Format('Description               %s',[FWbemObject.Description]));// String
    Writeln(Format('InterruptNumber           %s',[FWbemObject.InterruptNumber]));// String
    Writeln(Format('IOAddress                 %s',[FWbemObject.IOAddress]));// String
    Writeln(Format('MemoryAddress             %s',[FWbemObject.MemoryAddress]));// String
    Writeln(Format('MemorySize                %s',[FWbemObject.MemorySize]));// String
    Writeln(Format('PacketFilterMask          %s',[FWbemObject.PacketFilterMask]));// String
    Writeln(Format('SettingID                 %s',[FWbemObject.SettingID]));// String
    Writeln(Format('SocketNumber              %s',[FWbemObject.SocketNumber]));// String
    FWbemObject:=Unassigned;
  end;
end;

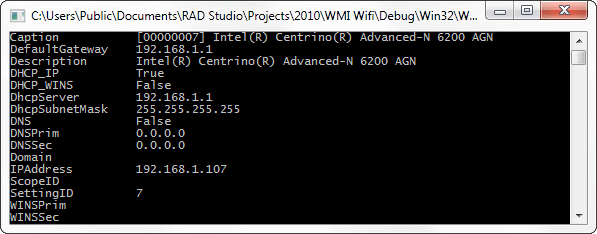

TcpIp Settings IPv4

To get the WiFi Adapter TcpIp (IPv4) Settings use the WiFi_AdapterTcpIpSettings class

procedure  GetWiFi_AdapterTcpIpSettingsInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterTcpIpSettings','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption           %s',[FWbemObject.Caption]));// String
    Writeln(Format('DefaultGateway    %s',[FWbemObject.DefaultGateway]));// String
    Writeln(Format('Description       %s',[FWbemObject.Description]));// String
    Writeln(Format('DHCP_IP           %s',[FWbemObject.DHCP_IP]));// Boolean
    Writeln(Format('DHCP_WINS         %s',[FWbemObject.DHCP_WINS]));// Boolean
    Writeln(Format('DhcpServer        %s',[FWbemObject.DhcpServer]));// String
    Writeln(Format('DhcpSubnetMask    %s',[FWbemObject.DhcpSubnetMask]));// String
    Writeln(Format('DNS               %s',[FWbemObject.DNS]));// Boolean
    Writeln(Format('DNSPrim           %s',[FWbemObject.DNSPrim]));// String
    Writeln(Format('DNSSec            %s',[FWbemObject.DNSSec]));// String
    Writeln(Format('Domain            %s',[FWbemObject.Domain]));// String
    Writeln(Format('IPAddress         %s',[FWbemObject.IPAddress]));// String
    Writeln(Format('ScopeID           %s',[FWbemObject.ScopeID]));// String
    Writeln(Format('SettingID         %s',[FWbemObject.SettingID]));// String
    Writeln(Format('WINSPrim          %s',[FWbemObject.WINSPrim]));// String
    Writeln(Format('WINSSec           %s',[FWbemObject.WINSSec]));// String
    FWbemObject:=Unassigned;
  end;
end;

TcpIp Settings IPv6

To get the WiFi Adapter TcpIp (IPv6) Settings use the WiFi_AdapterTcpIpv6Settings class

procedure  GetWiFi_AdapterTcpIpv6SettingsInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterTcpIpv6Settings','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption           %s',[FWbemObject.Caption]));// String
    Writeln(Format('DefaultGateway    %s',[FWbemObject.DefaultGateway]));// String
    Writeln(Format('Description       %s',[FWbemObject.Description]));// String
    Writeln(Format('DHCP_IP           %s',[FWbemObject.DHCP_IP]));// Boolean
    Writeln(Format('DHCP_WINS         %s',[FWbemObject.DHCP_WINS]));// Boolean
    Writeln(Format('DhcpServer        %s',[FWbemObject.DhcpServer]));// String
    Writeln(Format('DhcpSubnetMask    %s',[FWbemObject.DhcpSubnetMask]));// String
    Writeln(Format('DNS               %s',[FWbemObject.DNS]));// Boolean
    Writeln(Format('DNSPrim           %s',[FWbemObject.DNSPrim]));// String
    Writeln(Format('DNSSec            %s',[FWbemObject.DNSSec]));// String
    Writeln(Format('Domain            %s',[FWbemObject.Domain]));// String
    Writeln(Format('IPAddress         %s',[FWbemObject.IPAddress]));// String
    Writeln(Format('ScopeID           %s',[FWbemObject.ScopeID]));// String
    Writeln(Format('SettingID         %s',[FWbemObject.SettingID]));// String
    Writeln(Format('WINSPrim          %s',[FWbemObject.WINSPrim]));// String
    Writeln(Format('WINSSec           %s',[FWbemObject.WINSSec]));// String
    FWbemObject:=Unassigned;
  end;
end;

Global Adpater stats

To get the global stats about the adapter like use the WiFi_AdapterTxRxStats class.

procedure  GetWiFi_AdapterTxRxStatsInfo;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObjectSet:= FWMIService.ExecQuery('SELECT * FROM WiFi_AdapterTxRxStats','WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('Caption                              %s',[FWbemObject.Caption]));// String
    Writeln(Format('Description                          %s',[FWbemObject.Description]));// String
    //Writeln(Format('Rates                                %s',[FWbemObject.Rates]));//array of String
    Writeln(Format('RxDirectPackets                      %s',[FWbemObject.RxDirectPackets]));// String
    //Writeln(Format('RxDirectPacketsRate                  %s',[FWbemObject.RxDirectPacketsRate]));// array of String
    Writeln(Format('RxHighThroughputDirectPackets        %s',[FWbemObject.RxHighThroughputDirectPackets]));// String
    //Writeln(Format('RxHighThroughputDirectPacketsRate    %s',[FWbemObject.RxHighThroughputDirectPacketsRate]));// array of String
    Writeln(Format('RxNonDirectPackets                   %s',[FWbemObject.RxNonDirectPackets]));// String
    //Writeln(Format('RxNonDirectPacketsRate               %s',[FWbemObject.RxNonDirectPacketsRate]));// array of String
    Writeln(Format('RxTotalBytes                         %s',[FWbemObject.RxTotalBytes]));// String
    Writeln(Format('RxTotalPackets                       %s',[FWbemObject.RxTotalPackets]));// String
    Writeln(Format('SettingID                            %s',[FWbemObject.SettingID]));// String
    Writeln(Format('TxDirectPackets                      %s',[FWbemObject.TxDirectPackets]));// String
    //Writeln(Format('TxDirectPacketsRate                  %s',[FWbemObject.TxDirectPacketsRate]));// array of String
    Writeln(Format('TxHighThroughputDirectPackets        %s',[FWbemObject.TxHighThroughputDirectPackets]));// String
    //Writeln(Format('TxHighThroughputDirectPacketsRate    %s',[FWbemObject.TxHighThroughputDirectPacketsRate]));// array of String
    Writeln(Format('TxNonDirectPackets                   %s',[FWbemObject.TxNonDirectPackets]));// String
    //Writeln(Format('TxNonDirectPacketsRate               %s',[FWbemObject.TxNonDirectPacketsRate]));// array of String
    Writeln(Format('TxTotalBytes                         %s',[FWbemObject.TxTotalBytes]));// String
    Writeln(Format('TxTotalPackets                       %s',[FWbemObject.TxTotalPackets]));// String
    FWbemObject:=Unassigned;
  end;
end;

Check the source code of the console application with all the snippets included of this article on Github


7 Comments

Using Delphi and ADSI to enumerate local and remote shared resources

One of the most rich Directory Access Technologies of Microsoft is the Active Directory Service Interfaces (ADSI) which is a set of interfaces designed to access the features of directory services from different network providers, in this case we will use the WinNT Provider to access the shared resources of a local or remote machine.  The aim of this post is show you how you can obtain the information related to the shared resources from a Delphi application.

Getting the interfaces

The common way to access the ADSI Interfaces from Delphi is importing the Active DS type library.

After of import the type library you will got a large unit file with many interfaces , constants and types which we will not need in this case, and only increase the final size of our application. So we can extract the interfaces for access the network shared resources (see the next source that shows the interfaces to the task)

const
  IID_IADsContainer: TGUID = '{001677D0-FD16-11CE-ABC4-02608C9E7553}';
  IID_IADsFileServiceOperations: TGUID = '{A02DED10-31CA-11CF-A98A-00AA006BC149}';
  ADS_SECURE_AUTHENTICATION = $00000001;
type
  IADsCollection = interface(IDispatch)
    ['{72B945E0-253B-11CF-A988-00AA006BC149}']
    function Get__NewEnum: IUnknown; safecall;
    procedure Add(const bstrName: WideString; vItem: OleVariant); safecall;
    procedure Remove(const bstrItemToBeRemoved: WideString); safecall;
    function GetObject(const bstrName: WideString): OleVariant; safecall;
    property _NewEnum: IUnknown read Get__NewEnum;
  end;

  IADs = interface(IDispatch)
    ['{FD8256D0-FD15-11CE-ABC4-02608C9E7553}']
    function Get_Name: WideString; safecall;
    function Get_Class_: WideString; safecall;
    function Get_GUID: WideString; safecall;
    function Get_ADsPath: WideString; safecall;
    function Get_Parent: WideString; safecall;
    function Get_Schema: WideString; safecall;
    procedure GetInfo; safecall;
    procedure SetInfo; safecall;
    function Get(const bstrName: WideString): OleVariant; safecall;
    procedure Put(const bstrName: WideString; vProp: OleVariant); safecall;
    function GetEx(const bstrName: WideString): OleVariant; safecall;
    procedure PutEx(lnControlCode: Integer; const bstrName: WideString; vProp: OleVariant); safecall;
    procedure GetInfoEx(vProperties: OleVariant; lnReserved: Integer); safecall;
    property Name: WideString read Get_Name;
    property Class_: WideString read Get_Class_;
    property GUID: WideString read Get_GUID;
    property ADsPath: WideString read Get_ADsPath;
    property Parent: WideString read Get_Parent;
    property Schema: WideString read Get_Schema;
  end;

  IADsContainer = interface(IDispatch)
    ['{001677D0-FD16-11CE-ABC4-02608C9E7553}']
    function Get_Count: Integer; safecall;
    function Get__NewEnum: IUnknown; safecall;
    function Get_Filter: OleVariant; safecall;
    procedure Set_Filter(pVar: OleVariant); safecall;
    function Get_Hints: OleVariant; safecall;
    procedure Set_Hints(pvFilter: OleVariant); safecall;
    function GetObject(const ClassName: WideString; const RelativeName: WideString): IDispatch; safecall;
    function Create(const ClassName: WideString; const RelativeName: WideString): IDispatch; safecall;
    procedure Delete(const bstrClassName: WideString; const bstrRelativeName: WideString); safecall;
    function CopyHere(const SourceName: WideString; const NewName: WideString): IDispatch; safecall;
    function MoveHere(const SourceName: WideString; const NewName: WideString): IDispatch; safecall;
    property Count: Integer read Get_Count;
    property _NewEnum: IUnknown read Get__NewEnum;
    property Filter: OleVariant read Get_Filter write Set_Filter;
    property Hints: OleVariant read Get_Hints write Set_Hints;
  end;

  IADsServiceOperations = interface(IADs)
    ['{5D7B33F0-31CA-11CF-A98A-00AA006BC149}']
    function Get_Status: Integer; safecall;
    procedure Start; safecall;
    procedure Stop; safecall;
    procedure Pause; safecall;
    procedure Continue; safecall;
    procedure SetPassword(const bstrNewPassword: WideString); safecall;
    property Status: Integer read Get_Status;
  end;

  IADsFileServiceOperations = interface(IADsServiceOperations)
    ['{A02DED10-31CA-11CF-A98A-00AA006BC149}']
    function Sessions: IADsCollection; safecall;
    function Resources: IADsCollection; safecall;
  end;

  IADsResource = interface(IADs)
    ['{34A05B20-4AAB-11CF-AE2C-00AA006EBFB9}']
    function Get_User: WideString; safecall;
    function Get_UserPath: WideString; safecall;
    function Get_Path: WideString; safecall;
    function Get_LockCount: Integer; safecall;
    property User: WideString read Get_User;
    property UserPath: WideString read Get_UserPath;
    property Path: WideString read Get_Path;
    property LockCount: Integer read Get_LockCount;
  end;

  IADsSession = interface(IADs)
    ['{398B7DA0-4AAB-11CF-AE2C-00AA006EBFB9}']
    function Get_User: WideString; safecall;
    function Get_UserPath: WideString; safecall;
    function Get_Computer: WideString; safecall;
    function Get_ComputerPath: WideString; safecall;
    function Get_ConnectTime: Integer; safecall;
    function Get_IdleTime: Integer; safecall;
    property User: WideString read Get_User;
    property UserPath: WideString read Get_UserPath;
    property Computer: WideString read Get_Computer;
    property ComputerPath: WideString read Get_ComputerPath;
    property ConnectTime: Integer read Get_ConnectTime;
    property IdleTime: Integer read Get_IdleTime;
  end;

  IADsFileShare = interface(IADs)
    ['{EB6DCAF0-4B83-11CF-A995-00AA006BC149}']
    function Get_CurrentUserCount: Integer; safecall;
    function Get_Description: WideString; safecall;
    procedure Set_Description(const retval: WideString); safecall;
    function Get_HostComputer: WideString; safecall;
    procedure Set_HostComputer(const retval: WideString); safecall;
    function Get_Path: WideString; safecall;
    procedure Set_Path(const retval: WideString); safecall;
    function Get_MaxUserCount: Integer; safecall;
    procedure Set_MaxUserCount(retval: Integer); safecall;
    property CurrentUserCount: Integer read Get_CurrentUserCount;
    property Description: WideString read Get_Description write Set_Description;
    property HostComputer: WideString read Get_HostComputer write Set_HostComputer;
    property Path: WideString read Get_Path write Set_Path;
    property MaxUserCount: Integer read Get_MaxUserCount write Set_MaxUserCount;
  end;

In addition to the interfaces we need the ADsOpenObject function which allow you binds to an ADSI interface.

check the syntax of this function

HRESULT ADsOpenObject(
  __in   LPCWSTR lpszPathName,
  __in   LPCWSTR lpszUserName,
  __in   LPCWSTR lpszPassword,
  __in   DWORD dwReserved,
  __in   REFIID riid,
  __out  VOID **ppObject
);

The Delphi equivalent can be

function ADsOpenObject(lpszPathName,lpszUserName,lpszPassword : WideString;
dwReserved : DWORD; const riid:TGUID; out ppObject): HResult; safecall; external 'activeds.dll';

or

function ADsOpenObject(lpszPathName,lpszUserName,lpszPassword : WideString;
dwReserved : DWORD; const riid:TGUID; out ppObject): HResult; stdcall; external 'activeds.dll';

As you can see the only difference is the calling convention (safecall vs stdcall), if you want which Delphi check the value of the returned HResult and raises the exception for you then use the safecall calling convention else if you want check manually the HResult returned by the function use stdcall

Listing the Connected Sessions

To list the Open Sessions (Machines connected) to the shared resources we must use the IADsFileServiceOperations interface and the Sessions function which return a collection of the open sessions for the service.

const
   lpszUserName ='';  // set the user name used to establish the connection to the remote machine
   lpszPassword ='';  // set the password used to establish the connection to the remote machine
   lpszComputer ='.'; // the "." is for the local machine, you can set the name of the remote machine
var
  FSO             : IADsFileServiceOperations;
  Sessions        : IADsCollection;
  Session         : IADsSession;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
  dt              : TDateTime;
begin
  //connect to the file service of the loal o remote machine
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsFileServiceOperations,FSO));
  //obtain the sessions
  Sessions := FSO.Sessions;
  //Get the enumerator
  oEnum:= IUnknown(Sessions._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    //cast the current element to IADsSession
    Session:=IUnknown(rgvar) as IADsSession;
    try
      Writeln('Computer        '+Session.Computer);
      dt := Session.ConnectTime / SecsPerDay; // the ConnectTime  property return the value in seconds
      Writeln('Connected Time  '+FormatDateTime('hh:nn:ss',dt));
      dt := Session.IdleTime / SecsPerDay; // the IdleTime property return the value in seconds
      Writeln('Idle Time       '+FormatDateTime('hh:nn:ss',dt));
      Writeln('Name            '+Session.Name);
      Writeln('User            '+Session.User);
      Writeln('');
    finally
      rgvar:=Unassigned; //clear the variant used for hold the values avoiding meory leaks
    end;
  end;
end;

With this simple code you will get the same information returned by the Windows option Computer Management -> System Tools -> Shared folders > Sessions

Listing the shared resources in use (opened)

To List the opened resources like folders and files we must use the IADsFileServiceOperations interface and the Resources function which return a collection of the open resources for the service.

procedure ListSharedResourcesInUse;
const
   lpszUserName ='';
   lpszPassword ='';
   lpszComputer ='.';
var
  FSO             : IADsFileServiceOperations;
  Resources       : IADsCollection;
  Resource        : IADsResource;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
begin
  //connect to the WinNt provider of the local or remote machine and get an instance to the file service
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsFileServiceOperations,FSO));
  //Get the opened resources
  Resources := FSO.Resources;
  //get the enumerator
  oEnum:= IUnknown(Resources._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    //cast the current element of the collection to the IADsResource interface
    Resource:=IUnknown(rgvar) as IADsResource;
    try
      try
       Writeln(Format('Resource %s User %s LockCount %d',[Resource.Path, Resource.User, Resource.LockCount]));
      except
        on E:EOleException  do
        if E.ErrorCode<> HResult($80070002) then  //in some cases this exception (path not found) is raised when you enumerate the opened resources, you can ignore without problems
         raise;
      end;
    finally
      rgvar:=Unassigned; //avoid a memory leak
    end;
  end;
end;

With this code you will get the same information returned by the Windows option Computer Management -> System Tools -> Shared folders > Open files

Listing the Shared Resources

Finally to List the shared resources we must connect to the local or remote machine using the ADsOpenObject function passing a IADsContainer interface which return a collection with the resources.

procedure ListShared;
const
   lpszUserName ='';
   lpszPassword ='';
   lpszComputer ='.';
var
  Shares          : IADsContainer;
  Share           : IADsFileShare;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
begin
  //connect to the network provider and get the collection of shared resources
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsContainer,Shares));
  //get the enumerator
  oEnum:= IUnknown(Shares._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    //cast the current element to IADsFileShare
    Share:=IUnknown(rgvar) as IADsFileShare;
    try
      Writeln('CurrentUserCount '+IntToStr(Share.CurrentUserCount));
      Writeln('Host Computer    '+Share.HostComputer);
      Writeln('Description      '+Share.Description);
      Writeln('Path             '+Share.Path);
      Writeln('Max User Count   '+IntToStr(Share.MaxUserCount));
      Writeln('');
    finally
     rgvar:=Unassigned; //avoid memory leaks
    end;
  end;
end;

The Console application

This is the full source code of a console application to show all the tasks described in this post.

{$APPTYPE CONSOLE}
{.$DEFINE USE_ActiveDs_TLB}

uses
  {$IFDEF USE_ActiveDs_TLB}
  ActiveDs_TLB,
  {$ENDIF}
  Windows,
  ComObj,
  Variants,
  ActiveX,
  SysUtils;

{$IFNDEF USE_ActiveDs_TLB}
const
  IID_IADsContainer: TGUID = '{001677D0-FD16-11CE-ABC4-02608C9E7553}';
  IID_IADsFileServiceOperations: TGUID = '{A02DED10-31CA-11CF-A98A-00AA006BC149}';
  ADS_SECURE_AUTHENTICATION = $00000001;
type
  IADsCollection = interface(IDispatch)
    ['{72B945E0-253B-11CF-A988-00AA006BC149}']
    function Get__NewEnum: IUnknown; safecall;
    procedure Add(const bstrName: WideString; vItem: OleVariant); safecall;
    procedure Remove(const bstrItemToBeRemoved: WideString); safecall;
    function GetObject(const bstrName: WideString): OleVariant; safecall;
    property _NewEnum: IUnknown read Get__NewEnum;
  end;

  IADs = interface(IDispatch)
    ['{FD8256D0-FD15-11CE-ABC4-02608C9E7553}']
    function Get_Name: WideString; safecall;
    function Get_Class_: WideString; safecall;
    function Get_GUID: WideString; safecall;
    function Get_ADsPath: WideString; safecall;
    function Get_Parent: WideString; safecall;
    function Get_Schema: WideString; safecall;
    procedure GetInfo; safecall;
    procedure SetInfo; safecall;
    function Get(const bstrName: WideString): OleVariant; safecall;
    procedure Put(const bstrName: WideString; vProp: OleVariant); safecall;
    function GetEx(const bstrName: WideString): OleVariant; safecall;
    procedure PutEx(lnControlCode: Integer; const bstrName: WideString; vProp: OleVariant); safecall;
    procedure GetInfoEx(vProperties: OleVariant; lnReserved: Integer); safecall;
    property Name: WideString read Get_Name;
    property Class_: WideString read Get_Class_;
    property GUID: WideString read Get_GUID;
    property ADsPath: WideString read Get_ADsPath;
    property Parent: WideString read Get_Parent;
    property Schema: WideString read Get_Schema;
  end;

  IADsContainer = interface(IDispatch)
    ['{001677D0-FD16-11CE-ABC4-02608C9E7553}']
    function Get_Count: Integer; safecall;
    function Get__NewEnum: IUnknown; safecall;
    function Get_Filter: OleVariant; safecall;
    procedure Set_Filter(pVar: OleVariant); safecall;
    function Get_Hints: OleVariant; safecall;
    procedure Set_Hints(pvFilter: OleVariant); safecall;
    function GetObject(const ClassName: WideString; const RelativeName: WideString): IDispatch; safecall;
    function Create(const ClassName: WideString; const RelativeName: WideString): IDispatch; safecall;
    procedure Delete(const bstrClassName: WideString; const bstrRelativeName: WideString); safecall;
    function CopyHere(const SourceName: WideString; const NewName: WideString): IDispatch; safecall;
    function MoveHere(const SourceName: WideString; const NewName: WideString): IDispatch; safecall;
    property Count: Integer read Get_Count;
    property _NewEnum: IUnknown read Get__NewEnum;
    property Filter: OleVariant read Get_Filter write Set_Filter;
    property Hints: OleVariant read Get_Hints write Set_Hints;
  end;

  IADsServiceOperations = interface(IADs)
    ['{5D7B33F0-31CA-11CF-A98A-00AA006BC149}']
    function Get_Status: Integer; safecall;
    procedure Start; safecall;
    procedure Stop; safecall;
    procedure Pause; safecall;
    procedure Continue; safecall;
    procedure SetPassword(const bstrNewPassword: WideString); safecall;
    property Status: Integer read Get_Status;
  end;

  IADsFileServiceOperations = interface(IADsServiceOperations)
    ['{A02DED10-31CA-11CF-A98A-00AA006BC149}']
    function Sessions: IADsCollection; safecall;
    function Resources: IADsCollection; safecall;
  end;

  IADsResource = interface(IADs)
    ['{34A05B20-4AAB-11CF-AE2C-00AA006EBFB9}']
    function Get_User: WideString; safecall;
    function Get_UserPath: WideString; safecall;
    function Get_Path: WideString; safecall;
    function Get_LockCount: Integer; safecall;
    property User: WideString read Get_User;
    property UserPath: WideString read Get_UserPath;
    property Path: WideString read Get_Path;
    property LockCount: Integer read Get_LockCount;
  end;

  IADsSession = interface(IADs)
    ['{398B7DA0-4AAB-11CF-AE2C-00AA006EBFB9}']
    function Get_User: WideString; safecall;
    function Get_UserPath: WideString; safecall;
    function Get_Computer: WideString; safecall;
    function Get_ComputerPath: WideString; safecall;
    function Get_ConnectTime: Integer; safecall;
    function Get_IdleTime: Integer; safecall;
    property User: WideString read Get_User;
    property UserPath: WideString read Get_UserPath;
    property Computer: WideString read Get_Computer;
    property ComputerPath: WideString read Get_ComputerPath;
    property ConnectTime: Integer read Get_ConnectTime;
    property IdleTime: Integer read Get_IdleTime;
  end;

  IADsFileShare = interface(IADs)
    ['{EB6DCAF0-4B83-11CF-A995-00AA006BC149}']
    function Get_CurrentUserCount: Integer; safecall;
    function Get_Description: WideString; safecall;
    procedure Set_Description(const retval: WideString); safecall;
    function Get_HostComputer: WideString; safecall;
    procedure Set_HostComputer(const retval: WideString); safecall;
    function Get_Path: WideString; safecall;
    procedure Set_Path(const retval: WideString); safecall;
    function Get_MaxUserCount: Integer; safecall;
    procedure Set_MaxUserCount(retval: Integer); safecall;
    property CurrentUserCount: Integer read Get_CurrentUserCount;
    property Description: WideString read Get_Description write Set_Description;
    property HostComputer: WideString read Get_HostComputer write Set_HostComputer;
    property Path: WideString read Get_Path write Set_Path;
    property MaxUserCount: Integer read Get_MaxUserCount write Set_MaxUserCount;
  end;
{$ENDIF}

function ADsOpenObject(lpszPathName,lpszUserName,lpszPassword : WideString;dwReserved : DWORD; const riid:TGUID; out ppObject): HResult; stdcall; external 'activeds.dll';

procedure ListConnectedSessions;
const
   lpszUserName ='';
   lpszPassword ='';
   lpszComputer ='.';
var
  FSO             : IADsFileServiceOperations;
  Sessions        : IADsCollection;
  Session         : IADsSession;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
  dt              : TDateTime;
begin
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsFileServiceOperations,FSO));
  Sessions := FSO.Sessions;
  oEnum:= IUnknown(Sessions._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    Session:=IUnknown(rgvar) as IADsSession;
    try
      Writeln('Computer        '+Session.Computer);
      dt := Session.ConnectTime / SecsPerDay;
      Writeln('Connected Time  '+FormatDateTime('hh:nn:ss',dt));
      dt := Session.IdleTime / SecsPerDay;
      Writeln('Idle Time       '+FormatDateTime('hh:nn:ss',dt));
      Writeln('Name            '+Session.Name);
      Writeln('User            '+Session.User);
      Writeln('');
    finally
      rgvar:=Unassigned;
    end;
  end;
end;

procedure ListSharedResourcesInUse;
const
   lpszUserName ='';
   lpszPassword ='';
   lpszComputer ='.';
var
  FSO             : IADsFileServiceOperations;
  Resources       : IADsCollection;
  Resource        : IADsResource;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
begin
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsFileServiceOperations,FSO));
  Resources := FSO.Resources;
  oEnum:= IUnknown(Resources._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    Resource:=IUnknown(rgvar) as IADsResource;
    try
      try
       Writeln(Format('Resource %s User %s LockCount %d',[Resource.Path, Resource.User, Resource.LockCount]));
      except
        on E:EOleException  do
        if E.ErrorCode<> HResult($80070002) then  //ignore path not found exception
         raise;
      end;
    finally
      rgvar:=Unassigned;
    end;

  end;
end;

procedure ListShared;
const
   lpszUserName ='';
   lpszPassword ='';
   lpszComputer ='.';
var
  Shares          : IADsContainer;
  Share           : IADsFileShare;
  rgvar           : OleVariant;
  pceltFetched    : Cardinal;
  oEnum           : IEnumvariant;
begin
  OleCheck(ADsOpenObject(Format('WinNT://%s/LanmanServer',[lpszComputer]), lpszUserName, lpszPassword, ADS_SECURE_AUTHENTICATION,IID_IADsContainer,Shares));
  oEnum:= IUnknown(Shares._NewEnum) as IEnumVariant;
  while oEnum.Next(1, rgvar, pceltFetched) = 0 do
  begin
    Share:=IUnknown(rgvar) as IADsFileShare;
    try
      Writeln('CurrentUserCount '+IntToStr(Share.CurrentUserCount));
      Writeln('Host Computer    '+Share.HostComputer);
      Writeln('Description      '+Share.Description);
      Writeln('Path             '+Share.Path);
      Writeln('Max User Count   '+IntToStr(Share.MaxUserCount));
      Writeln('');
    finally
     rgvar:=Unassigned;
    end;
  end;
end;

begin
 try
    CoInitialize(nil);
    try
      ListSharedResourcesInUse;
      ListConnectedSessions;
      ListShared;
    finally
      CoUninitialize;
    end;
 except
    on E:EOleException  do
        Writeln(Format('EOleException %s Code %x',[E.Message,E.ErrorCode]));
    on E:EOleSysError  do
        Writeln(Format('EOleSysError  %s Code %x',[E.Message,E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.


36 Comments

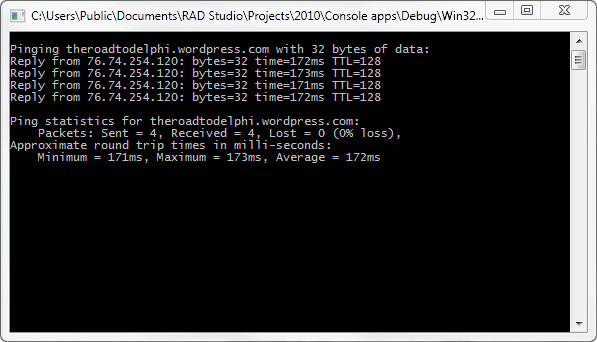

Making a PING with Delphi and the WMI

Typically we use the IcmpSendEcho function or a component like TIdIcmpClient to make a ping request from Delphi. Today I will show you another way to do this using the WMI (Windows Management Instrumentation).

The WMI class which allow you to make a ping request is Win32_PingStatus, to use this class you only need to pass the parameter Address value in your WQL sentence , the form of the Address parameter can be either the computer name (ACCOUNT-PC), IPv4 address (192.168.154.102), or IPv6 address (2010:836B:4179::836B:4179).

SELECT * FROM Win32_PingStatus where Address='www.google.com'

Some of the advantages of use this class to make a ping is which supports IPv4 addresses and IPv6 addresses (Starting with Windows Vista) , and you can set the ping parameters in a single WQL sentence.

For example if you want send a Buffer of 64 bytes (instead of the 32 default size) and resolve the address of the host server you only need to write a sentence like this :

SELECT * FROM Win32_PingStatus where Address='192.168.1.221' AND BufferSize=64 AND ResolveAddressNames=TRUE

Now check this sample console application.

program WMIPing;

{$APPTYPE CONSOLE}

uses
  SysUtils,
  ActiveX,
  ComObj,
  Variants;

function GetStatusCodeStr(statusCode:integer) : string;
begin
  case statusCode of
    0     : Result:='Success';
    11001 : Result:='Buffer Too Small';
    11002 : Result:='Destination Net Unreachable';
    11003 : Result:='Destination Host Unreachable';
    11004 : Result:='Destination Protocol Unreachable';
    11005 : Result:='Destination Port Unreachable';
    11006 : Result:='No Resources';
    11007 : Result:='Bad Option';
    11008 : Result:='Hardware Error';
    11009 : Result:='Packet Too Big';
    11010 : Result:='Request Timed Out';
    11011 : Result:='Bad Request';
    11012 : Result:='Bad Route';
    11013 : Result:='TimeToLive Expired Transit';
    11014 : Result:='TimeToLive Expired Reassembly';
    11015 : Result:='Parameter Problem';
    11016 : Result:='Source Quench';
    11017 : Result:='Option Too Big';
    11018 : Result:='Bad Destination';
    11032 : Result:='Negotiating IPSEC';
    11050 : Result:='General Failure'
    else
    result:='Unknow';
  end;
end;


//The form of the Address parameter can be either the computer name (wxyz1234), IPv4 address (192.168.177.124), or IPv6 address (2010:836B:4179::836B:4179).
procedure  Ping(const Address:string;Retries,BufferSize:Word);
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
  i             : Integer;

  PacketsReceived : Integer;
  Minimum         : Integer;
  Maximum         : Integer;
  Average         : Integer;
begin;
  PacketsReceived:=0;
  Minimum        :=0;
  Maximum        :=0;
  Average        :=0;
  Writeln('');
  Writeln(Format('Pinging %s with %d bytes of data:',[Address,BufferSize]));
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  //FWMIService   := FSWbemLocator.ConnectServer('192.168.52.130', 'root\CIMV2', 'user', 'password');
  for i := 0 to Retries-1 do
  begin
    FWbemObjectSet:= FWMIService.ExecQuery(Format('SELECT * FROM Win32_PingStatus where Address=%s AND BufferSize=%d',[QuotedStr(Address),BufferSize]),'WQL',0);
    oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
    if oEnum.Next(1, FWbemObject, iValue) = 0 then
    begin
      if FWbemObject.StatusCode=0 then
      begin
        if FWbemObject.ResponseTime>0 then
          Writeln(Format('Reply from %s: bytes=%s time=%sms TTL=%s',[FWbemObject.ProtocolAddress,FWbemObject.ReplySize,FWbemObject.ResponseTime,FWbemObject.TimeToLive]))
        else
          Writeln(Format('Reply from %s: bytes=%s time=<1ms TTL=%s',[FWbemObject.ProtocolAddress,FWbemObject.ReplySize,FWbemObject.TimeToLive]));

        Inc(PacketsReceived);

        if FWbemObject.ResponseTime>Maximum then
        Maximum:=FWbemObject.ResponseTime;

        if Minimum=0 then
        Minimum:=Maximum;

        if FWbemObject.ResponseTime<Minimum then
        Minimum:=FWbemObject.ResponseTime;

        Average:=Average+FWbemObject.ResponseTime;
      end
      else
      if not VarIsNull(FWbemObject.StatusCode) then
        Writeln(Format('Reply from %s: %s',[FWbemObject.ProtocolAddress,GetStatusCodeStr(FWbemObject.StatusCode)]))
      else
        Writeln(Format('Reply from %s: %s',[Address,'Error processing request']));
    end;
    FWbemObject:=Unassigned;
    FWbemObjectSet:=Unassigned;
    //Sleep(500);
  end;

  Writeln('');
  Writeln(Format('Ping statistics for %s:',[Address]));
  Writeln(Format('    Packets: Sent = %d, Received = %d, Lost = %d (%d%% loss),',[Retries,PacketsReceived,Retries-PacketsReceived,Round((Retries-PacketsReceived)*100/Retries)]));
  if PacketsReceived>0 then
  begin
   Writeln('Approximate round trip times in milli-seconds:');
   Writeln(Format('    Minimum = %dms, Maximum = %dms, Average = %dms',[Minimum,Maximum,Round(Average/PacketsReceived)]));
  end;
end;


begin
 try
    CoInitialize(nil);
    try
      //Ping('192.168.52.130',4,32);
      Ping('theroadtodelphi.wordpress.com',4,32);
    finally
      CoUninitialize;
    end;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Readln;
end.

And the output


5 Comments

Showing the location of the open TCP connections of my computer on a Web Map

I’ve been looking for more applications for the ip geolocation. so I wrote this small tool wich show the open remote tcp connections location on a Web Map (Google Maps, Bing Maps, Yahoo Maps and OpenStreetMap).

DISCLAIMER
This application is only for educational purposes. because some maps services does not allow to display content from a desktop application.

Check the screenshots samples

Showing the location of a ip address in Google Maps

Showing the location of a ip address in Yahoo Maps

Showing the location of a ip address in Bing Maps

Showing the location of a ip address in OpenStreet Maps

First we need obtain the current tcp connections, to do this we can use the GetExtendedTcpTable function wich is part of the iphlpapi.dll.

the header declaration goes like this

type
   TCP_TABLE_CLASS = Integer;

  PMibTcpRowOwnerPid = ^TMibTcpRowOwnerPid;
  TMibTcpRowOwnerPid  = packed record
    dwState     : DWORD;
    dwLocalAddr : DWORD;
    dwLocalPort : DWORD;
    dwRemoteAddr: DWORD;
    dwRemotePort: DWORD;
    dwOwningPid : DWORD;
    end;

  PMIB_TCPTABLE_OWNER_PID  = ^MIB_TCPTABLE_OWNER_PID;
  MIB_TCPTABLE_OWNER_PID = packed record
   dwNumEntries: DWord;
   table: array [0..ANY_SIZE - 1] OF TMibTcpRowOwnerPid;
  end;

var
   GetExtendedTcpTable:function  (pTcpTable: Pointer; dwSize: PDWORD; bOrder: BOOL; lAf: ULONG; TableClass: TCP_TABLE_CLASS; Reserved: ULONG): DWord; stdcall;

To use this function we need to determine size of the TcpTable returned, to allocate the memory. (look the first parameter is set to nil)

      TableSize := 0;
      Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0);
      if Error <> ERROR_INSUFFICIENT_BUFFER then
         Exit;

Now in the TableSize variable we have the size of the TcpTable, so we can retrieve the tcp info passing in the first parameter the buffer to contain the data

var
FExtendedTcpTable : PMIB_TCPTABLE_OWNER_PID;

 GetMem(FExtendedTcpTable, TableSize);
 GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0)

this is the full code to fill the listview with the tcp connections

procedure LoadTCPConnections;
var
   Server       : Cardinal;
   Error        : DWORD;
   TableSize    : DWORD;
   Snapshot     : THandle;
   i            : integer;
   ListItem     : TListItem;
   IpAddress    : in_addr;
   FCurrentPid  : Cardinal;
   IsLocal      : Boolean;
   RemoteIp     : string;
begin
   ListViewIPaddress.Items.BeginUpdate;
   try
     ListViewIPaddress.Items.Clear;
     FCurrentPid:=GetCurrentProcessId();
     FExternalIpAddress:=GetExternalIP;
      TableSize := 0;
      Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0);  //get the size of the TcpTable
      if Error <> ERROR_INSUFFICIENT_BUFFER then
         Exit;
      try
         GetMem(FExtendedTcpTable, TableSize);
         SnapShot := CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0); //take a Snapshot of the running process to obtain the exe name of the pid associated
         if GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0) = NO_ERROR then
            for i := 0 to FExtendedTcpTable.dwNumEntries - 1 do // for each record in the tcptable

            //avoid show connections of the current application and system connections (PID=0)
            if (FExtendedTcpTable.Table[i].dwOwningPid<>0) and (FExtendedTcpTable.Table[i].dwOwningPid<>FCurrentPid) and (FExtendedTcpTable.Table[i].dwRemoteAddr<>0) then
            begin
               IpAddress.s_addr := FExtendedTcpTable.Table[i].dwRemoteAddr;
               RemoteIp  := string(inet_ntoa(IpAddress));
               Server     :=  FExtendedTcpTable.Table[i].dwRemoteAddr;
               //determine if the remote ip is local or not
               IsLocal    := (FLocalIpAddresses.IndexOf(RemoteIp)>=0) or (Server=0) or (Server=16777343);

               if CheckBoxRemote.Checked and IsLocal then Continue;
               if FExtendedTcpTable.Table[i].dwRemoteAddr = 0 then
               FExtendedTcpTable.Table[i].dwRemotePort := 0;
               //Fill the Listview
               ListItem:=ListViewIPaddress.Items.Add;

               ListItem.ImageIndex:=-1;
               ListItem.Caption:=IntToStr(FExtendedTcpTable.Table[i].dwOwningPid);
               ListItem.SubItems.Add(GetPIDName(SnapShot,FExtendedTcpTable.Table[i].dwOwningPid));
               ListItem.SubItems.Add('TCP');
               ListItem.SubItems.Add(FLocalComputerName);

               IpAddress.s_addr := FExtendedTcpTable.Table[i].dwLocalAddr;
               ListItem.SubItems.Add(string(inet_ntoa(IpAddress))); //get the local ip address
               ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwLocalPort)));

               ListItem.SubItems.AddObject('',Pointer(FExtendedTcpTable.Table[i].dwRemoteAddr));

               ListItem.SubItems.Add(RemoteIp);
               ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwRemotePort)));
               ListItem.SubItems.Add(MIB_TCP_STATE[FExtendedTcpTable.Table[i].dwState]);

               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
            end;

      finally
         FreeMem(FExtendedTcpTable);
      end;

   finally
    ListViewIPaddress.Items.EndUpdate;
   end;
    //now for resolve the server location and show the flag icon we run a tthread for each row in the listview
    for i:= 0 to ListViewIPaddress.Items.Count-1 do
    begin
      Server:=Cardinal(ListViewIPaddress.Items.Item[i].SubItems.Objects[COLUMN_RemoteServer]);
      IsLocal    := (FLocalIpAddresses.IndexOf(ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP])>=0) or (Server=0) or (Server=16777343);
      if not IsLocal then
        TResolveServerName.Create(Server,ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP],ImageList1,ListViewIPaddress.Items.Item[i]);
    end;
end;

The code of the thread for resolve the ip locations and retrieve the flags images.

type
   TResolveGeoLocation = class(TThread)
   private
     FListItem         : TListItem;
     FGeoInfo          : TGeoInfoClass;
     FRemoteHostName   : string;
     FRemoteIP         : string;
     FServer           : Cardinal;
     FImageList        : TImageList;
     procedure SetData;
   protected
     procedure Execute; override;
     constructor Create(Server : Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem);
   end;

constructor TResolveGeoLocation.Create(Server: Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem);
begin
   inherited Create(False);
   FServer   :=Server;
   FRemoteIP :=RemoteIP;
   FImageList:=ImageList;
   FListItem :=ListItem;
   FreeOnTerminate := True;
end;

procedure TResolveGeoLocation.Execute;
begin
  FreeOnTerminate := True;
  FRemoteHostName := GetRemoteHostName(FServer);
  FGeoInfo:=TGeoInfoClass.Create(FRemoteIP);
  try
   Synchronize(SetData);
  finally
   FGeoInfo.Free;
  end;
end;

procedure TResolveGeoLocation.SetData;
var
   Bitmap  : TBitmap;
begin
    FListItem.SubItems[COLUMN_RemoteServer]:=FRemoteHostName;
    FListItem.SubItems[COLUMN_Country]     :=FGeoInfo.GeoInfo.CountryName;
    FListItem.SubItems[COLUMN_City]        :=FGeoInfo.GeoInfo.City;
    FListItem.SubItems[COLUMN_Latitude]    :=FGeoInfo.GeoInfo.LatitudeToString;
    FListItem.SubItems[COLUMN_Longitude]   :=FGeoInfo.GeoInfo.LongitudeToString;

    if Assigned(FGeoInfo.GeoInfo.FlagImage) then
    begin
       Bitmap := TBitmap.Create;
      try
        Bitmap.Assign(FGeoInfo.GeoInfo.FlagImage);
        if (Bitmap.Width=FImageList.Width) and ((Bitmap.Height=FImageList.Height)) then
         FListItem.ImageIndex:=FImageList.Add(Bitmap,nil)
        else
         Bitmap.Width;
      finally
        Bitmap.Free;
      end;
    end;

    FListItem.MakeVisible(False);
end;

Now the class to obtain the geolocation info and the flag of the country.

type
 PGeoInfo   = ^TGeoInfo;
 TGeoInfo   = record
  Status        : string;
  CountryCode   : string;
  CountryName   : string;
  RegionCode    : string;
  City          : string;
  ZipPostalCode : string;
  Latitude      : Double;
  Longitude     : Double;
  TimezoneName  : string;
  Gmtoffset     : string;
  Isdst         : string;
  FlagImage     : TPngImage;
  function LatitudeToString:string;
  function LongitudeToString:string;
 end;

 TGeoInfoClass = class
 private
    FIpAddress : string;
    FGeoInfo   : TGeoInfo;
 public
  property  GeoInfo : TGeoInfo read FGeoInfo;
  constructor Create(IpAddress : string); overload;
  Destructor  Destroy; override;
 end;

and the new function to retrieve the geolocation data from ipinfodb.com

procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo);
var
  XMLDoc        : OleVariant;
  ANode         : OleVariant;
  FormatSettings: TFormatSettings;
  d             : Double;
  Success       : HResult;
  UrlImage      : string;
  XmlContent    : string;
  StreamData    : TMemoryStream;
begin
  GeoInfo.FlagImage:=nil;
  Success := CoInitializeEx(nil, COINIT_MULTITHREADED);
  try
      XmlContent:=WinInet_HttpGet(Format(UrlGeoLookupInfo,[IpAddress]));
      if XmlContent<>'' then
      begin
          XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0');
          XMLDoc.async := false;
          XMLDoc.LoadXML(XmlContent);
          XMLDoc.setProperty('SelectionLanguage','XPath');
          ANode:=XMLDoc.selectSingleNode('/Response/Status');
          if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/CountryCode');
          if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/CountryName');
          if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/RegionCode');
          if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/City');
          if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode');
          if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text;

          ANode:=XMLDoc.selectSingleNode('/Response/Latitude');
          if not VarIsNull(ANode) then
          begin
            FormatSettings.DecimalSeparator:='.';
            d:=StrToFloat(ANode.Text,FormatSettings);
            GeoInfo.Latitude:=d;
          end;

          ANode:=XMLDoc.selectSingleNode('/Response/Longitude');
          if not VarIsNull(ANode) then
          begin
            FormatSettings.DecimalSeparator:='.';
            d:=StrToFloat(ANode.Text,FormatSettings);
            GeoInfo.Longitude:=d;
          end;

          ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName');
          if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset');
          if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/Isdst');
          if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text;
      end;
  finally
    case Success of
      S_OK, S_FALSE: CoUninitialize;
    end;
  end;

  if GeoInfo.CountryCode<>'' then //get the image
  begin
    GeoInfo.FlagImage  := TPngImage.Create;
    StreamData         := TMemoryStream.Create;
    try
       UrlImage:=Format(UrlFlags,[LowerCase(GeoInfo.CountryCode)]);
          WinInet_HttpGet(UrlImage,StreamData);
          if StreamData.Size>0 then
          begin
            StreamData.Seek(0,0);
            try
              GeoInfo.FlagImage.LoadFromStream(StreamData);//load the image in a Stream
            except   //the image is not valid
              GeoInfo.FlagImage.Free;
              GeoInfo.FlagImage:=nil;
            end;
          end;
    finally
      StreamData.Free;
    end;
  end;

end;

The part of the maps is easy, just only need load a html page in a Twebbrowser with the Latitude and longitude to show in the current selected map

procedure GetMapListItem();
var
 HTMLWindow2  : IHTMLWindow2;
 MemoryStream : TMemoryStream;
 Item         : TListItem;
 Lat          : AnsiString;
 Lng          : AnsiString;
 Title        : AnsiString;
 MapType      : string;
 MapStr       : AnsiString;

//sorry , but the html pages contains a lot of % (porcent) chars
function ReplaceTag(const PageStr,Tag,NewValue:string):AnsiString;
begin
   Result:=AnsiString(StringReplace(PageStr,Tag,NewValue,[rfReplaceAll]));
end;

begin
    Item:=ListViewIPaddress.Selected;
    if not Assigned(Item) then  exit;
    if Item.SubItems.Count<COLUMN_Latitude then Exit;
    if Item.SubItems[COLUMN_Latitude]='' then Exit;

    Lat:=AnsiString(Item.SubItems[COLUMN_Latitude]);
    Lng:=AnsiString(Item.SubItems[COLUMN_Longitude]);
    Title:=AnsiString(Format('(%s,%s) %s - %s',[Lat,Lng,Item.SubItems[COLUMN_RemoteServer],Item.SubItems[COLUMN_RemoteIP]]));
    MapType:=ComboBoxTypes.Text;

   WebBrowser1.Navigate('about:blank');
   while WebBrowser1.ReadyState < READYSTATE_INTERACTIVE do
    Application.ProcessMessages;

    if Assigned(WebBrowser1.Document) then
    begin
      MemoryStream := TMemoryStream.Create;
      try
        case FCurrentMapType of
          Google_Maps    : MapStr:=GoogleMapsPage;
          Yahoo_Map      : MapStr:=YahooMapsPage;
          Bing_Map       : MapStr:=BingsMapsPage;
          Open_Streetmap : MapStr:=OpenStreetMapsPage;
        end;

        MapStr:=ReplaceTag(MapStr,'[Lat]',Lat);
        MapStr:=ReplaceTag(MapStr,'[Lng]',Lng);
        MapStr:=ReplaceTag(MapStr,'[Title]',Title);
        MapStr:=ReplaceTag(MapStr,'[Type]',MapType);
        MemoryStream.WriteBuffer(Pointer(MapStr)^, Length(MapStr));

        MemoryStream.Seek(0, soFromBeginning);
        (WebBrowser1.Document as IPersistStreamInit).Load(TStreamAdapter.Create(MemoryStream));
      finally
         MemoryStream.Free;
      end;
      HTMLWindow2 := (WebBrowser1.Document as IHTMLDocument2).parentWindow;
    end;
end;

and finally the html code embedded in a delphi const string for each map type

const
GoogleMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://maps.google.com/maps/api/js?sensor=true"></script> '+
'<script type="text/javascript"> '+
'  var map;'+
'  function initialize() { '+
'    geocoder = new google.maps.Geocoder();'+
'    var latlng = new google.maps.LatLng([Lat],[Lng]); '+
'    var myOptions = { '+
'      zoom: 12, '+
'      center: latlng, '+
'      mapTypeId: google.maps.MapTypeId.[Type] '+
'    }; '+
'    map = new google.maps.Map(document.getElementById("map_canvas"), myOptions); '+
'    var marker = new google.maps.Marker({'+
'      position: latlng, '+
'      title: "[Title]", '+
'      map: map '+
'  });'+
'  } '+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

YahooMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://api.maps.yahoo.com/ajaxymap?v=3.8&amp;appid=08gJIU7V34H9WlTSGrIyEIb73GLT5TpAaF2HzOSJIuTO2AVn6qzftRPDQtcQyynObIG8"></script> '+
'<script type="text/javascript"> '+
'  function initialize() '+
'{'+
'  var map = new YMap ( document.getElementById ( "map_canvas" ) );'+
'  map.addTypeControl();'+
'  map.addZoomLong(); '+
'  map.addPanControl();'+
'	 map.setMapType ( YAHOO_MAP_[Type] );'+
'	 var geopoint = new YGeoPoint ( [Lat] , [Lng] ); '+
'	 map.drawZoomAndCenter ( geopoint , 5 );'+
'  var newMarker= new YMarker(geopoint); '+
'  var markerMarkup = "[Title]";'+
'	 newMarker.openSmartWindow(markerMarkup);'+
'	 map.addOverlay(newMarker);'+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

BingsMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://dev.virtualearth.net/mapcontrol/mapcontrol.ashx?v=6.2"></script> '+
'<script type="text/javascript"> '+
'var map = null; '+
'  function initialize() '+
'{'+
'        map = new VEMap("map_canvas"); '+
'        map.LoadMap(new VELatLong([Lat],[Lng]), 10 ,"h" ,false);'+
'        map.SetMapStyle(VEMapStyle.[Type]);'+
'        map.ShowMiniMap((document.getElementById("map_canvas").offsetWidth - 180), 200, VEMiniMapSize.Small);'+
'        map.SetZoomLevel (12);'+
'	       shape = new VEShape(VEShapeType.Pushpin, map.GetCenter()); '+
'	       shape.SetTitle("[Title]");'+
'	       map.AddShape ( shape );'+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

OpenStreetMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script src="http://www.openlayers.org/api/OpenLayers.js"></script> '+
'<script type="text/javascript"> '+
'  function initialize() '+
'{'+
'    map = new OpenLayers.Map("map_canvas");'+
'    map.addLayer(new OpenLayers.Layer.OSM()); '+
'    var lonLat = new OpenLayers.LonLat( [Lng] , [Lat] ) '+
'          .transform( '+
'            new OpenLayers.Projection("EPSG:4326"), '+
'            map.getProjectionObject() '+
'          ); '+
'    var zoom=16; '+
'    var markers = new OpenLayers.Layer.Markers( "Markers" );  '+
'    map.addLayer(markers); '+
'    markers.addMarker(new OpenLayers.Marker(lonLat)); '+
'    map.setCenter (lonLat, zoom); '+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

Check the full source code on Github


7 Comments

Building a traceroute application with IP geolocation using Delphi

Using the free service of ip geolocation provided by http://ipinfodb.com/ , you can do very cool things.

See this sample wich intregrates a trace route and the ip geolocation, to obtain the location of every server included in the trace of an ip address.

First we define the stucture to contain the geolocation data

type
 TGeoInfo   = record
  Status        : string;
  CountryCode   : string;
  CountryName   : string;
  RegionCode    : string;
  City          : string;
  ZipPostalCode : string;
  Latitude      : double;
  Longitude     : double;
  TimezoneName  : string;
  Gmtoffset     : string;
  Isdst         : string;
  function LatitudeToString:string;
  function LongitudeToString:string;
 end;

function TGeoInfo.LatitudeToString: string; //this helper function retrieve the latitute as a string, forcing the decimal separator to a dot
var
  FormatSettings: TFormatSettings;
begin
  FormatSettings.DecimalSeparator:='.';
  result:=FloatToStr(Latitude,FormatSettings);
end;

function TGeoInfo.LongitudeToString: string;//this helper function retrieve the longitude as a string, forcing the decimal separator to a dot
var
  FormatSettings: TFormatSettings;
begin
  FormatSettings.DecimalSeparator:='.';
  result:=FloatToStr(Longitude,FormatSettings);
end;

Now the function to retrieve the geolocation, the url was updated to use the new api published the 2010-11-15.

const
//the key used in this link if only for demo purposes, create your own free key registering in http://ipinfodb.com/
 UrlGeoLookupInfo  ='http://api.ipinfodb.com/v2/ip_query.php?key=a069ef201ef4c1b61231b3bdaeb797b5488ef879effb23d269bda3a572dc704c&ip=%s&timezone=true';

procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo);
var
  lHTTP         : TIdHTTP;
  lStream       : TStringStream;
  XMLDoc        : OleVariant;
  ANode         : OleVariant;
  FormatSettings: TFormatSettings;
  d             : Double;
  Success       : HResult;
begin
  lHTTP   := TIdHTTP.Create(nil);
  lStream := TStringStream.Create('');
  Success := CoInitializeEx(nil, COINIT_MULTITHREADED);//necesary to support MULTITHREAD
  try
      lHTTP.Get(Format(UrlGeoLookupInfo,[IpAddress]), lStream);
      lStream.Seek(0,soFromBeginning);
      XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0');
      XMLDoc.async := false;
      XMLDoc.LoadXML(lStream.ReadString(lStream.Size));
      XMLDoc.setProperty('SelectionLanguage','XPath');
      ANode:=XMLDoc.selectSingleNode('/Response/Status');
      if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryCode');
      if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryName');
      if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/RegionCode');
      if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/City');
      if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode');
      if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text;

      ANode:=XMLDoc.selectSingleNode('/Response/Latitude');
      if not VarIsNull(ANode) then
      begin
        FormatSettings.DecimalSeparator:='.';
        d:=StrToFloat(ANode.Text,FormatSettings);
        GeoInfo.Latitude:=d;
      end;

      ANode:=XMLDoc.selectSingleNode('/Response/Longitude');
      if not VarIsNull(ANode) then
      begin
        FormatSettings.DecimalSeparator:='.';
        d:=StrToFloat(ANode.Text,FormatSettings);
        GeoInfo.Longitude:=d;
      end;

      ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName');
      if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset');
      if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Isdst');
      if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text;
  finally
    lHTTP.Free;
    lStream.Free;
    case Success of
      S_OK, S_FALSE: CoUninitialize;
    end;
  end;
end;

Now using the IcmpCreateFile,IcmpCloseHandle and IcmpSendEcho functions we can write a trace route function.

function IcmpCreateFile: THandle; stdcall; external 'ICMP.DLL' name 'IcmpCreateFile';
function IcmpCloseHandle(IcmpHandle: THandle): BOOL; stdcall;  external 'ICMP.DLL' name 'IcmpCloseHandle';
function IcmpSendEcho(IcmpHandle : THandle; DestinationAddress: Longint;  RequestData: Pointer; RequestSize: Word; RequestOptions: PIP_option_information; ReplyBuffer: Pointer; ReplySize, Timeout: DWORD): DWORD; stdcall;  external 'ICMP.DLL' name 'IcmpSendEcho';

Check the definition of the TGeoTraceThread TThread

  ProcTraceCallBack    = procedure(const ServerName,ServerIp:string) of object;
  ProcTraceLogCallBack = procedure(const Msg:string) of object;
  TGeoTraceThread = class(TThread)
  private
    DestAddr            : in_addr;
    TraceHandle         : THandle;
    FDestAddress        : string;
    FLogString          : string;
    FIcmpTimeOut        : Word;
    FMaxHops            : Word;
    FResolveHostName    : boolean;
    FServerCallBack     : string;
    FServerIpCallBack   : string;
    FCallBack           : ProcTraceCallBack;
    FLogCallBack        : ProcTraceLogCallBack;
    FIncludeGeoInfo     : boolean;
    FGeoInfo            : TGeoInfo;
    function  Trace(const Ttl: Byte): Longint;
    procedure Log;
    procedure IntCallBack;
  public
    procedure Execute; override;
    property  MaxHops : Word read FMaxHops write FMaxHops default 30;
    property  DestAddress : string read FDestAddress write FDestAddress;
    property  IcmpTimeOut : Word read FIcmpTimeOut write FIcmpTimeOut default 5000;
    property  ResolveHostName : boolean read FResolveHostName write FResolveHostName default True;
    property  IncludeGeoInfo : boolean read FIncludeGeoInfo write FIncludeGeoInfo default True;
    property  CallBack : ProcTraceCallBack read FCallBack write FCallBack;
    property  MsgCallBack : ProcTraceLogCallBack read FLogCallBack write FLogCallBack;
  end;

and now the implementation of the TGeoTraceThread TThread, the code was commented to explain the logic of the trace route.

procedure TGeoTraceThread.Execute;
const
  MaxPings = 3;
var
  HostName   : String;
  HostReply  : Boolean;
  HostIP     : LongInt;
  HostEnt    : PHostEnt;
  WSAData    : TWSAData;
  WsaErr     : DWORD;
  OldTick    : DWORD;
  PingTime   : DWORD;
  TraceResp  : Longint;
  Index      : Word;
  FCurrentTTL: Word;
  sValue     : string;
  FGeoInfoStr: string;
  IpAddress  : in_addr;
begin

  WsaErr := WSAStartup($101, WSAData);
  if WsaErr <> 0 then
  begin
    FLogString := SysErrorMessage(WSAGetLastError);
    if Assigned(FLogCallBack)then Synchronize(Log);
    Exit;
  end;

  try
    HostEnt := gethostbyname(PAnsiChar(AnsiString(FDestAddress))); //get the host to trace
    if not Assigned(HostEnt) then
    begin
      FLogString := SysErrorMessage(WSAGetLastError);
      if Assigned(FLogCallBack) then Synchronize(Log);
      Exit;
    end;

    DestAddr     := PInAddr(in_addr(HostEnt.h_addr_list^))^; //get the address of the host to trace
    TraceHandle := IcmpCreateFile;

    if TraceHandle = INVALID_HANDLE_VALUE then
    begin
      FLogString := SysErrorMessage(GetLastError);
      if Assigned(FLogCallBack) then Synchronize(Log);
      Exit;
    end;

    try

      if Assigned(FLogCallBack)then //check if the callback function to log the data is assigned
      begin
        FLogString := Format('Tracing route to %s [%s]',[FDestAddress,string(inet_ntoa(DestAddr))]);
        Synchronize(Log); //Log the data
        FLogString := Format('over a maximum of %d hops ',[FMaxHops]);
        Synchronize(Log);//log the data
      end;

      TraceResp    := 0;
      FCurrentTTL  := 0;

      while (TraceResp <> DestAddr.S_addr) and (FCurrentTTL < FMaxHops) do //begin the trace
      begin
        Inc(FCurrentTTL);
        HostReply := False;
        sValue:='';
        for Index := 0 to MaxPings-1 do // make 3 pings to the current host
        begin
          OldTick   := GetTickCount; //save the current time
          TraceResp := Trace(FCurrentTTL); //do the trace

          if TraceResp = -1 then //check for the response of the trace, -1 indicate a request time-out
            FLogString := '    *    '
          else
          begin
            PingTime   :=GetTickCount - OldTick; //calculate the elapsed time in ms

            if PingTime>0 then
             FLogString := Format('%6d ms', [PingTime])
            else
             FLogString := Format('    <%d ms', [1]);

            HostReply := True;
            HostIP    := TraceResp;
          end;

          if Index = 0 then
            FLogString := Format('%3d %s', [FCurrentTTL, FLogString]);

          sValue:=sValue+FLogString;
        end;

        FLogString:=sValue+' ';

        if HostReply then
        begin
          IpAddress.s_addr :=HostIP;
          sValue :=string(inet_ntoa(IpAddress)); //get the ip address (x.x.x.x) of the current host

          FGeoInfoStr:='';
          if FIncludeGeoInfo then //makes the magic now
          begin
            GetGeoInfo(sValue,FGeoInfo); //get the geolocation info about the current host
            FGeoInfoStr:=Format('(%s,%s) %s-%s TimeZone %s',[FGeoInfo.LongitudeToString,FGeoInfo.LatitudeToString,FGeoInfo.CountryName,FGeoInfo.City,FGeoInfo.TimezoneName]); //construct the string to log the data
          end;

          FServerCallBack  :='';
          FServerIpCallBack:=sValue;
          if FResolveHostName then //only if the property ResolveHostName is Tru try to resolve the current host name
          begin
            HostName         := GetRemoteHostName(HostIP);
            FServerCallBack  := HostName;
            if HostName <> '' then
              FLogString := FLogString + HostName + ' [' + sValue + '] '+FGeoInfoStr
            else
              FLogString := FLogString + sValue +' '+ FGeoInfoStr;
          end
          else
          FLogString := FLogString + sValue+' '+ FGeoInfoStr;

          if Assigned(FCallBack) then Synchronize(IntCallBack);
        end
        else
          FLogString := FLogString+' Request timed out.';

        FLogString := '  ' + FLogString;
        if Assigned(FLogCallBack) then Synchronize(Log);
      end;

    finally
      IcmpCloseHandle(TraceHandle);
    end;

    if Assigned(FLogCallBack) then
    begin
      FLogString := 'Trace complete'; //we are done
      Synchronize(Log);
    end;

  finally
    WSACleanup;
  end;
end;

function TGeoTraceThread.Trace(const Ttl: Byte): Longint;
var
  IPOptionInfo: TIPOptionInformation;
  IcmpEcho    : PIcmpEchoReply;
  IcpmErr     : Integer;
begin
  GetMem(IcmpEcho, SizeOf(TIcmpEchoReply));
  try
    IPOptionInfo.Ttl         := Ttl;
    IPOptionInfo.Tos         := 0;
    IPOptionInfo.Flags       := 0;
    IPOptionInfo.OptionsSize := 0;
    IPOptionInfo.OptionsData := nil;

    IcpmErr := IcmpSendEcho(TraceHandle,DestAddr.S_addr,nil,0,@IPOptionInfo,IcmpEcho,SizeOf(TIcmpEchoReply),FIcmpTimeOut); //send the echo request and wait for any echo response replies
    if IcpmErr = 0 then //check for the reply
    begin
      Result := -1;
      Exit;
    end;
    Result := IcmpEcho.Address;
  finally
    FreeMem(IcmpEcho); //dispose the memory allocated
  end;
end;

procedure TGeoTraceThread.IntCallBack; //this callback function report the current server name and ip address
begin
  FCallBack(FServerCallBack,FServerIpCallBack);
end;

procedure TGeoTraceThread.Log; //this callback log the data
begin
  FLogCallBack(FLogString);
end;

finally you can call the the TGeoTraceThread class in this way

procedure TFrmMainTrace.TraceAddress;
var
  Trace : TGeoTraceThread;
begin
    if Trim(EditAddress.Text)='' then  Exit;
    Trace:=TGeoTraceThread.Create(True);
    Trace.FreeOnTerminate    :=True;
    Trace.DestAddress        :=EditAddress.Text;
    Trace.MaxHops            :=30; //hops
    Trace.ResolveHostName    :=True;
    Trace.IcmpTimeOut        :=5000; //timeout in ms
    Trace.MsgCallBack        :=TraceLogCallBack; //assign the callback
    Trace.IncludeGeoInfo     :=True; //set this property true option to display the geoloccation info result in the trace
    Trace.Start;
end;

procedure TFrmMainTrace.TraceLogCallBack(const Msg: string);
begin
  MemoTrace.Lines.Add(Msg);
  MemoTrace.Perform(WM_VSCROLL, SB_BOTTOM, 0);
end;

and the output look like this, check which the trace includes the latitude, longitude, timezone, country and city for each host included in the trace.

Tracing route to theroadtodelphi.wordpress.com [76.74.254.123]
over a maximum of 30 hops
    1     16 ms    <1 ms    <1 ms DD-WRT [192.168.1.2] (0,0) Reserved- TimeZone
    2     16 ms    <1 ms    16 ms 10.9.90.1 (0,0) Reserved- TimeZone
    3     <1 ms    16 ms    <1 ms sblx12gw.gtdinternet.com [190.196.63.126] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    4     <1 ms    16 ms    <1 ms 190.196.125.185 (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    5     <1 ms    16 ms    <1 ms ci1.te1-2.v218.cn1.gtdinternet.com [190.196.124.74] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    6     <1 ms    16 ms    <1 ms ci2.te1-1.ci1.gtdinternet.com [201.238.238.26] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    7     16 ms    <1 ms    15 ms ge13-0-0.santiago2.san.seabone.net [195.22.221.85] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    8     *        *        *      Request timed out.
    9    109 ms   125 ms   109 ms pos0-15-1-0.miami13.mia.seabone.net [195.22.221.205] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
   10    125 ms   109 ms   125 ms te7-2.miami7.mia.seabone.net [195.22.199.111] (-80.2939,25.7615) United States-Miami TimeZone America/New_York
   11    172 ms   187 ms   171 ms te-7-4.car2.Miami1.Level3.net [63.209.150.165] (-97,38) United States- TimeZone
   12    188 ms   187 ms   187 ms ae-31-51.ebr1.Miami1.Level3.net [4.69.138.94] (-97,38) United States- TimeZone
   13    172 ms   187 ms   171 ms ae-2-2.ebr1.Dallas1.Level3.net [4.69.140.133] (-97,38) United States- TimeZone
   14    171 ms   203 ms   187 ms ae-3-80.edge9.Dallas1.Level3.net [4.69.145.144] (-97,38) United States- TimeZone
   15    188 ms   171 ms   187 ms PEER-1-NETW.edge9.Dallas1.Level3.net [4.59.118.6] (-95.7402,29.1793) United States-West Columbia TimeZone America/Chicago
   16     *        *        *      Request timed out.
   17     *        *        *      Request timed out.
   18    187 ms   188 ms   187 ms wordpress.com [76.74.254.123] (-98.5353,29.4713) United States-San Antonio TimeZone America/Chicago
Trace complete

Check the source code on Github

(The demo project was compiled under Delphi XE, but the TGeoTraceThread class can be used with older versions of Delphi)


9 Comments

Getting IP address geolocation info with Delphi

ipinfodb.com provides a free service wich let you obtain geolocation info about any ip address. you can access this info parsing the content returned by this page.

the request must be done in this way

http://ipinfodb.com/ip_query.php?timezone=true&ip=204.236.220.71

UPDATE

The above url is not longer valid because to a New APIs are being introduced with API key. you must register in this site to get access to the info.

now you must use a url like this

http://api.ipinfodb.com/v2/ip_query.php?key=&ip=74.125.45.100&timezone=true

and the response look like this

<Response>
<Ip>204.236.220.71</Ip>
<Status>OK</Status>
<CountryCode>US</CountryCode>
<CountryName>United States</CountryName>
<RegionCode>53</RegionCode>
<RegionName>Washington</RegionName>
<City>Seattle</City>
<ZipPostalCode>98144</ZipPostalCode>
<Latitude>47.5839</Latitude>
<Longitude>-122.299</Longitude>
<TimezoneName>America/Los_Angeles</TimezoneName>
<Gmtoffset>-28800</Gmtoffset>
<Isdst>0</Isdst>
</Response>

Now using a TIdHTTP component you can get the result of the request to this page.

uses
  Classes,
  ComObj,
  Variants,
  IdHTTP,

type
 TGeoInfo   = record
  Status        : string;
  CountryCode   : string;
  CountryName   : string;
  RegionCode    : string;
  City          : string;
  ZipPostalCode : string;
  Latitude      : string;
  Longitude     : string;
  TimezoneName  : string;
  Gmtoffset     : string;
  Isdst         : string;
 end;

const
 UrlGeoLookupInfo  ='http://ipinfodb.com/ip_query.php?timezone=true&ip=%s';
 UrlGeoLookupInfo2 ='http://backup.ipinfodb.com/ip_query.php?timezone=true&ip=%s'; //backup server

procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo);
var
  lHTTP  : TIdHTTP;
  lStream: TStringStream;
  XMLDoc : OleVariant;
  ANode  : OleVariant;
begin
  lHTTP   := TIdHTTP.Create(nil);
  lStream := TStringStream.Create;
  try
      try
        lHTTP.Get(Format(UrlGeoLookupInfo,[IpAddress]), lStream); //get the request
      except
        lHTTP.Get(Format(UrlGeoLookupInfo2,[IpAddress]), lStream); //if something is wrong try using the backup server.
      end;
      lStream.Seek(0,0);
      XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0');
      XMLDoc.async := false;
      XMLDoc.LoadXML(lStream.ReadString(lStream.Size));
      XMLDoc.setProperty('SelectionLanguage','XPath');//use XPath to parse the xml result
      ANode:=XMLDoc.selectSingleNode('/Response/Status');
      if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryCode');
      if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryName');
      if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/RegionCode');
      if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/City');
      if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode');
      if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Latitude');
      if not VarIsNull(ANode) then GeoInfo.Latitude:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Longitude');
      if not VarIsNull(ANode) then GeoInfo.Longitude:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName');
      if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset');
      if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Isdst');
      if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text;
  finally
    lHTTP.Free;
    lStream.Free;
  end;
end;
