I’ve been looking for more applications for the ip geolocation. so I wrote this small tool wich show the open remote tcp connections location on a Web Map (Google Maps, Bing Maps, Yahoo Maps and OpenStreetMap).
DISCLAIMER
This application is only for educational purposes. because some maps services does not allow to display content from a desktop application.
Check the screenshots samples

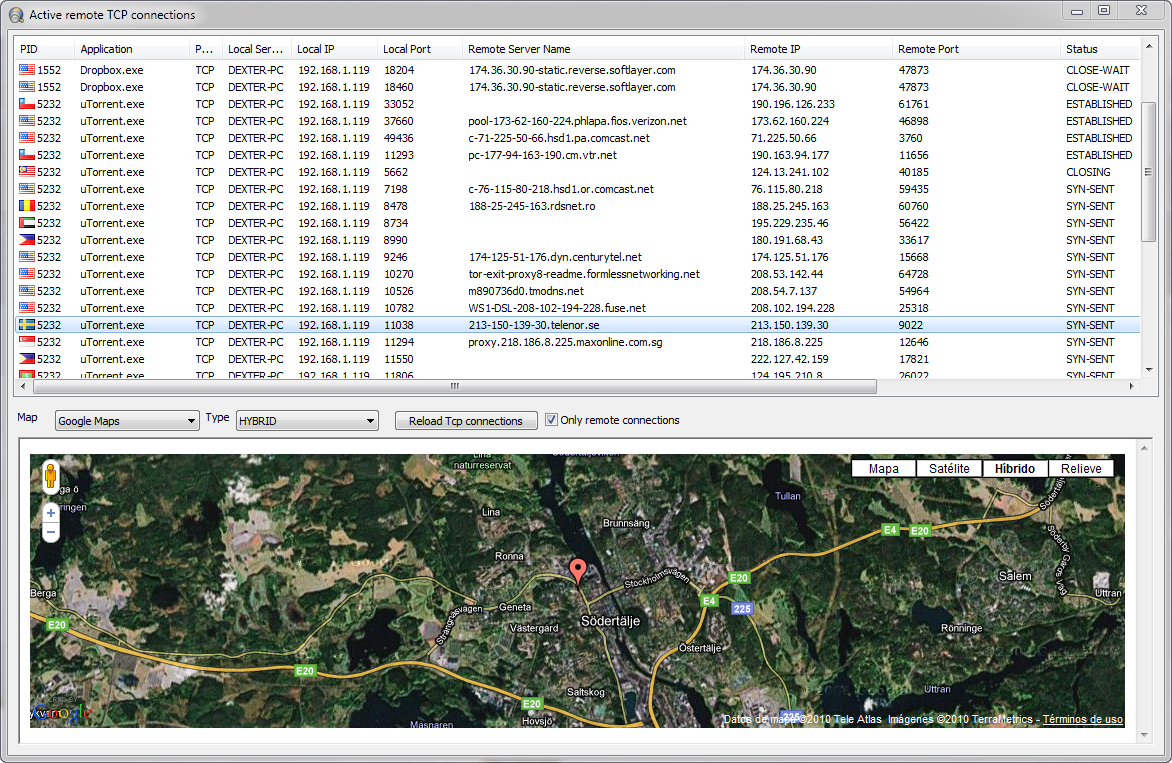

Showing the location of a ip address in Google Maps
Showing the location of a ip address in Yahoo Maps

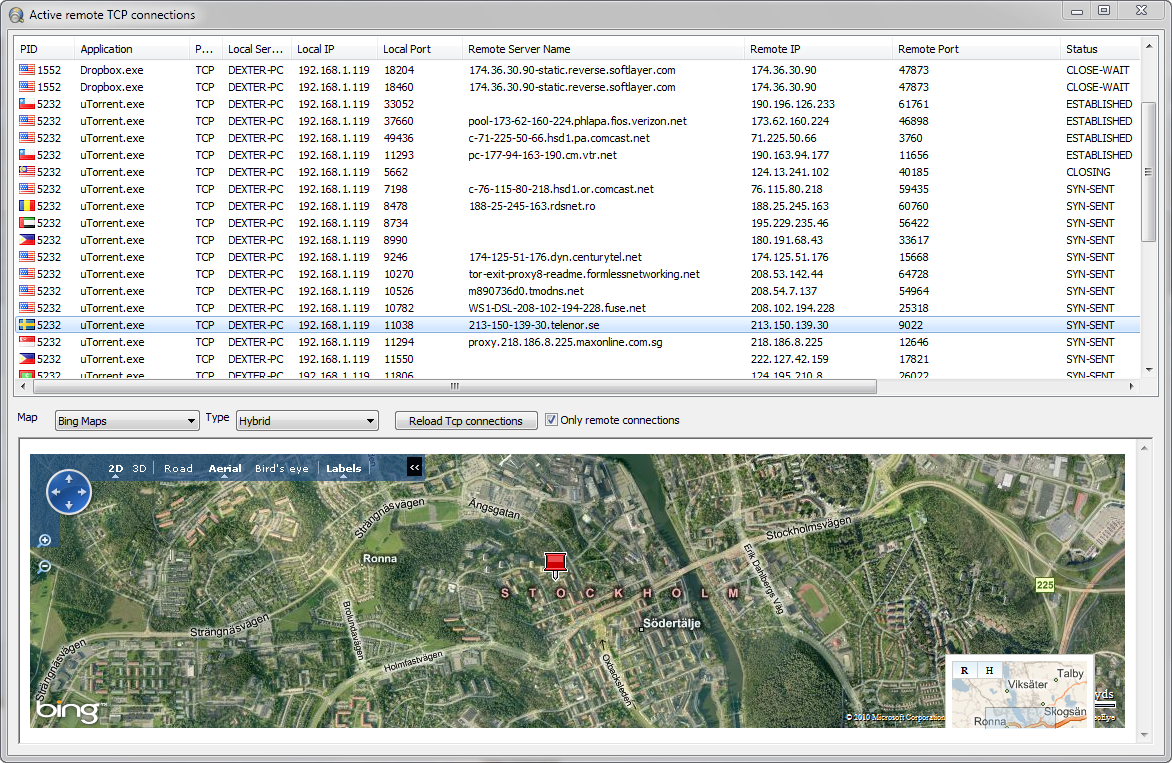

Showing the location of a ip address in Bing Maps

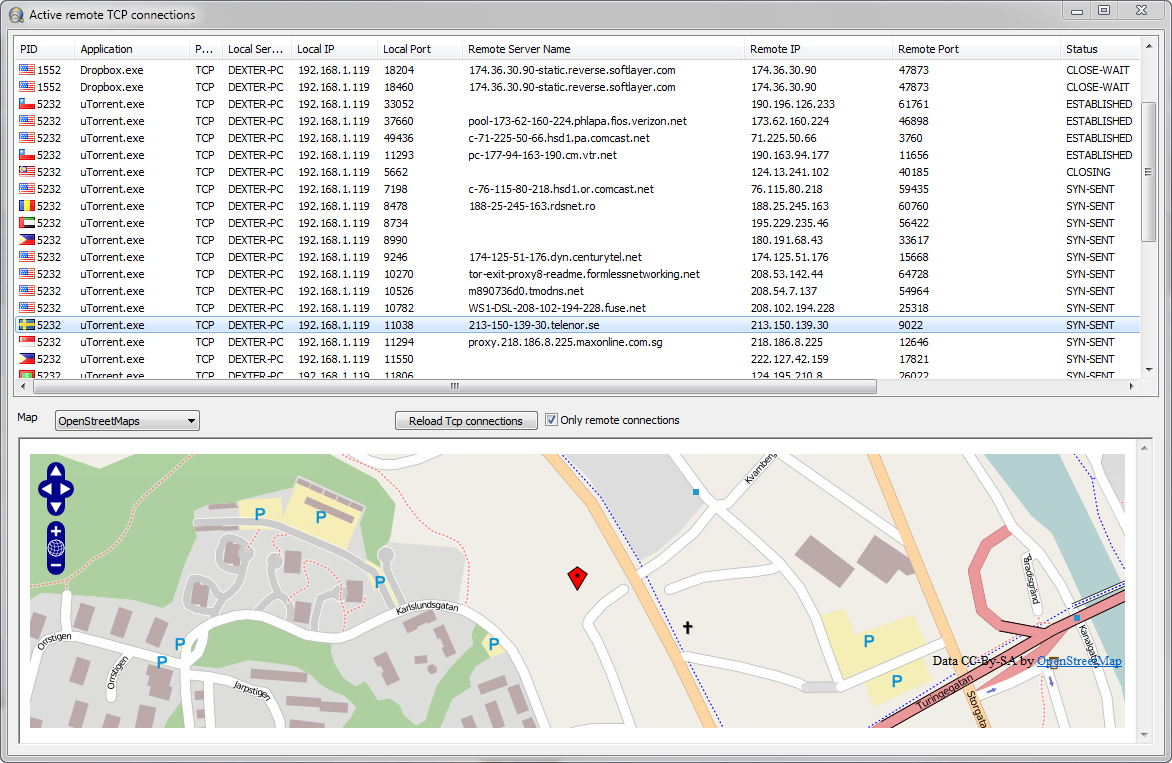

Showing the location of a ip address in OpenStreet Maps
First we need obtain the current tcp connections, to do this we can use the GetExtendedTcpTable function wich is part of the iphlpapi.dll.
the header declaration goes like this
type TCP_TABLE_CLASS = Integer; PMibTcpRowOwnerPid = ^TMibTcpRowOwnerPid; TMibTcpRowOwnerPid = packed record dwState : DWORD; dwLocalAddr : DWORD; dwLocalPort : DWORD; dwRemoteAddr: DWORD; dwRemotePort: DWORD; dwOwningPid : DWORD; end; PMIB_TCPTABLE_OWNER_PID = ^MIB_TCPTABLE_OWNER_PID; MIB_TCPTABLE_OWNER_PID = packed record dwNumEntries: DWord; table: array [0..ANY_SIZE - 1] OF TMibTcpRowOwnerPid; end; var GetExtendedTcpTable:function (pTcpTable: Pointer; dwSize: PDWORD; bOrder: BOOL; lAf: ULONG; TableClass: TCP_TABLE_CLASS; Reserved: ULONG): DWord; stdcall;
To use this function we need to determine size of the TcpTable returned, to allocate the memory. (look the first parameter is set to nil)
TableSize := 0; Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0); if Error <> ERROR_INSUFFICIENT_BUFFER then Exit;
Now in the TableSize variable we have the size of the TcpTable, so we can retrieve the tcp info passing in the first parameter the buffer to contain the data
var FExtendedTcpTable : PMIB_TCPTABLE_OWNER_PID; GetMem(FExtendedTcpTable, TableSize); GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0)
this is the full code to fill the listview with the tcp connections
procedure LoadTCPConnections; var Server : Cardinal; Error : DWORD; TableSize : DWORD; Snapshot : THandle; i : integer; ListItem : TListItem; IpAddress : in_addr; FCurrentPid : Cardinal; IsLocal : Boolean; RemoteIp : string; begin ListViewIPaddress.Items.BeginUpdate; try ListViewIPaddress.Items.Clear; FCurrentPid:=GetCurrentProcessId(); FExternalIpAddress:=GetExternalIP; TableSize := 0; Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0); //get the size of the TcpTable if Error <> ERROR_INSUFFICIENT_BUFFER then Exit; try GetMem(FExtendedTcpTable, TableSize); SnapShot := CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0); //take a Snapshot of the running process to obtain the exe name of the pid associated if GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0) = NO_ERROR then for i := 0 to FExtendedTcpTable.dwNumEntries - 1 do // for each record in the tcptable //avoid show connections of the current application and system connections (PID=0) if (FExtendedTcpTable.Table[i].dwOwningPid<>0) and (FExtendedTcpTable.Table[i].dwOwningPid<>FCurrentPid) and (FExtendedTcpTable.Table[i].dwRemoteAddr<>0) then begin IpAddress.s_addr := FExtendedTcpTable.Table[i].dwRemoteAddr; RemoteIp := string(inet_ntoa(IpAddress)); Server := FExtendedTcpTable.Table[i].dwRemoteAddr; //determine if the remote ip is local or not IsLocal := (FLocalIpAddresses.IndexOf(RemoteIp)>=0) or (Server=0) or (Server=16777343); if CheckBoxRemote.Checked and IsLocal then Continue; if FExtendedTcpTable.Table[i].dwRemoteAddr = 0 then FExtendedTcpTable.Table[i].dwRemotePort := 0; //Fill the Listview ListItem:=ListViewIPaddress.Items.Add; ListItem.ImageIndex:=-1; ListItem.Caption:=IntToStr(FExtendedTcpTable.Table[i].dwOwningPid); ListItem.SubItems.Add(GetPIDName(SnapShot,FExtendedTcpTable.Table[i].dwOwningPid)); ListItem.SubItems.Add('TCP'); ListItem.SubItems.Add(FLocalComputerName); IpAddress.s_addr := FExtendedTcpTable.Table[i].dwLocalAddr; ListItem.SubItems.Add(string(inet_ntoa(IpAddress))); //get the local ip address ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwLocalPort))); ListItem.SubItems.AddObject('',Pointer(FExtendedTcpTable.Table[i].dwRemoteAddr)); ListItem.SubItems.Add(RemoteIp); ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwRemotePort))); ListItem.SubItems.Add(MIB_TCP_STATE[FExtendedTcpTable.Table[i].dwState]); ListItem.SubItems.Add(''); ListItem.SubItems.Add(''); ListItem.SubItems.Add(''); ListItem.SubItems.Add(''); end; finally FreeMem(FExtendedTcpTable); end; finally ListViewIPaddress.Items.EndUpdate; end; //now for resolve the server location and show the flag icon we run a tthread for each row in the listview for i:= 0 to ListViewIPaddress.Items.Count-1 do begin Server:=Cardinal(ListViewIPaddress.Items.Item[i].SubItems.Objects[COLUMN_RemoteServer]); IsLocal := (FLocalIpAddresses.IndexOf(ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP])>=0) or (Server=0) or (Server=16777343); if not IsLocal then TResolveServerName.Create(Server,ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP],ImageList1,ListViewIPaddress.Items.Item[i]); end; end;
The code of the thread for resolve the ip locations and retrieve the flags images.
type TResolveGeoLocation = class(TThread) private FListItem : TListItem; FGeoInfo : TGeoInfoClass; FRemoteHostName : string; FRemoteIP : string; FServer : Cardinal; FImageList : TImageList; procedure SetData; protected procedure Execute; override; constructor Create(Server : Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem); end; constructor TResolveGeoLocation.Create(Server: Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem); begin inherited Create(False); FServer :=Server; FRemoteIP :=RemoteIP; FImageList:=ImageList; FListItem :=ListItem; FreeOnTerminate := True; end; procedure TResolveGeoLocation.Execute; begin FreeOnTerminate := True; FRemoteHostName := GetRemoteHostName(FServer); FGeoInfo:=TGeoInfoClass.Create(FRemoteIP); try Synchronize(SetData); finally FGeoInfo.Free; end; end; procedure TResolveGeoLocation.SetData; var Bitmap : TBitmap; begin FListItem.SubItems[COLUMN_RemoteServer]:=FRemoteHostName; FListItem.SubItems[COLUMN_Country] :=FGeoInfo.GeoInfo.CountryName; FListItem.SubItems[COLUMN_City] :=FGeoInfo.GeoInfo.City; FListItem.SubItems[COLUMN_Latitude] :=FGeoInfo.GeoInfo.LatitudeToString; FListItem.SubItems[COLUMN_Longitude] :=FGeoInfo.GeoInfo.LongitudeToString; if Assigned(FGeoInfo.GeoInfo.FlagImage) then begin Bitmap := TBitmap.Create; try Bitmap.Assign(FGeoInfo.GeoInfo.FlagImage); if (Bitmap.Width=FImageList.Width) and ((Bitmap.Height=FImageList.Height)) then FListItem.ImageIndex:=FImageList.Add(Bitmap,nil) else Bitmap.Width; finally Bitmap.Free; end; end; FListItem.MakeVisible(False); end;
Now the class to obtain the geolocation info and the flag of the country.
type PGeoInfo = ^TGeoInfo; TGeoInfo = record Status : string; CountryCode : string; CountryName : string; RegionCode : string; City : string; ZipPostalCode : string; Latitude : Double; Longitude : Double; TimezoneName : string; Gmtoffset : string; Isdst : string; FlagImage : TPngImage; function LatitudeToString:string; function LongitudeToString:string; end; TGeoInfoClass = class private FIpAddress : string; FGeoInfo : TGeoInfo; public property GeoInfo : TGeoInfo read FGeoInfo; constructor Create(IpAddress : string); overload; Destructor Destroy; override; end;
and the new function to retrieve the geolocation data from ipinfodb.com
procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo); var XMLDoc : OleVariant; ANode : OleVariant; FormatSettings: TFormatSettings; d : Double; Success : HResult; UrlImage : string; XmlContent : string; StreamData : TMemoryStream; begin GeoInfo.FlagImage:=nil; Success := CoInitializeEx(nil, COINIT_MULTITHREADED); try XmlContent:=WinInet_HttpGet(Format(UrlGeoLookupInfo,[IpAddress])); if XmlContent<>'' then begin XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0'); XMLDoc.async := false; XMLDoc.LoadXML(XmlContent); XMLDoc.setProperty('SelectionLanguage','XPath'); ANode:=XMLDoc.selectSingleNode('/Response/Status'); if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/CountryCode'); if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/CountryName'); if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/RegionCode'); if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/City'); if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode'); if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/Latitude'); if not VarIsNull(ANode) then begin FormatSettings.DecimalSeparator:='.'; d:=StrToFloat(ANode.Text,FormatSettings); GeoInfo.Latitude:=d; end; ANode:=XMLDoc.selectSingleNode('/Response/Longitude'); if not VarIsNull(ANode) then begin FormatSettings.DecimalSeparator:='.'; d:=StrToFloat(ANode.Text,FormatSettings); GeoInfo.Longitude:=d; end; ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName'); if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset'); if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text; ANode:=XMLDoc.selectSingleNode('/Response/Isdst'); if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text; end; finally case Success of S_OK, S_FALSE: CoUninitialize; end; end; if GeoInfo.CountryCode<>'' then //get the image begin GeoInfo.FlagImage := TPngImage.Create; StreamData := TMemoryStream.Create; try UrlImage:=Format(UrlFlags,[LowerCase(GeoInfo.CountryCode)]); WinInet_HttpGet(UrlImage,StreamData); if StreamData.Size>0 then begin StreamData.Seek(0,0); try GeoInfo.FlagImage.LoadFromStream(StreamData);//load the image in a Stream except //the image is not valid GeoInfo.FlagImage.Free; GeoInfo.FlagImage:=nil; end; end; finally StreamData.Free; end; end; end;
The part of the maps is easy, just only need load a html page in a Twebbrowser with the Latitude and longitude to show in the current selected map
procedure GetMapListItem(); var HTMLWindow2 : IHTMLWindow2; MemoryStream : TMemoryStream; Item : TListItem; Lat : AnsiString; Lng : AnsiString; Title : AnsiString; MapType : string; MapStr : AnsiString; //sorry , but the html pages contains a lot of % (porcent) chars function ReplaceTag(const PageStr,Tag,NewValue:string):AnsiString; begin Result:=AnsiString(StringReplace(PageStr,Tag,NewValue,[rfReplaceAll])); end; begin Item:=ListViewIPaddress.Selected; if not Assigned(Item) then exit; if Item.SubItems.Count<COLUMN_Latitude then Exit; if Item.SubItems[COLUMN_Latitude]='' then Exit; Lat:=AnsiString(Item.SubItems[COLUMN_Latitude]); Lng:=AnsiString(Item.SubItems[COLUMN_Longitude]); Title:=AnsiString(Format('(%s,%s) %s - %s',[Lat,Lng,Item.SubItems[COLUMN_RemoteServer],Item.SubItems[COLUMN_RemoteIP]])); MapType:=ComboBoxTypes.Text; WebBrowser1.Navigate('about:blank'); while WebBrowser1.ReadyState < READYSTATE_INTERACTIVE do Application.ProcessMessages; if Assigned(WebBrowser1.Document) then begin MemoryStream := TMemoryStream.Create; try case FCurrentMapType of Google_Maps : MapStr:=GoogleMapsPage; Yahoo_Map : MapStr:=YahooMapsPage; Bing_Map : MapStr:=BingsMapsPage; Open_Streetmap : MapStr:=OpenStreetMapsPage; end; MapStr:=ReplaceTag(MapStr,'[Lat]',Lat); MapStr:=ReplaceTag(MapStr,'[Lng]',Lng); MapStr:=ReplaceTag(MapStr,'[Title]',Title); MapStr:=ReplaceTag(MapStr,'[Type]',MapType); MemoryStream.WriteBuffer(Pointer(MapStr)^, Length(MapStr)); MemoryStream.Seek(0, soFromBeginning); (WebBrowser1.Document as IPersistStreamInit).Load(TStreamAdapter.Create(MemoryStream)); finally MemoryStream.Free; end; HTMLWindow2 := (WebBrowser1.Document as IHTMLDocument2).parentWindow; end; end;
and finally the html code embedded in a delphi const string for each map type
const GoogleMapsPage: AnsiString = '<html> '+ '<head> '+ '<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+ '<script type="text/javascript" src="http://maps.google.com/maps/api/js?sensor=true"></script> '+ '<script type="text/javascript"> '+ ' var map;'+ ' function initialize() { '+ ' geocoder = new google.maps.Geocoder();'+ ' var latlng = new google.maps.LatLng([Lat],[Lng]); '+ ' var myOptions = { '+ ' zoom: 12, '+ ' center: latlng, '+ ' mapTypeId: google.maps.MapTypeId.[Type] '+ ' }; '+ ' map = new google.maps.Map(document.getElementById("map_canvas"), myOptions); '+ ' var marker = new google.maps.Marker({'+ ' position: latlng, '+ ' title: "[Title]", '+ ' map: map '+ ' });'+ ' } '+ ''+'</script> '+ '</head> '+ '<body onload="initialize()"> '+ ' <div id="map_canvas" style="width:100%; height:100%"></div> '+ '</body>'+ '</html>'; YahooMapsPage: AnsiString = '<html> '+ '<head> '+ '<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+ '<script type="text/javascript" src="http://api.maps.yahoo.com/ajaxymap?v=3.8&appid=08gJIU7V34H9WlTSGrIyEIb73GLT5TpAaF2HzOSJIuTO2AVn6qzftRPDQtcQyynObIG8"></script> '+ '<script type="text/javascript"> '+ ' function initialize() '+ '{'+ ' var map = new YMap ( document.getElementById ( "map_canvas" ) );'+ ' map.addTypeControl();'+ ' map.addZoomLong(); '+ ' map.addPanControl();'+ ' map.setMapType ( YAHOO_MAP_[Type] );'+ ' var geopoint = new YGeoPoint ( [Lat] , [Lng] ); '+ ' map.drawZoomAndCenter ( geopoint , 5 );'+ ' var newMarker= new YMarker(geopoint); '+ ' var markerMarkup = "[Title]";'+ ' newMarker.openSmartWindow(markerMarkup);'+ ' map.addOverlay(newMarker);'+ '}'+ ''+'</script> '+ '</head> '+ '<body onload="initialize()"> '+ ' <div id="map_canvas" style="width:100%; height:100%"></div> '+ '</body>'+ '</html>'; BingsMapsPage: AnsiString = '<html> '+ '<head> '+ '<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+ '<script type="text/javascript" src="http://dev.virtualearth.net/mapcontrol/mapcontrol.ashx?v=6.2"></script> '+ '<script type="text/javascript"> '+ 'var map = null; '+ ' function initialize() '+ '{'+ ' map = new VEMap("map_canvas"); '+ ' map.LoadMap(new VELatLong([Lat],[Lng]), 10 ,"h" ,false);'+ ' map.SetMapStyle(VEMapStyle.[Type]);'+ ' map.ShowMiniMap((document.getElementById("map_canvas").offsetWidth - 180), 200, VEMiniMapSize.Small);'+ ' map.SetZoomLevel (12);'+ ' shape = new VEShape(VEShapeType.Pushpin, map.GetCenter()); '+ ' shape.SetTitle("[Title]");'+ ' map.AddShape ( shape );'+ '}'+ ''+'</script> '+ '</head> '+ '<body onload="initialize()"> '+ ' <div id="map_canvas" style="width:100%; height:100%"></div> '+ '</body>'+ '</html>'; OpenStreetMapsPage: AnsiString = '<html> '+ '<head> '+ '<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+ '<script src="http://www.openlayers.org/api/OpenLayers.js"></script> '+ '<script type="text/javascript"> '+ ' function initialize() '+ '{'+ ' map = new OpenLayers.Map("map_canvas");'+ ' map.addLayer(new OpenLayers.Layer.OSM()); '+ ' var lonLat = new OpenLayers.LonLat( [Lng] , [Lat] ) '+ ' .transform( '+ ' new OpenLayers.Projection("EPSG:4326"), '+ ' map.getProjectionObject() '+ ' ); '+ ' var zoom=16; '+ ' var markers = new OpenLayers.Layer.Markers( "Markers" ); '+ ' map.addLayer(markers); '+ ' markers.addMarker(new OpenLayers.Marker(lonLat)); '+ ' map.setCenter (lonLat, zoom); '+ '}'+ ''+'</script> '+ '</head> '+ '<body onload="initialize()"> '+ ' <div id="map_canvas" style="width:100%; height:100%"></div> '+ '</body>'+ '</html>';
