Building a traceroute application with IP geolocation using Delphi

7 Comments

Using the free service of ip geolocation provided by http://ipinfodb.com/ , you can do very cool things.

See this sample wich intregrates a trace route and the ip geolocation, to obtain the location of every server included in the trace of an ip address.

First we define the stucture to contain the geolocation data

type
 TGeoInfo   = record
  Status        : string;
  CountryCode   : string;
  CountryName   : string;
  RegionCode    : string;
  City          : string;
  ZipPostalCode : string;
  Latitude      : double;
  Longitude     : double;
  TimezoneName  : string;
  Gmtoffset     : string;
  Isdst         : string;
  function LatitudeToString:string;
  function LongitudeToString:string;
 end;

function TGeoInfo.LatitudeToString: string; //this helper function retrieve the latitute as a string, forcing the decimal separator to a dot
var
  FormatSettings: TFormatSettings;
begin
  FormatSettings.DecimalSeparator:='.';
  result:=FloatToStr(Latitude,FormatSettings);
end;

function TGeoInfo.LongitudeToString: string;//this helper function retrieve the longitude as a string, forcing the decimal separator to a dot
var
  FormatSettings: TFormatSettings;
begin
  FormatSettings.DecimalSeparator:='.';
  result:=FloatToStr(Longitude,FormatSettings);
end;

Now the function to retrieve the geolocation, the url was updated to use the new api published the 2010-11-15.

const
//the key used in this link if only for demo purposes, create your own free key registering in http://ipinfodb.com/
 UrlGeoLookupInfo  ='http://api.ipinfodb.com/v2/ip_query.php?key=a069ef201ef4c1b61231b3bdaeb797b5488ef879effb23d269bda3a572dc704c&ip=%s&timezone=true';

procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo);
var
  lHTTP         : TIdHTTP;
  lStream       : TStringStream;
  XMLDoc        : OleVariant;
  ANode         : OleVariant;
  FormatSettings: TFormatSettings;
  d             : Double;
  Success       : HResult;
begin
  lHTTP   := TIdHTTP.Create(nil);
  lStream := TStringStream.Create('');
  Success := CoInitializeEx(nil, COINIT_MULTITHREADED);//necesary to support MULTITHREAD
  try
      lHTTP.Get(Format(UrlGeoLookupInfo,[IpAddress]), lStream);
      lStream.Seek(0,soFromBeginning);
      XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0');
      XMLDoc.async := false;
      XMLDoc.LoadXML(lStream.ReadString(lStream.Size));
      XMLDoc.setProperty('SelectionLanguage','XPath');
      ANode:=XMLDoc.selectSingleNode('/Response/Status');
      if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryCode');
      if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/CountryName');
      if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/RegionCode');
      if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/City');
      if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode');
      if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text;

      ANode:=XMLDoc.selectSingleNode('/Response/Latitude');
      if not VarIsNull(ANode) then
      begin
        FormatSettings.DecimalSeparator:='.';
        d:=StrToFloat(ANode.Text,FormatSettings);
        GeoInfo.Latitude:=d;
      end;

      ANode:=XMLDoc.selectSingleNode('/Response/Longitude');
      if not VarIsNull(ANode) then
      begin
        FormatSettings.DecimalSeparator:='.';
        d:=StrToFloat(ANode.Text,FormatSettings);
        GeoInfo.Longitude:=d;
      end;

      ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName');
      if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset');
      if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text;
      ANode:=XMLDoc.selectSingleNode('/Response/Isdst');
      if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text;
  finally
    lHTTP.Free;
    lStream.Free;
    case Success of
      S_OK, S_FALSE: CoUninitialize;
    end;
  end;
end;

Now using the IcmpCreateFile,IcmpCloseHandle and IcmpSendEcho functions we can write a trace route function.

function IcmpCreateFile: THandle; stdcall; external 'ICMP.DLL' name 'IcmpCreateFile';
function IcmpCloseHandle(IcmpHandle: THandle): BOOL; stdcall;  external 'ICMP.DLL' name 'IcmpCloseHandle';
function IcmpSendEcho(IcmpHandle : THandle; DestinationAddress: Longint;  RequestData: Pointer; RequestSize: Word; RequestOptions: PIP_option_information; ReplyBuffer: Pointer; ReplySize, Timeout: DWORD): DWORD; stdcall;  external 'ICMP.DLL' name 'IcmpSendEcho';

Check the definition of the TGeoTraceThread TThread

  ProcTraceCallBack    = procedure(const ServerName,ServerIp:string) of object;
  ProcTraceLogCallBack = procedure(const Msg:string) of object;
  TGeoTraceThread = class(TThread)
  private
    DestAddr            : in_addr;
    TraceHandle         : THandle;
    FDestAddress        : string;
    FLogString          : string;
    FIcmpTimeOut        : Word;
    FMaxHops            : Word;
    FResolveHostName    : boolean;
    FServerCallBack     : string;
    FServerIpCallBack   : string;
    FCallBack           : ProcTraceCallBack;
    FLogCallBack        : ProcTraceLogCallBack;
    FIncludeGeoInfo     : boolean;
    FGeoInfo            : TGeoInfo;
    function  Trace(const Ttl: Byte): Longint;
    procedure Log;
    procedure IntCallBack;
  public
    procedure Execute; override;
    property  MaxHops : Word read FMaxHops write FMaxHops default 30;
    property  DestAddress : string read FDestAddress write FDestAddress;
    property  IcmpTimeOut : Word read FIcmpTimeOut write FIcmpTimeOut default 5000;
    property  ResolveHostName : boolean read FResolveHostName write FResolveHostName default True;
    property  IncludeGeoInfo : boolean read FIncludeGeoInfo write FIncludeGeoInfo default True;
    property  CallBack : ProcTraceCallBack read FCallBack write FCallBack;
    property  MsgCallBack : ProcTraceLogCallBack read FLogCallBack write FLogCallBack;
  end;

and now the implementation of the TGeoTraceThread TThread, the code was commented to explain the logic of the trace route.

procedure TGeoTraceThread.Execute;
const
  MaxPings = 3;
var
  HostName   : String;
  HostReply  : Boolean;
  HostIP     : LongInt;
  HostEnt    : PHostEnt;
  WSAData    : TWSAData;
  WsaErr     : DWORD;
  OldTick    : DWORD;
  PingTime   : DWORD;
  TraceResp  : Longint;
  Index      : Word;
  FCurrentTTL: Word;
  sValue     : string;
  FGeoInfoStr: string;
  IpAddress  : in_addr;
begin

  WsaErr := WSAStartup($101, WSAData);
  if WsaErr <> 0 then
  begin
    FLogString := SysErrorMessage(WSAGetLastError);
    if Assigned(FLogCallBack)then Synchronize(Log);
    Exit;
  end;

  try
    HostEnt := gethostbyname(PAnsiChar(AnsiString(FDestAddress))); //get the host to trace
    if not Assigned(HostEnt) then
    begin
      FLogString := SysErrorMessage(WSAGetLastError);
      if Assigned(FLogCallBack) then Synchronize(Log);
      Exit;
    end;

    DestAddr     := PInAddr(in_addr(HostEnt.h_addr_list^))^; //get the address of the host to trace
    TraceHandle := IcmpCreateFile;

    if TraceHandle = INVALID_HANDLE_VALUE then
    begin
      FLogString := SysErrorMessage(GetLastError);
      if Assigned(FLogCallBack) then Synchronize(Log);
      Exit;
    end;

    try

      if Assigned(FLogCallBack)then //check if the callback function to log the data is assigned
      begin
        FLogString := Format('Tracing route to %s [%s]',[FDestAddress,string(inet_ntoa(DestAddr))]);
        Synchronize(Log); //Log the data
        FLogString := Format('over a maximum of %d hops ',[FMaxHops]);
        Synchronize(Log);//log the data
      end;

      TraceResp    := 0;
      FCurrentTTL  := 0;

      while (TraceResp <> DestAddr.S_addr) and (FCurrentTTL < FMaxHops) do //begin the trace
      begin
        Inc(FCurrentTTL);
        HostReply := False;
        sValue:='';
        for Index := 0 to MaxPings-1 do // make 3 pings to the current host
        begin
          OldTick   := GetTickCount; //save the current time
          TraceResp := Trace(FCurrentTTL); //do the trace

          if TraceResp = -1 then //check for the response of the trace, -1 indicate a request time-out
            FLogString := '    *    '
          else
          begin
            PingTime   :=GetTickCount - OldTick; //calculate the elapsed time in ms

            if PingTime>0 then
             FLogString := Format('%6d ms', [PingTime])
            else
             FLogString := Format('    <%d ms', [1]);

            HostReply := True;
            HostIP    := TraceResp;
          end;

          if Index = 0 then
            FLogString := Format('%3d %s', [FCurrentTTL, FLogString]);

          sValue:=sValue+FLogString;
        end;

        FLogString:=sValue+' ';

        if HostReply then
        begin
          IpAddress.s_addr :=HostIP;
          sValue :=string(inet_ntoa(IpAddress)); //get the ip address (x.x.x.x) of the current host

          FGeoInfoStr:='';
          if FIncludeGeoInfo then //makes the magic now
          begin
            GetGeoInfo(sValue,FGeoInfo); //get the geolocation info about the current host
            FGeoInfoStr:=Format('(%s,%s) %s-%s TimeZone %s',[FGeoInfo.LongitudeToString,FGeoInfo.LatitudeToString,FGeoInfo.CountryName,FGeoInfo.City,FGeoInfo.TimezoneName]); //construct the string to log the data
          end;

          FServerCallBack  :='';
          FServerIpCallBack:=sValue;
          if FResolveHostName then //only if the property ResolveHostName is Tru try to resolve the current host name
          begin
            HostName         := GetRemoteHostName(HostIP);
            FServerCallBack  := HostName;
            if HostName <> '' then
              FLogString := FLogString + HostName + ' [' + sValue + '] '+FGeoInfoStr
            else
              FLogString := FLogString + sValue +' '+ FGeoInfoStr;
          end
          else
          FLogString := FLogString + sValue+' '+ FGeoInfoStr;

          if Assigned(FCallBack) then Synchronize(IntCallBack);
        end
        else
          FLogString := FLogString+' Request timed out.';

        FLogString := '  ' + FLogString;
        if Assigned(FLogCallBack) then Synchronize(Log);
      end;

    finally
      IcmpCloseHandle(TraceHandle);
    end;

    if Assigned(FLogCallBack) then
    begin
      FLogString := 'Trace complete'; //we are done
      Synchronize(Log);
    end;

  finally
    WSACleanup;
  end;
end;

function TGeoTraceThread.Trace(const Ttl: Byte): Longint;
var
  IPOptionInfo: TIPOptionInformation;
  IcmpEcho    : PIcmpEchoReply;
  IcpmErr     : Integer;
begin
  GetMem(IcmpEcho, SizeOf(TIcmpEchoReply));
  try
    IPOptionInfo.Ttl         := Ttl;
    IPOptionInfo.Tos         := 0;
    IPOptionInfo.Flags       := 0;
    IPOptionInfo.OptionsSize := 0;
    IPOptionInfo.OptionsData := nil;

    IcpmErr := IcmpSendEcho(TraceHandle,DestAddr.S_addr,nil,0,@IPOptionInfo,IcmpEcho,SizeOf(TIcmpEchoReply),FIcmpTimeOut); //send the echo request and wait for any echo response replies
    if IcpmErr = 0 then //check for the reply
    begin
      Result := -1;
      Exit;
    end;
    Result := IcmpEcho.Address;
  finally
    FreeMem(IcmpEcho); //dispose the memory allocated
  end;
end;

procedure TGeoTraceThread.IntCallBack; //this callback function report the current server name and ip address
begin
  FCallBack(FServerCallBack,FServerIpCallBack);
end;

procedure TGeoTraceThread.Log; //this callback log the data
begin
  FLogCallBack(FLogString);
end;

finally you can call the the TGeoTraceThread class in this way

procedure TFrmMainTrace.TraceAddress;
var
  Trace : TGeoTraceThread;
begin
    if Trim(EditAddress.Text)='' then  Exit;
    Trace:=TGeoTraceThread.Create(True);
    Trace.FreeOnTerminate    :=True;
    Trace.DestAddress        :=EditAddress.Text;
    Trace.MaxHops            :=30; //hops
    Trace.ResolveHostName    :=True;
    Trace.IcmpTimeOut        :=5000; //timeout in ms
    Trace.MsgCallBack        :=TraceLogCallBack; //assign the callback
    Trace.IncludeGeoInfo     :=True; //set this property true option to display the geoloccation info result in the trace
    Trace.Start;
end;

procedure TFrmMainTrace.TraceLogCallBack(const Msg: string);
begin
  MemoTrace.Lines.Add(Msg);
  MemoTrace.Perform(WM_VSCROLL, SB_BOTTOM, 0);
end;

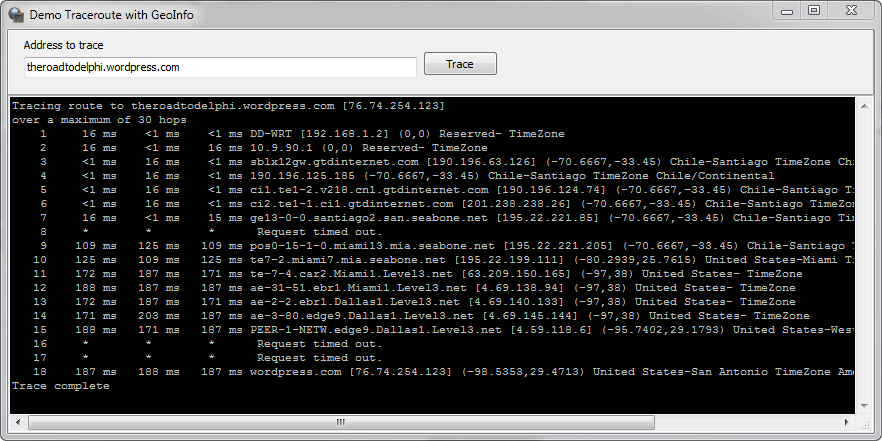

and the output look like this, check which the trace includes the latitude, longitude, timezone, country and city for each host included in the trace.

Tracing route to theroadtodelphi.wordpress.com [76.74.254.123]
over a maximum of 30 hops
    1     16 ms    <1 ms    <1 ms DD-WRT [192.168.1.2] (0,0) Reserved- TimeZone
    2     16 ms    <1 ms    16 ms 10.9.90.1 (0,0) Reserved- TimeZone
    3     <1 ms    16 ms    <1 ms sblx12gw.gtdinternet.com [190.196.63.126] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    4     <1 ms    16 ms    <1 ms 190.196.125.185 (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    5     <1 ms    16 ms    <1 ms ci1.te1-2.v218.cn1.gtdinternet.com [190.196.124.74] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    6     <1 ms    16 ms    <1 ms ci2.te1-1.ci1.gtdinternet.com [201.238.238.26] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    7     16 ms    <1 ms    15 ms ge13-0-0.santiago2.san.seabone.net [195.22.221.85] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
    8     *        *        *      Request timed out.
    9    109 ms   125 ms   109 ms pos0-15-1-0.miami13.mia.seabone.net [195.22.221.205] (-70.6667,-33.45) Chile-Santiago TimeZone Chile/Continental
   10    125 ms   109 ms   125 ms te7-2.miami7.mia.seabone.net [195.22.199.111] (-80.2939,25.7615) United States-Miami TimeZone America/New_York
   11    172 ms   187 ms   171 ms te-7-4.car2.Miami1.Level3.net [63.209.150.165] (-97,38) United States- TimeZone
   12    188 ms   187 ms   187 ms ae-31-51.ebr1.Miami1.Level3.net [4.69.138.94] (-97,38) United States- TimeZone
   13    172 ms   187 ms   171 ms ae-2-2.ebr1.Dallas1.Level3.net [4.69.140.133] (-97,38) United States- TimeZone
   14    171 ms   203 ms   187 ms ae-3-80.edge9.Dallas1.Level3.net [4.69.145.144] (-97,38) United States- TimeZone
   15    188 ms   171 ms   187 ms PEER-1-NETW.edge9.Dallas1.Level3.net [4.59.118.6] (-95.7402,29.1793) United States-West Columbia TimeZone America/Chicago
   16     *        *        *      Request timed out.
   17     *        *        *      Request timed out.
   18    187 ms   188 ms   187 ms wordpress.com [76.74.254.123] (-98.5353,29.4713) United States-San Antonio TimeZone America/Chicago
Trace complete

Check the source code on Github

(The demo project was compiled under Delphi XE, but the TGeoTraceThread class can be used with older versions of Delphi)

Author: Rodrigo

Just another Delphi guy.

7 thoughts on “Building a traceroute application with IP geolocation using Delphi

  1. Very good, thank you for sharing!!

  2. Did you accidentally publish your API key? ;-)

  3. Good to know. :-)
    Nice example, thank you!

  4. Exactly what I was looking for! Just need some improvements that I have no time for. Some things like implementing tracert’s command line switches, break/stop button and so on … anyhow thank you for sharing …

  5. This is fantastic! I tweaked the message callback and pass the ThreadID of the thread so that you can run a few traces in parallel.

  6. Pingback: VolvoxSoft — Service de localisation IP

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out / Change )

Twitter picture

You are commenting using your Twitter account. Log Out / Change )

Facebook photo

You are commenting using your Facebook account. Log Out / Change )

Google+ photo

You are commenting using your Google+ account. Log Out / Change )

Connecting to %s
