I’ve been looking for more applications for the ip geolocation. so I wrote this small tool wich show the open remote tcp connections location on a Web Map (Google Maps, Bing Maps, Yahoo Maps and OpenStreetMap).

DISCLAIMER
This application is only for educational purposes. because some maps services does not allow to display content from a desktop application.

Check the screenshots samples

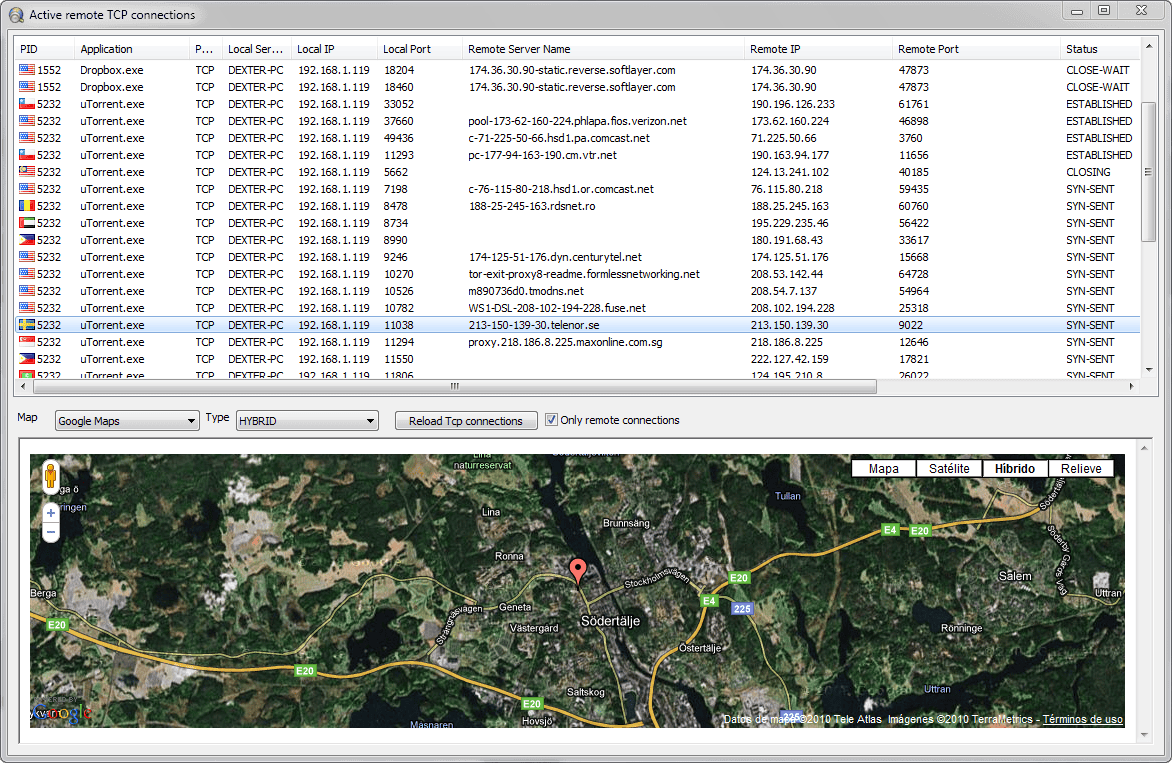

Showing the location of a ip address in Google Maps

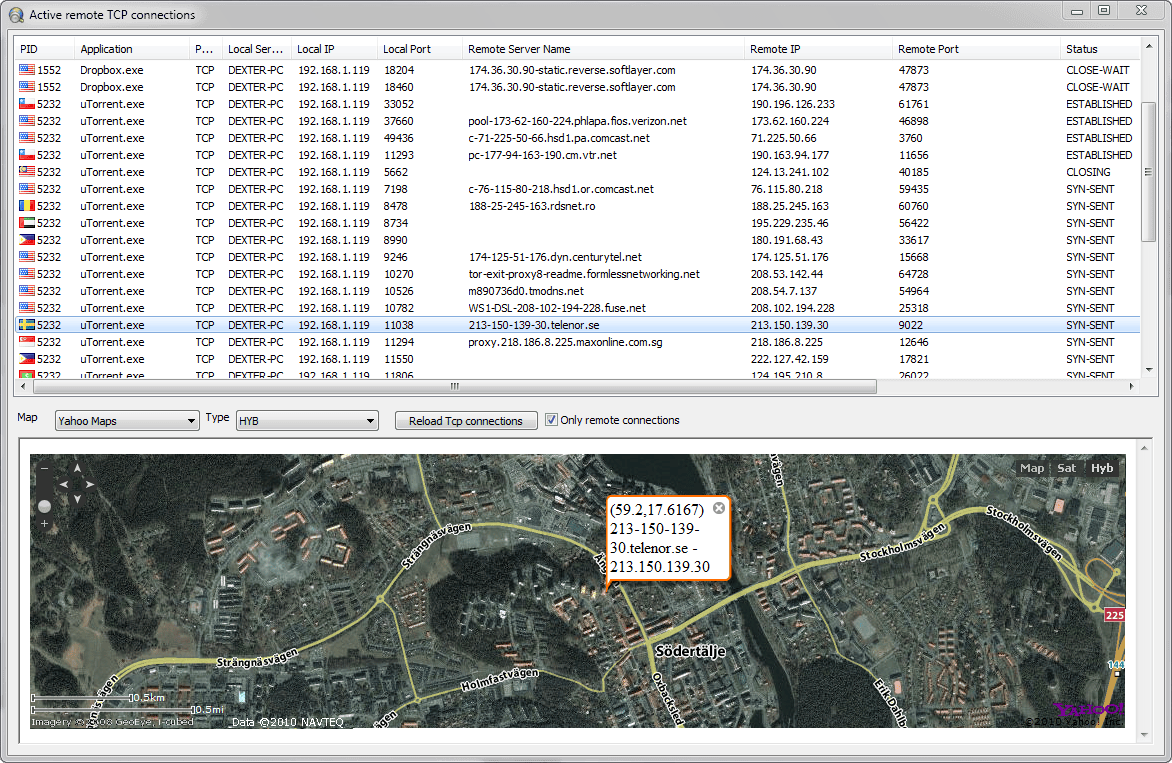

Showing the location of a ip address in Yahoo Maps

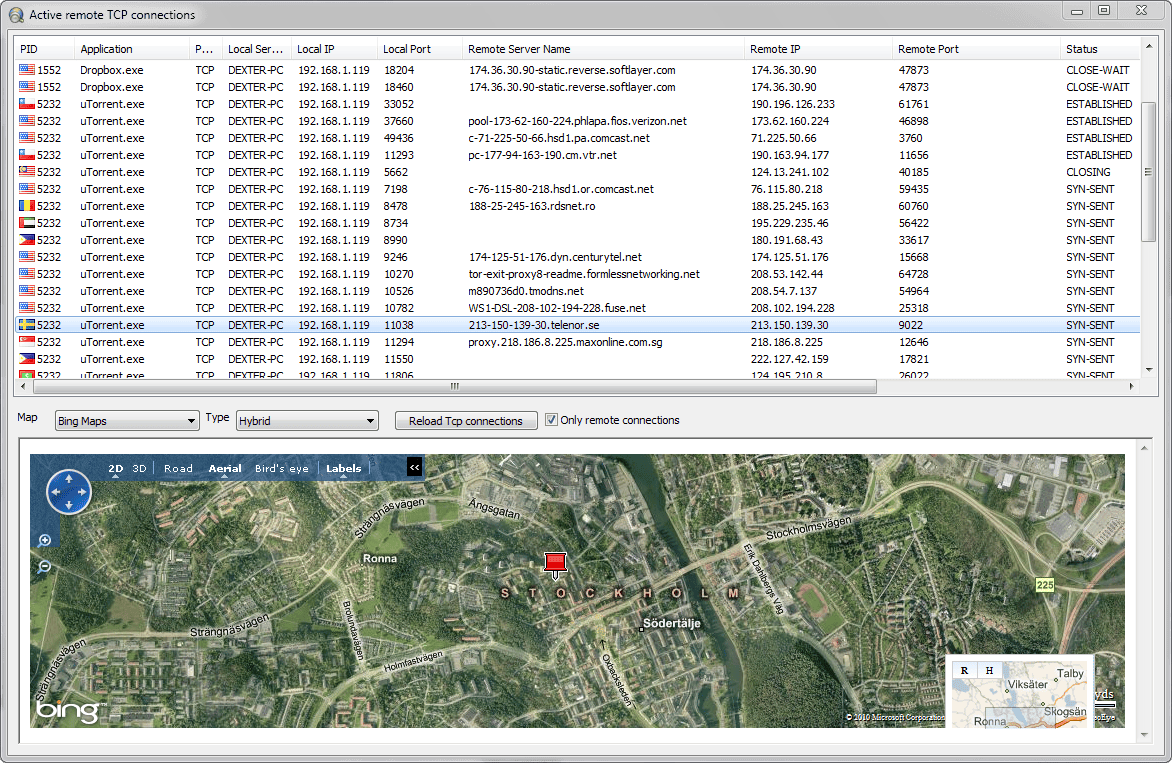

Showing the location of a ip address in Bing Maps

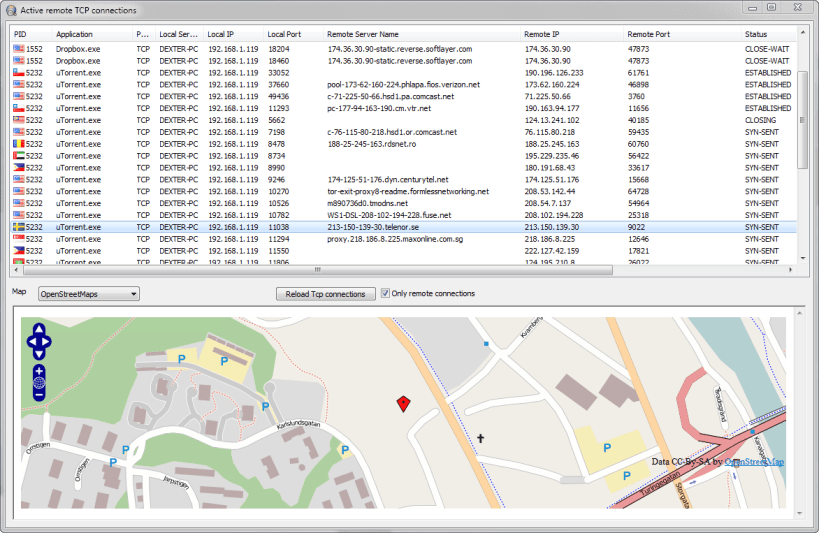

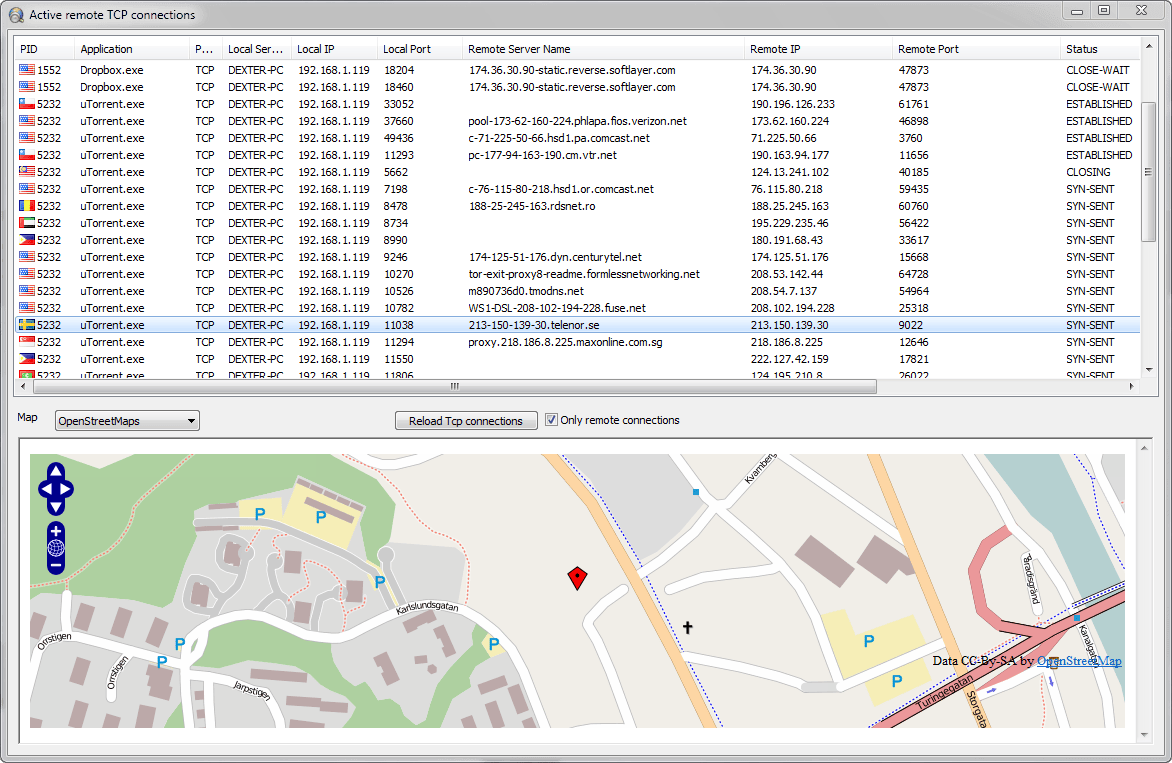

Showing the location of a ip address in OpenStreet Maps

First we need obtain the current tcp connections, to do this we can use the GetExtendedTcpTable function wich is part of the iphlpapi.dll.

the header declaration goes like this

type
   TCP_TABLE_CLASS = Integer;

  PMibTcpRowOwnerPid = ^TMibTcpRowOwnerPid;
  TMibTcpRowOwnerPid  = packed record
    dwState     : DWORD;
    dwLocalAddr : DWORD;
    dwLocalPort : DWORD;
    dwRemoteAddr: DWORD;
    dwRemotePort: DWORD;
    dwOwningPid : DWORD;
    end;

  PMIB_TCPTABLE_OWNER_PID  = ^MIB_TCPTABLE_OWNER_PID;
  MIB_TCPTABLE_OWNER_PID = packed record
   dwNumEntries: DWord;
   table: array [0..ANY_SIZE - 1] OF TMibTcpRowOwnerPid;
  end;

var
   GetExtendedTcpTable:function  (pTcpTable: Pointer; dwSize: PDWORD; bOrder: BOOL; lAf: ULONG; TableClass: TCP_TABLE_CLASS; Reserved: ULONG): DWord; stdcall;

To use this function we need to determine size of the TcpTable returned, to allocate the memory. (look the first parameter is set to nil)

      TableSize := 0;
      Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0);
      if Error <> ERROR_INSUFFICIENT_BUFFER then
         Exit;

Now in the TableSize variable we have the size of the TcpTable, so we can retrieve the tcp info passing in the first parameter the buffer to contain the data

var
FExtendedTcpTable : PMIB_TCPTABLE_OWNER_PID;

 GetMem(FExtendedTcpTable, TableSize);
 GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0)

this is the full code to fill the listview with the tcp connections

procedure LoadTCPConnections;
var
   Server       : Cardinal;
   Error        : DWORD;
   TableSize    : DWORD;
   Snapshot     : THandle;
   i            : integer;
   ListItem     : TListItem;
   IpAddress    : in_addr;
   FCurrentPid  : Cardinal;
   IsLocal      : Boolean;
   RemoteIp     : string;
begin
   ListViewIPaddress.Items.BeginUpdate;
   try
     ListViewIPaddress.Items.Clear;
     FCurrentPid:=GetCurrentProcessId();
     FExternalIpAddress:=GetExternalIP;
      TableSize := 0;
      Error := GetExtendedTcpTable(nil, @TableSize, False, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0);  //get the size of the TcpTable
      if Error <> ERROR_INSUFFICIENT_BUFFER then
         Exit;
      try
         GetMem(FExtendedTcpTable, TableSize);
         SnapShot := CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0); //take a Snapshot of the running process to obtain the exe name of the pid associated
         if GetExtendedTcpTable(FExtendedTcpTable, @TableSize, TRUE, AF_INET, TCP_TABLE_OWNER_PID_ALL, 0) = NO_ERROR then
            for i := 0 to FExtendedTcpTable.dwNumEntries - 1 do // for each record in the tcptable

            //avoid show connections of the current application and system connections (PID=0)
            if (FExtendedTcpTable.Table[i].dwOwningPid<>0) and (FExtendedTcpTable.Table[i].dwOwningPid<>FCurrentPid) and (FExtendedTcpTable.Table[i].dwRemoteAddr<>0) then
            begin
               IpAddress.s_addr := FExtendedTcpTable.Table[i].dwRemoteAddr;
               RemoteIp  := string(inet_ntoa(IpAddress));
               Server     :=  FExtendedTcpTable.Table[i].dwRemoteAddr;
               //determine if the remote ip is local or not
               IsLocal    := (FLocalIpAddresses.IndexOf(RemoteIp)>=0) or (Server=0) or (Server=16777343);

               if CheckBoxRemote.Checked and IsLocal then Continue;
               if FExtendedTcpTable.Table[i].dwRemoteAddr = 0 then
               FExtendedTcpTable.Table[i].dwRemotePort := 0;
               //Fill the Listview
               ListItem:=ListViewIPaddress.Items.Add;

               ListItem.ImageIndex:=-1;
               ListItem.Caption:=IntToStr(FExtendedTcpTable.Table[i].dwOwningPid);
               ListItem.SubItems.Add(GetPIDName(SnapShot,FExtendedTcpTable.Table[i].dwOwningPid));
               ListItem.SubItems.Add('TCP');
               ListItem.SubItems.Add(FLocalComputerName);

               IpAddress.s_addr := FExtendedTcpTable.Table[i].dwLocalAddr;
               ListItem.SubItems.Add(string(inet_ntoa(IpAddress))); //get the local ip address
               ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwLocalPort)));

               ListItem.SubItems.AddObject('',Pointer(FExtendedTcpTable.Table[i].dwRemoteAddr));

               ListItem.SubItems.Add(RemoteIp);
               ListItem.SubItems.Add(IntToStr(ntohs(FExtendedTcpTable.Table[i].dwRemotePort)));
               ListItem.SubItems.Add(MIB_TCP_STATE[FExtendedTcpTable.Table[i].dwState]);

               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
               ListItem.SubItems.Add('');
            end;

      finally
         FreeMem(FExtendedTcpTable);
      end;

   finally
    ListViewIPaddress.Items.EndUpdate;
   end;
    //now for resolve the server location and show the flag icon we run a tthread for each row in the listview
    for i:= 0 to ListViewIPaddress.Items.Count-1 do
    begin
      Server:=Cardinal(ListViewIPaddress.Items.Item[i].SubItems.Objects[COLUMN_RemoteServer]);
      IsLocal    := (FLocalIpAddresses.IndexOf(ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP])>=0) or (Server=0) or (Server=16777343);
      if not IsLocal then
        TResolveServerName.Create(Server,ListViewIPaddress.Items.Item[i].SubItems[COLUMN_RemoteIP],ImageList1,ListViewIPaddress.Items.Item[i]);
    end;
end;

The code of the thread for resolve the ip locations and retrieve the flags images.

type
   TResolveGeoLocation = class(TThread)
   private
     FListItem         : TListItem;
     FGeoInfo          : TGeoInfoClass;
     FRemoteHostName   : string;
     FRemoteIP         : string;
     FServer           : Cardinal;
     FImageList        : TImageList;
     procedure SetData;
   protected
     procedure Execute; override;
     constructor Create(Server : Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem);
   end;

constructor TResolveGeoLocation.Create(Server: Cardinal;const RemoteIP:string;ImageList:TImageList;ListItem:TListItem);
begin
   inherited Create(False);
   FServer   :=Server;
   FRemoteIP :=RemoteIP;
   FImageList:=ImageList;
   FListItem :=ListItem;
   FreeOnTerminate := True;
end;

procedure TResolveGeoLocation.Execute;
begin
  FreeOnTerminate := True;
  FRemoteHostName := GetRemoteHostName(FServer);
  FGeoInfo:=TGeoInfoClass.Create(FRemoteIP);
  try
   Synchronize(SetData);
  finally
   FGeoInfo.Free;
  end;
end;

procedure TResolveGeoLocation.SetData;
var
   Bitmap  : TBitmap;
begin
    FListItem.SubItems[COLUMN_RemoteServer]:=FRemoteHostName;
    FListItem.SubItems[COLUMN_Country]     :=FGeoInfo.GeoInfo.CountryName;
    FListItem.SubItems[COLUMN_City]        :=FGeoInfo.GeoInfo.City;
    FListItem.SubItems[COLUMN_Latitude]    :=FGeoInfo.GeoInfo.LatitudeToString;
    FListItem.SubItems[COLUMN_Longitude]   :=FGeoInfo.GeoInfo.LongitudeToString;

    if Assigned(FGeoInfo.GeoInfo.FlagImage) then
    begin
       Bitmap := TBitmap.Create;
      try
        Bitmap.Assign(FGeoInfo.GeoInfo.FlagImage);
        if (Bitmap.Width=FImageList.Width) and ((Bitmap.Height=FImageList.Height)) then
         FListItem.ImageIndex:=FImageList.Add(Bitmap,nil)
        else
         Bitmap.Width;
      finally
        Bitmap.Free;
      end;
    end;

    FListItem.MakeVisible(False);
end;

Now the class to obtain the geolocation info and the flag of the country.

type
 PGeoInfo   = ^TGeoInfo;
 TGeoInfo   = record
  Status        : string;
  CountryCode   : string;
  CountryName   : string;
  RegionCode    : string;
  City          : string;
  ZipPostalCode : string;
  Latitude      : Double;
  Longitude     : Double;
  TimezoneName  : string;
  Gmtoffset     : string;
  Isdst         : string;
  FlagImage     : TPngImage;
  function LatitudeToString:string;
  function LongitudeToString:string;
 end;

 TGeoInfoClass = class
 private
    FIpAddress : string;
    FGeoInfo   : TGeoInfo;
 public
  property  GeoInfo : TGeoInfo read FGeoInfo;
  constructor Create(IpAddress : string); overload;
  Destructor  Destroy; override;
 end;

and the new function to retrieve the geolocation data from ipinfodb.com

procedure GetGeoInfo(const IpAddress : string;var GeoInfo :TGeoInfo);
var
  XMLDoc        : OleVariant;
  ANode         : OleVariant;
  FormatSettings: TFormatSettings;
  d             : Double;
  Success       : HResult;
  UrlImage      : string;
  XmlContent    : string;
  StreamData    : TMemoryStream;
begin
  GeoInfo.FlagImage:=nil;
  Success := CoInitializeEx(nil, COINIT_MULTITHREADED);
  try
      XmlContent:=WinInet_HttpGet(Format(UrlGeoLookupInfo,[IpAddress]));
      if XmlContent<>'' then
      begin
          XMLDoc := CreateOleObject('Msxml2.DOMDocument.6.0');
          XMLDoc.async := false;
          XMLDoc.LoadXML(XmlContent);
          XMLDoc.setProperty('SelectionLanguage','XPath');
          ANode:=XMLDoc.selectSingleNode('/Response/Status');
          if not VarIsNull(ANode) then GeoInfo.Status:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/CountryCode');
          if not VarIsNull(ANode) then GeoInfo.CountryCode:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/CountryName');
          if not VarIsNull(ANode) then GeoInfo.CountryName:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/RegionCode');
          if not VarIsNull(ANode) then GeoInfo.RegionCode:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/City');
          if not VarIsNull(ANode) then GeoInfo.City:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/ZipPostalCode');
          if not VarIsNull(ANode) then GeoInfo.ZipPostalCode:=ANode.Text;

          ANode:=XMLDoc.selectSingleNode('/Response/Latitude');
          if not VarIsNull(ANode) then
          begin
            FormatSettings.DecimalSeparator:='.';
            d:=StrToFloat(ANode.Text,FormatSettings);
            GeoInfo.Latitude:=d;
          end;

          ANode:=XMLDoc.selectSingleNode('/Response/Longitude');
          if not VarIsNull(ANode) then
          begin
            FormatSettings.DecimalSeparator:='.';
            d:=StrToFloat(ANode.Text,FormatSettings);
            GeoInfo.Longitude:=d;
          end;

          ANode:=XMLDoc.selectSingleNode('/Response/TimezoneName');
          if not VarIsNull(ANode) then GeoInfo.TimezoneName:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/Gmtoffset');
          if not VarIsNull(ANode) then GeoInfo.Gmtoffset:=ANode.Text;
          ANode:=XMLDoc.selectSingleNode('/Response/Isdst');
          if not VarIsNull(ANode) then GeoInfo.Isdst:=ANode.Text;
      end;
  finally
    case Success of
      S_OK, S_FALSE: CoUninitialize;
    end;
  end;

  if GeoInfo.CountryCode<>'' then //get the image
  begin
    GeoInfo.FlagImage  := TPngImage.Create;
    StreamData         := TMemoryStream.Create;
    try
       UrlImage:=Format(UrlFlags,[LowerCase(GeoInfo.CountryCode)]);
          WinInet_HttpGet(UrlImage,StreamData);
          if StreamData.Size>0 then
          begin
            StreamData.Seek(0,0);
            try
              GeoInfo.FlagImage.LoadFromStream(StreamData);//load the image in a Stream
            except   //the image is not valid
              GeoInfo.FlagImage.Free;
              GeoInfo.FlagImage:=nil;
            end;
          end;
    finally
      StreamData.Free;
    end;
  end;

end;

The part of the maps is easy, just only need load a html page in a Twebbrowser with the Latitude and longitude to show in the current selected map

procedure GetMapListItem();
var
 HTMLWindow2  : IHTMLWindow2;
 MemoryStream : TMemoryStream;
 Item         : TListItem;
 Lat          : AnsiString;
 Lng          : AnsiString;
 Title        : AnsiString;
 MapType      : string;
 MapStr       : AnsiString;

//sorry , but the html pages contains a lot of % (porcent) chars
function ReplaceTag(const PageStr,Tag,NewValue:string):AnsiString;
begin
   Result:=AnsiString(StringReplace(PageStr,Tag,NewValue,[rfReplaceAll]));
end;

begin
    Item:=ListViewIPaddress.Selected;
    if not Assigned(Item) then  exit;
    if Item.SubItems.Count<COLUMN_Latitude then Exit;
    if Item.SubItems[COLUMN_Latitude]='' then Exit;

    Lat:=AnsiString(Item.SubItems[COLUMN_Latitude]);
    Lng:=AnsiString(Item.SubItems[COLUMN_Longitude]);
    Title:=AnsiString(Format('(%s,%s) %s - %s',[Lat,Lng,Item.SubItems[COLUMN_RemoteServer],Item.SubItems[COLUMN_RemoteIP]]));
    MapType:=ComboBoxTypes.Text;

   WebBrowser1.Navigate('about:blank');
   while WebBrowser1.ReadyState < READYSTATE_INTERACTIVE do
    Application.ProcessMessages;

    if Assigned(WebBrowser1.Document) then
    begin
      MemoryStream := TMemoryStream.Create;
      try
        case FCurrentMapType of
          Google_Maps    : MapStr:=GoogleMapsPage;
          Yahoo_Map      : MapStr:=YahooMapsPage;
          Bing_Map       : MapStr:=BingsMapsPage;
          Open_Streetmap : MapStr:=OpenStreetMapsPage;
        end;

        MapStr:=ReplaceTag(MapStr,'[Lat]',Lat);
        MapStr:=ReplaceTag(MapStr,'[Lng]',Lng);
        MapStr:=ReplaceTag(MapStr,'[Title]',Title);
        MapStr:=ReplaceTag(MapStr,'[Type]',MapType);
        MemoryStream.WriteBuffer(Pointer(MapStr)^, Length(MapStr));

        MemoryStream.Seek(0, soFromBeginning);
        (WebBrowser1.Document as IPersistStreamInit).Load(TStreamAdapter.Create(MemoryStream));
      finally
         MemoryStream.Free;
      end;
      HTMLWindow2 := (WebBrowser1.Document as IHTMLDocument2).parentWindow;
    end;
end;

and finally the html code embedded in a delphi const string for each map type

const
GoogleMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://maps.google.com/maps/api/js?sensor=true"></script> '+
'<script type="text/javascript"> '+
'  var map;'+
'  function initialize() { '+
'    geocoder = new google.maps.Geocoder();'+
'    var latlng = new google.maps.LatLng([Lat],[Lng]); '+
'    var myOptions = { '+
'      zoom: 12, '+
'      center: latlng, '+
'      mapTypeId: google.maps.MapTypeId.[Type] '+
'    }; '+
'    map = new google.maps.Map(document.getElementById("map_canvas"), myOptions); '+
'    var marker = new google.maps.Marker({'+
'      position: latlng, '+
'      title: "[Title]", '+
'      map: map '+
'  });'+
'  } '+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

YahooMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://api.maps.yahoo.com/ajaxymap?v=3.8&amp;appid=08gJIU7V34H9WlTSGrIyEIb73GLT5TpAaF2HzOSJIuTO2AVn6qzftRPDQtcQyynObIG8"></script> '+
'<script type="text/javascript"> '+
'  function initialize() '+
'{'+
'  var map = new YMap ( document.getElementById ( "map_canvas" ) );'+
'  map.addTypeControl();'+
'  map.addZoomLong(); '+
'  map.addPanControl();'+
'	 map.setMapType ( YAHOO_MAP_[Type] );'+
'	 var geopoint = new YGeoPoint ( [Lat] , [Lng] ); '+
'	 map.drawZoomAndCenter ( geopoint , 5 );'+
'  var newMarker= new YMarker(geopoint); '+
'  var markerMarkup = "[Title]";'+
'	 newMarker.openSmartWindow(markerMarkup);'+
'	 map.addOverlay(newMarker);'+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

BingsMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script type="text/javascript" src="http://dev.virtualearth.net/mapcontrol/mapcontrol.ashx?v=6.2"></script> '+
'<script type="text/javascript"> '+
'var map = null; '+
'  function initialize() '+
'{'+
'        map = new VEMap("map_canvas"); '+
'        map.LoadMap(new VELatLong([Lat],[Lng]), 10 ,"h" ,false);'+
'        map.SetMapStyle(VEMapStyle.[Type]);'+
'        map.ShowMiniMap((document.getElementById("map_canvas").offsetWidth - 180), 200, VEMiniMapSize.Small);'+
'        map.SetZoomLevel (12);'+
'	       shape = new VEShape(VEShapeType.Pushpin, map.GetCenter()); '+
'	       shape.SetTitle("[Title]");'+
'	       map.AddShape ( shape );'+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

OpenStreetMapsPage: AnsiString =
'<html> '+
'<head> '+
'<meta name="viewport" content="initial-scale=1.0, user-scalable=yes" /> '+
'<script src="http://www.openlayers.org/api/OpenLayers.js"></script> '+
'<script type="text/javascript"> '+
'  function initialize() '+
'{'+
'    map = new OpenLayers.Map("map_canvas");'+
'    map.addLayer(new OpenLayers.Layer.OSM()); '+
'    var lonLat = new OpenLayers.LonLat( [Lng] , [Lat] ) '+
'          .transform( '+
'            new OpenLayers.Projection("EPSG:4326"), '+
'            map.getProjectionObject() '+
'          ); '+
'    var zoom=16; '+
'    var markers = new OpenLayers.Layer.Markers( "Markers" );  '+
'    map.addLayer(markers); '+
'    markers.addMarker(new OpenLayers.Marker(lonLat)); '+
'    map.setCenter (lonLat, zoom); '+
'}'+
''+'</script> '+
'</head> '+
'<body onload="initialize()"> '+
'  <div id="map_canvas" style="width:100%; height:100%"></div> '+
'</body>'+
'</html>';

Check the full source code on Github
