Delphi and WMI Events

The WMI (Windows Management Instrumentation) is mainly know but retrieve hardware and software information using WQL sentences like Select * from Win32_Printer, but the WMI has much more of that. one of the more exciting features is the capability of inform about any particular change in the system using a Event.

Maybe in the past, in delphi forums you are see questions like : How Can I Be Notified When a Process Begins/Ends? How Can I Determine When a Removable Drive Gets Connected/Disconnected? or even How Can I Be Notified Any Time a Network Cable Gets Unplugged? . All that questions and more can answered using the WMI events.

Today I will show you, how you can do cool things with the WMI events like

Determine when a Removable Drive Gets Connected
Determine when a Removable Drive Gets Disconnected
Detect when a Process start
Detect when a Process is finished
Detect when a Thread start
Detect when a Thread is finished
Detect when a network connection has been lost
Detect when a Dll is loaded for an application

Types of Wmi Events

Before to work with the WMI Events we need a brief introduction. exists two types of WMI events intrinsic events and extrinsic events.

Intrinsic Events

An intrinsic event is an event that occurs in response to a change in the WMI data model (the data model or repository is the location where all the WMI information is stored). Each intrinsic event class represents a specific type of change and occurs when WMI or a provider creates, deletes, or modifies a namespace, class, or class instance. For example, if you attach a new printer to the system, you are modifying the Win32_Printer class adding a new instance (record) to the data model, this action will be reflected by the __InstanceCreationEvent event.

This is the list of the WMI Intrinsic Events

__ClassCreationEvent	Notifies a consumer when a class is created.
__ClassDeletionEvent	Notifies a consumer when a class is deleted.
__ClassModificationEvent	Notifies a consumer when a class is modified.
__InstanceCreationEvent	Notifies a consumer when a class instance is created.
__InstanceOperationEvent	Notifies a consumer when any instance event occurs, such as creation, deletion, or modification of the instance. You can use this class in queries to get all types events associated with an instance.
__InstanceDeletionEvent	Notifies a consumer when an instance is deleted.
__InstanceModificationEvent	Notifies a consumer when an instance is modified.
__NamespaceCreationEvent	Notifies a consumer when a namespace is created.
__NamespaceDeletionEvent	Notifies a consumer when a namespace is deleted.
__NamespaceModificationEvent	Notifies a consumer when a namespace is modified.
__ConsumerFailureEvent	Notifies a consumer when some other event is dropped due to a failure on the part of an event consumer.
__EventDroppedEvent	Notifies a consumer when some other event is dropped instead of being delivered to the requesting event consumer.
__EventQueueOverflowEvent	Notifies a consumer when an event is dropped as a result of a delivery queue overflow.
__MethodInvocationEvent	Notifies a consumer when a method call event occurs.

Al least which you are writing a WMI provider or something like that, you will use only the events related to the Instance class like the

the WQL syntax to make a Event Query is

[sourcecode language=”text” wraplines=”false”]
EVENT-WQL = "SELECT" "FROM" /

OPTIONAL-WITHIN = ["WITHIN" ]
INTERVAL = 1*MODULOREAL
EVENT-WHERE = ["WHERE" ]

EVENT-EXPR = ( ( "ISA" ) /
)
["GROUP WITHIN"
( ["BY" [ DOT] ]
["HAVING" ]] )
INSTANCE-STATE = "TARGETINSTANCE" / "PREVIOUSINSTANCE"
[/sourcecode]

Now check this simple WQL sentence.

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"
[/sourcecode]

In this sentence you are querying for the __InstanceCreationEvent Wmi event occurred in the Win32_LogicalDisk class or in simple words “Tell me when a new instance (record) is added to the Win32_LogicalDisk class”, so this will happen when you insert a new drive in your system.

Notes:

The WITHIN keyword is used to specify the polling interval for the events. A polling interval is the interval that WMI uses as the maximum amount of time that can pass before notification of an event must be delivered.

The TargetInstance is used to reference to the instance of the event class to monitor. Note that we did not use “=” operator . The only valid comparison operator when referecing TargetInstance is the keyword “ISA”.

Now with this query using the __InstanceDeletionEvent you will be notified when the record is removed from the wmi repository, in this particular case this event will be raised when a logical disk is removed from the system.

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"
[/sourcecode]

You can also detect changes over the instance. in this case you will need write a sentence (using the __InstanceModificationEvent event) like so

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceModificationEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"
[/sourcecode]

this event will be raised when occurs a change in the logical disk instance, for example when the Label of the disk is changed.

Extrinsic Events

The extrinsic events represent events that do not directly link to standard WMI model and are implemented for a particular WMI provider. this events are designed to do specific tasks over a particular provider. examples of this events are

The WQL sentence to access these events is even simpler then the necessary to access the Intrinsic events.

check this sample, in this case using the Win32_ProcessStartTrace class we are monitoring when a new process called notepad.exe is started.

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ProcessStartTrace Where processName="notepad.exe"
[/sourcecode]

Now to check when the process called notepad.exe is stopped.

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ProcessStopTrace Where processName="notepad.exe"
[/sourcecode]

Receiving a WMI Event

You can receive the WMI events in two modes semisynchronous or asynchronous. The SWbemServices.ExecNotificationQuery method receive the events in a semisynchronous way y for asynchronous execution you must use the SWbemServices.ExecNotificationQueryAsync method.

semisynchronous

In order to use the SWbemServices.ExecNotificationQuery method you must follow these steps

Create a instance to the WMI service
Connect to the WMI service
Execute the event in sync mode
Start a loop to receive the events
Receive the event using the SWbemEventSource.NextEvent Method
Check for error code returned and compare with the wbemErrTimedOut ($80043001) value
process the received event

Note : the next samples use late binding to access the wmi.

Check this console application to receive the intrinsic event __InstanceCreationEvent over the Win32_Process class

[sourcecode language=”delphi” wraplines=”false”]
{$APPTYPE CONSOLE}

uses
Windows,
SysUtils,
ActiveX,
ComObj,
Variants;

//detect when a key was pressed in the console window
function KeyPressed:boolean;
var
lpNumberOfEvents : DWORD;
lpBuffer : _INPUT_RECORD;
lpNumberOfEventsRead : DWORD;
nStdHandle : THandle;
begin
Result:=false;
nStdHandle := GetStdHandle(STD_INPUT_HANDLE);
lpNumberOfEvents:=0;
GetNumberOfConsoleInputEvents(nStdHandle,lpNumberOfEvents);
if lpNumberOfEvents<> 0 then
begin
PeekConsoleInput(nStdHandle,lpBuffer,1,lpNumberOfEventsRead);
if lpNumberOfEventsRead <> 0 then
begin
if lpBuffer.EventType = KEY_EVENT then
begin
if lpBuffer.Event.KeyEvent.bKeyDown then
Result:=true
else
FlushConsoleInputBuffer(nStdHandle);
end
else
FlushConsoleInputBuffer(nStdHandle);
end;
end;
end;

Procedure Monitor_Async_Win32_Process;
const
WbemUser =”;
WbemPassword =”;
WbemComputer =’localhost’;
wbemFlagForwardOnly = $00000020;
wbemErrTimedout = $80043001;
var
FSWbemLocator : OLEVariant;
FWMIService : OLEVariant;
FWbemObjectSet: OLEVariant;
FEventResult : OLEVariant;
begin
//Create the WMI Scripting Instance
FSWbemLocator := CreateOleObject(‘WbemScripting.SWbemLocator’);
//Connect to the WMI service
FWMIService := FSWbemLocator.ConnectServer(WbemComputer, ‘root\CIMV2’, WbemUser, WbemPassword);
//Execute the event in sync way
FWbemObjectSet:= FWMIService.ExecNotificationQuery(‘Select * from __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process"’);
while not KeyPressed do
begin
try
//receive the event , wai until 100 milliseconds.
FEventResult := FWbemObjectSet.NextEvent(100);
except
on E:EOleException do
//Check for the timeout and ignore
if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then
FEventResult:=Null
else
raise;
end;

//process the received event info
if not VarIsNull(FEventResult) then
begin
Writeln(Format(‘Caption %s’,[FEventResult.TargetInstance.Caption]));
Writeln(Format(‘ProcessId %s’,[FEventResult.TargetInstance.ProcessId]));
Writeln(”);
end;

//clear the olevariant variable
FEventResult:=Unassigned;
end;
end;

var
Success : HResult;
begin
try
Writeln(‘Press any key to exit’);
Success:=CoInitialize(nil);
try
Monitor_Async_Win32_Process;
finally
case Success of
S_OK, S_FALSE: CoUninitialize;
end;
end;
except
on E:Exception do
Writeln(E.Classname, ‘:’, E.Message);
end;
Readln;
end.
[/sourcecode]

Ok now i want your attention in this part of the code

[sourcecode language=”delphi” wraplines=”false”]
//process the received event info
if not VarIsNull(FEventResult) then
begin
Writeln(Format(‘Caption %s’,[FEventResult.TargetInstance.Caption]));
Writeln(Format(‘ProcessId %s’,[FEventResult.TargetInstance.ProcessId]));
Writeln(”);
end;
[/sourcecode]

There you are accessing the properties returned by the SWbemEventSource.NextEvent Method, the main property is the TargetInstance which point to the class used in the WQL sentence (in this case the Win32_Process). so you can retrieve any property or method exposed by this class.

Check this sample which monitor when the notepad.exe process is started and then kill the process inmediatly.

[sourcecode language=”delphi” wraplines=”false”]
Procedure Monitor_Async_Win32_Process;
const
WbemUser =”;
WbemPassword =”;
WbemComputer =’localhost’;
wbemFlagForwardOnly = $00000020;
wbemErrTimedout = $80043001;
var
FSWbemLocator : OLEVariant;
FWMIService : OLEVariant;
FWbemObjectSet: OLEVariant;
FEventResult : OLEVariant;
begin
FSWbemLocator := CreateOleObject(‘WbemScripting.SWbemLocator’);
FWMIService := FSWbemLocator.ConnectServer(WbemComputer, ‘root\CIMV2’, WbemUser, WbemPassword);
//monitor only the notepad.exe processes
FWbemObjectSet:= FWMIService.ExecNotificationQuery(‘Select * from __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process" and TargetInstance.Caption="notepad.exe"’);
while not KeyPressed do
begin
try
//receive the event , wai until 100 milliseconds.
FEventResult := FWbemObjectSet.NextEvent(100);
except
on E:EOleException do
//Check for the timeout and ignore
if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then
FEventResult:=Null
else
raise;
end;

//clear the olevariant variable
FEventResult:=Unassigned;
end;
end;
[/sourcecode]

Ok all this works fine, but in real world applications in very few cases you use a console application to do this kind of task. so to use the SWbemServices.ExecNotificationQuery method from a VCL application you can encapsulate the logic inside a Thread and using a Windows Message or callback function you can inform to the main thread which the event arrives.

See the next code which declare a thread called TWmiSyncEventThread to receive the WMI events.

[sourcecode language=”delphi” wraplines=”false”]
unit uWmiEventThread;

interface

uses
Classes;

type
TProcWmiEventThreadeCallBack = procedure(const AObject: OleVariant) of object;
TWmiSyncEventThread = class(TThread)
private
Success : HResult;
FSWbemLocator: OleVariant;
FWMIService : OleVariant;
FEventSource : OleVariant;
FWbemObject : OleVariant;
FCallBack : TProcWmiEventThreadeCallBack;
FWQL : string;
FServer : string;
FUser : string;
FPassword : string;
FNameSpace : string;
TimeoutMs : Integer;
procedure RunCallBack;
public
Constructor Create(CallBack : TProcWmiEventThreadeCallBack;const Server,User,PassWord,NameSpace,WQL:string;iTimeoutMs : Integer); overload;
destructor Destroy; override;
procedure Execute; override;
end;

implementation

uses
SysUtils,
ComObj,
Variants,
ActiveX;

constructor TWmiSyncEventThread.Create(CallBack : TProcWmiEventThreadeCallBack;const Server,User,PassWord,NameSpace,WQL:string;iTimeoutMs : Integer);
begin
inherited Create(False);
FreeOnTerminate := True;
FCallBack := CallBack;
FWQL := WQL;
FServer := Server;
FUser := User;
FPassword := PassWord;
FNameSpace := NameSpace;
TimeoutMs := iTimeoutMs;
end;

destructor TWmiSyncEventThread.Destroy;
begin
FSWbemLocator:=Unassigned;
FWMIService :=Unassigned;
FEventSource :=Unassigned;
FWbemObject :=Unassigned;
inherited;
end;

procedure TWmiSyncEventThread.Execute;
const
wbemErrTimedout = $80043001;
// wbemFlagForwardOnly = $00000020;
begin
Success := CoInitialize(nil); //CoInitializeEx(nil, COINIT_MULTITHREADED);
try
FSWbemLocator := CreateOleObject(‘WbemScripting.SWbemLocator’);
FWMIService := FSWbemLocator.ConnectServer(FServer, FNameSpace, FUser, FPassword);
//FEventSource := FWMIService.ExecNotificationQuery(FWQL,WideString(‘WQL’), wbemFlagForwardOnly, null);
FEventSource := FWMIService.ExecNotificationQuery(FWQL);
while not Terminated do
begin
try
FWbemObject := FEventSource.NextEvent(TimeoutMs); //set the max time to wait (ms)
except
on E:EOleException do
if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then //Check for the timeout exception and ignore if exist
FWbemObject:=Null
else
raise;
end;

if FindVarData(FWbemObject)^.VType <> varNull then
Synchronize(RunCallBack);

FWbemObject:=Unassigned;
end;
finally
case Success of
S_OK, S_FALSE: CoUninitialize;
end;
end;
end;

procedure TWmiSyncEventThread.RunCallBack;
begin
FCallBack(FWbemObject);
end;

end.
[/sourcecode]

And to use from your own code only you must declare a call back function to receive the result of the event.

[sourcecode language=”delphi” wraplines=”false”]
TForm1 = class(TForm)
private
WmiThread : TWmiSyncEventThread;
procedure Log(const AObject: OleVariant);
public
end;
[/sourcecode]

To begin to receive the event

[sourcecode language=”delphi” wraplines=”false”]

WmiThread:=TWmiSyncEventThread.Create(
Log,
‘.’,
”,
”,
‘root\CIMV2’,
‘Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process"’,
100);
[/sourcecode]

and the Log function

[sourcecode language=”delphi” wraplines=”false”]
procedure TForm1.Log(const AObject: OleVariant);
begin
//do your stuff here
Memo1.Lines.Add(AObject.TargetInstance.Caption);
end;
[/sourcecode]

finally to stop and free the resources you must call WmiThread.Terminate;

If you wanna play more with this thread check this sample application with source code included.

asynchronous

In order to use the SWbemServices.ExecNotificationQueryAsync method you must follow these steps

Create an instance to the WMI service
Create an instance to the WMI sink
Assign the event handler for the sink
Connect to the WMI service
Execute the event in async mode
Receive and process the event using the event handler

Note : the next samples uses the WbemScripting_TLB unit to access the wmi.

Using the WbemScripting_TLB unit (wrapper generated by dephi) for execute the ExecNotificationQueryAsync method is the more affordable way.

Check this short snippet to initializate the WMI service and start to wait for the event in asynchronous mode.

[sourcecode language=”delphi” wraplines=”false”]

type
TFrmMain = class(TForm)
private
FSink : TSWbemSink;
FLocator : ISWbemLocator;
FServices : ISWbemServices;
public
procedure EventReceived(ASender: TObject; const objWbemObject: ISWbemObject; const objWbemAsyncContext: ISWbemNamedValueSet);
end;

procedure TFrmMain.ButtonRunClick(Sender: TObject);
const
WQL = ‘SELECT * FROM __InstanceCreationEvent WITHIN 1 WHERE TargetInstance ISA "Win32_Process"’;
begin
FLocator := CoSWbemLocator.Create;
//Connect to the WMI service
FServices := FLocator.ConnectServer(‘.’, ‘root\cimv2′, ”,”, ”, ”, wbemConnectFlagUseMaxWait, nil);
//create the sink instance
FSink := TSWbemSink.Create(self);
//assign the event handler
FSink.OnObjectReady := EventReceived;
//Run the ExecNotificationQueryAsync
FServices.ExecNotificationQueryAsync(FSink.DefaultInterface,WQL,’WQL’, 0, nil, nil);
end;

//The event handler
procedure TFrmMain.EventReceived(ASender: TObject; const objWbemObject: ISWbemObject; const objWbemAsyncContext: ISWbemNamedValueSet);
var
PropVal: OLEVariant;
begin
PropVal := objWbemObject;
Memo1.Lines.Add(Format(‘Caption : %s ‘,[PropVal.TargetInstance.Caption]));
Memo1.Lines.Add(Format(‘ProcessID : %s ‘,[PropVal.TargetInstance.ProcessID]));
end;
[/sourcecode]

the same rules applied for the above code about access the properties of the TargetInstance when you uses Intrinsic events. download the sample application with source code from here.

Check this list of samples querys to do specific tasks

Determine when a Removable Drive Gets Connected

using the intrinsic event __InstanceCreationEvent and the Win32_LogicalDisk class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA ‘Win32_LogicalDisk’ AND TargetInstance.DriveType=2
[/sourcecode]

using the intrinsic event __InstanceCreationEvent and the Win32_Volume class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA ‘Win32_Volume’ AND TargetInstance.DriveType=2
[/sourcecode]

Determine when a Removable Drive Gets Disconnected

using the intrinsic event __InstanceDeletionEvent and the Win32_LogicalDisk class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA ‘Win32_LogicalDisk’ AND TargetInstance.DriveType=2
[/sourcecode]

using the intrinsic event __InstanceDeletionEvent and the Win32_Volume class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA ‘Win32_Volume’ AND TargetInstance.DriveType=2
[/sourcecode]

Detect when a Process start

using the intrinsic event __InstanceCreationEvent and the Win32_Process class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA ‘Win32_Process’
[/sourcecode]

using the extrinsic event Win32_ProcessStartTrace located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ProcessStartTrace
[/sourcecode]

Detect when a Process is finished

using the intrinsic event __InstanceDeletionEvent and the Win32_Process class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA ‘Win32_Process’
[/sourcecode]

using the extrinsic event Win32_ProcessStopTrace located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ProcessStopTrace
[/sourcecode]

Detect when a Thread start

using the intrinsic event __InstanceCreationEvent and the Win32_Thread class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA ‘Win32_Thread’
[/sourcecode]

using the extrinsic event Win32_ThreadStartTrace located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ThreadStartTrace
[/sourcecode]

Detect when a Thread is finished

using the intrinsic event __InstanceDeletionEvent and the Win32_Thread class located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA ‘Win32_Thread’
[/sourcecode]

using the extrinsic event Win32_ThreadStopTrace located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ThreadStopTrace
[/sourcecode]

Detect when a network connection has been lost

using the extrinsic event MSNdis_StatusMediaDisconnect located in the root\wmi namespace

[sourcecode language=”text” wraplines=”false”]
Select * From MSNdis_StatusMediaDisconnect
[/sourcecode]

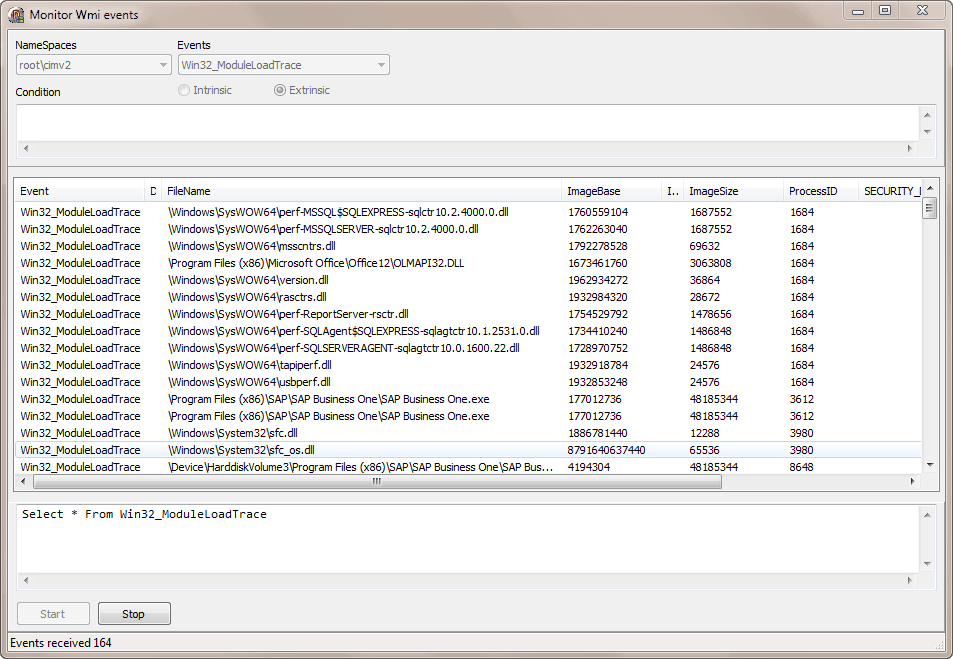

Detect when a Dll is loaded for an application

using the extrinsic event Win32_ModuleLoadTrace located in the root\cimv2 namespace

[sourcecode language=”text” wraplines=”false”]
Select * From Win32_ModuleLoadTrace
[/sourcecode]

If you want learn more about the WMI events try these articles.

9 responses

Neftalí -Germán Estévez-

April 18, 2011

Hola Rodrigo.
Fantástico artículo. Como siempre el nivel es muy alto y la explicación muy clara. Para los que nos interesa el tema son de gran ayuda.

Un saludo.

Loading…

1. Rodrigo

  April 18, 2011

  Gracias Neftali, por tus palabras y por tomarte la molestia de dejar un comentario. nos vemos.

  Loading…

Accesing the WMI from Delphi and FPC via COM (without late binding or WbemScripting_TLB) « The Road to Delphi – a Blog About Delphi Programming (mostly)

April 21, 2011

[…] what about the Wmi events? Ok here i leave the code to manage an async event using the COM WMI […]

Loading…

/*Prog*/ Delphi-Neftalí /*finProg*/ » Un mes más… 15/05/2011

May 16, 2011

[…] hace unos cuantos días que Rodrigo (RRUZ) publicó en su blog una entrada sobre cómo utilizar eventos en WMI. imprescindible (esta y las anteriores sobre WMI) para aquellos de vosotros que estéis interesados […]

Loading…

Mahmood

October 27, 2011

Great Article , Thanks in Advance …

Loading…

faruk demirel

December 1, 2016

Hi Rodrigo,
This thread is very useful for me and I learned lots of thing about WMI notification.

I want to construct a notification for multiple namespaces and than distinguish the real namespace after notification. e.g:
WQL := ‘(TargetInstance ISA “DS_User”) or (TargetInstance ISA “DS_Group”)’;

Select * From __InstanceModificationEvent Within 1 Where ‘+WQL, 0)

after getting notified I need to detect at which namespace does this notification has been occurred in order to read correct property values. How can I do this?

Thanks?

Loading…

1. Rodrigo

  December 1, 2016

  You can’t a build a notification for multiple namespaces. You need create one notification by namespace.

  Loading…

  1. faruk

    December 7, 2016

    Thanks.

    Loading…

Christian

September 26, 2017

Great work, helps a lot

Loading…

Delphi and WMI Events
