Some days ago a question in stackoverflow.com was made, about how list the contents of a folder of a remote machine. I answer that question using a WMI approach mentioning the CIM_DataFile and CIM_Directory WMI Classes, these classes  can be used to retrieve information about files, folders and perform many task like copy, rename, delete and  compress.  So today I will show you how you can use these classes form Delphi.

First you must know which in order to access any file or folder  in a remote machine need not be a shared resource, only just must enable the WMI remote access in the machine to access, check these articles for more details about how enable the remote wmi access.

• Connecting to WMI on a Remote Computer
• Connecting Between Different Operating Systems
• Connecting Through Windows Firewall

After of enabling the WMI remote access in the client machine you are ready to access the files and folders.

Before to begin

Now some tips which can help you to deal both classes

1. When you make a WMI query against these classes always you must use filters (Where conditions) to restrict the result of these WMI classes.
2. Always you must use the Drive field as condition, due to two reasons, first these classes will scan all directories on any available storage device. So this task can take some time. and second to diffentiate for example a folder called Windows located in the Drive C: and in the Drive D:.
3. The Wmi interprets the \ (Backslash) character as a reserved symbol so you need to escape that character to avoid problems with the WQL sentence.
4. You can use these classes to find files or folders which match with a criteria, but remember if you not specify the Path property the WMI will scan the entire drive. so try to avoid  sentences like

FWMIService.ExecQuery(Format('SELECT * FROM CIM_DataFile Where Drive="%s" AND Extension="%s"',['C:','jpg']),'WQL',wbemFlagForwardOnly);//this will return all the jpg files in the C Drive

Note :
The code showed in this article uses Late binding to access the WMI, if you want use another way to access the WMI from delphi (like direct COM access or importing th e Microsoft scripting library) take a look to the Delphi WMI Code creator.

Listing Folder and Files

//list the files and folders of a specified Path (non recursive)
procedure  ListFolderContent(Const WbemComputer,WbemUser,WbemPassword,Path:string);
const
  wbemFlagForwardOnly = $00000020;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
  WmiPath       : string;
  Drive         : string;
begin;
  //Extract the drive from the Path
  Drive   :=ExtractFileDrive(Path);
  //add a back slash to the end of the folder
  WmiPath :=IncludeTrailingPathDelimiter(Copy(Path,3,Length(Path)));
  //escape the folder name
  WmiPath :=StringReplace(WmiPath,'\','\\',[rfReplaceAll]);

  Writeln('Connecting');
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  //establish the connection
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);

  Writeln('Files');
  //get the files
  FWbemObjectSet:= FWMIService.ExecQuery(Format('SELECT * FROM CIM_DataFile Where Drive="%s" AND Path="%s"',[Drive,WmiPath]),'WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('%s',[FWbemObject.Name]));// String
    FWbemObject:=Unassigned;
  end;

  Writeln('Folders');
  //get the folders
  FWbemObjectSet:= FWMIService.ExecQuery(Format('SELECT * FROM CIM_Directory Where Drive="%s" AND Path="%s"',[Drive,WmiPath]),'WQL',wbemFlagForwardOnly);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    Writeln(Format('%s',[FWbemObject.Name]));// String
    FWbemObject:=Unassigned;
  end;
end;

How to use

begin
 try
    CoInitialize(nil);
    try
      //ListFolderContent('.','','','C:\data'); //get the content of the folder Data in he local machine
      ListFolderContent('remotemachine','user_name','password','C:\Data');
    finally
      CoUninitialize;
    end;
 except
    on E:EOleException do
        Writeln(Format('EOleException %s %x', [E.Message,E.ErrorCode]));
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Writeln('Press Enter to exit');
 Readln;
end.

Get info about a particular file or folder

This code will list the type, size, creation date, attributes, etc. of any file which you pass as parameter

procedure  GetCIM_DataFileInfo(const FileName:string);
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(FileName,'\','\\',[rfReplaceAll])]));
  Writeln(Format('AccessMask               %s',[FWbemObject.AccessMask]));// Uint32
  Writeln(Format('Archive                  %s',[FWbemObject.Archive]));// Boolean
  Writeln(Format('Caption                  %s',[FWbemObject.Caption]));// String
  Writeln(Format('Compressed               %s',[FWbemObject.Compressed]));// Boolean
  Writeln(Format('CompressionMethod        %s',[FWbemObject.CompressionMethod]));// String
  Writeln(Format('CreationClassName        %s',[FWbemObject.CreationClassName]));// String
  Writeln(Format('CreationDate             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.CreationDate))]));// Datetime
  Writeln(Format('CSCreationClassName      %s',[FWbemObject.CSCreationClassName]));// String
  Writeln(Format('CSName                   %s',[FWbemObject.CSName]));// String
  Writeln(Format('Description              %s',[FWbemObject.Description]));// String
  Writeln(Format('Drive                    %s',[FWbemObject.Drive]));// String
  Writeln(Format('EightDotThreeFileName    %s',[FWbemObject.EightDotThreeFileName]));// String
  Writeln(Format('Encrypted                %s',[FWbemObject.Encrypted]));// Boolean
  Writeln(Format('EncryptionMethod         %s',[FWbemObject.EncryptionMethod]));// String
  Writeln(Format('Extension                %s',[FWbemObject.Extension]));// String
  Writeln(Format('FileName                 %s',[FWbemObject.FileName]));// String
  Writeln(Format('FileSize                 %s',[FWbemObject.FileSize]));// Uint64
  Writeln(Format('FileType                 %s',[FWbemObject.FileType]));// String
  Writeln(Format('FSCreationClassName      %s',[FWbemObject.FSCreationClassName]));// String
  Writeln(Format('FSName                   %s',[FWbemObject.FSName]));// String
  Writeln(Format('Hidden                   %s',[FWbemObject.Hidden]));// Boolean
  Writeln(Format('InstallDate              %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.InstallDate))]));// Datetime
  Writeln(Format('InUseCount               %s',[FWbemObject.InUseCount]));// Uint64
  Writeln(Format('LastAccessed             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.LastAccessed))]));// Datetime
  Writeln(Format('LastModified             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.LastModified))]));// Datetime
  Writeln(Format('Manufacturer             %s',[FWbemObject.Manufacturer]));// String
  Writeln(Format('Name                     %s',[FWbemObject.Name]));// String
  Writeln(Format('Path                     %s',[FWbemObject.Path]));// String
  Writeln(Format('Readable                 %s',[FWbemObject.Readable]));// Boolean
  Writeln(Format('Status                   %s',[FWbemObject.Status]));// String
  Writeln(Format('System                   %s',[FWbemObject.System]));// Boolean
  Writeln(Format('Version                  %s',[FWbemObject.Version]));// String
  Writeln(Format('Writeable                %s',[FWbemObject.Writeable]));// Boolean
  Writeln('');
end;

In the above code you note two things, first I’m using the SWbemServices.Get method instead SWbemServices.ExecQuery this is because the Get function retrieve a single instance of the wmi object path passed as parameter  (the wmi object path is a string that uniquely identifies a instances of a class). The second
which you must note is the WbemTimeToDateTime  function, this is a helper function to convert the returned WMI datetime values in UTC format to TDateTime.

This is the code of that function, for more info check the documentation about the WbemScripting.SWbemDateTime object.

function WbemTimeToDateTime(const V : OleVariant): TDateTime;
var
  Dt : OleVariant;
begin
  Result:=0;
  if VarIsNull(V) then exit;
  Dt:=CreateOleObject('WbemScripting.SWbemDateTime');
  Dt.Value := V;
  Result:=Dt.GetVarDate;
end;

This code will list the size, creation date, atributes, etc. of any folder which you pass as parameter

procedure  GetCIM_DirectoryInfo(const FolderName:string);
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(FolderName,'\','\\',[rfReplaceAll])]));
  Writeln(Format('AccessMask               %s',[FWbemObject.AccessMask]));// Uint32
  Writeln(Format('Archive                  %s',[FWbemObject.Archive]));// Boolean
  Writeln(Format('Caption                  %s',[FWbemObject.Caption]));// String
  Writeln(Format('Compressed               %s',[FWbemObject.Compressed]));// Boolean
  Writeln(Format('CompressionMethod        %s',[FWbemObject.CompressionMethod]));// String
  Writeln(Format('CreationClassName        %s',[FWbemObject.CreationClassName]));// String
  Writeln(Format('CreationDate             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.CreationDate))]));// Datetime
  Writeln(Format('CSCreationClassName      %s',[FWbemObject.CSCreationClassName]));// String
  Writeln(Format('CSName                   %s',[FWbemObject.CSName]));// String
  Writeln(Format('Description              %s',[FWbemObject.Description]));// String
  Writeln(Format('Drive                    %s',[FWbemObject.Drive]));// String
  Writeln(Format('EightDotThreeFileName    %s',[FWbemObject.EightDotThreeFileName]));// String
  Writeln(Format('Encrypted                %s',[FWbemObject.Encrypted]));// Boolean
  Writeln(Format('EncryptionMethod         %s',[FWbemObject.EncryptionMethod]));// String
  Writeln(Format('Extension                %s',[FWbemObject.Extension]));// String
  Writeln(Format('FileName                 %s',[FWbemObject.FileName]));// String
  Writeln(Format('FileSize                 %s',[FWbemObject.FileSize]));// Uint64
  Writeln(Format('FileType                 %s',[FWbemObject.FileType]));// String
  Writeln(Format('FSCreationClassName      %s',[FWbemObject.FSCreationClassName]));// String
  Writeln(Format('FSName                   %s',[FWbemObject.FSName]));// String
  Writeln(Format('Hidden                   %s',[FWbemObject.Hidden]));// Boolean
  Writeln(Format('InstallDate              %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.InstallDate))]));// Datetime
  Writeln(Format('InUseCount               %s',[FWbemObject.InUseCount]));// Uint64
  Writeln(Format('LastAccessed             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.LastAccessed))]));// Datetime
  Writeln(Format('LastModified             %s',[FormatDateTime('dd/mm/yyyy hh:nn:ss',WbemTimeToDateTime(FWbemObject.LastModified))]));// Datetime
  Writeln(Format('Name                     %s',[FWbemObject.Name]));// String
  Writeln(Format('Path                     %s',[FWbemObject.Path]));// String
  Writeln(Format('Readable                 %s',[FWbemObject.Readable]));// Boolean
  Writeln(Format('Status                   %s',[FWbemObject.Status]));// String
  Writeln(Format('System                   %s',[FWbemObject.System]));// Boolean
  Writeln(Format('Writeable                %s',[FWbemObject.Writeable]));// Boolean
  Writeln('');
end;

Compress a File or Folder using the NTFS compression

function  CompressFile(const FileName:string):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(FileName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Compress();
end;

function  CompressFolder(const FolderName:string;Recursive:Boolean):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
  StopFileName  : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(FolderName,'\','\\',[rfReplaceAll])]));
  if Recursive then
   Result:=FWbemObject.CompressEx(StopFileName, Null, Recursive)
  else
   Result:=FWbemObject.Compress();
end;

UnCompress a File or Folder using the NTFS compression

function  UnCompressFile(const FileName:string):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(FileName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.UnCompress();
end;

function  UnCompressFolder(const FolderName:string;Recursive:Boolean):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
  StopFileName  : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(FolderName,'\','\\',[rfReplaceAll])]));
  if Recursive then
   Result:=FWbemObject.UnCompressEx(StopFileName, Variants.Null, Recursive)
  else
   Result:=FWbemObject.UnCompress();
end;

Copy a single File or Folder

function  CopyFile(const SourceFileName,DestFileName:string):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(SourceFileName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Copy(DestFileName);
end;

function  CopyFolder(const SourceFolder,DestFolder:string;Recursive:Boolean):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
  StopFileName  : OleVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(SourceFolder,'\','\\',[rfReplaceAll])]));
  if Recursive then
    Result:=FWbemObject.CopyEx(DestFolder,StopFileName, Variants.Null, Recursive)
  else
    Result:=FWbemObject.Copy(DestFolder);
end;

Delete a File or Folder

function  DeleteFile(const FileName:string):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(FileName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Delete();
end;

//remove all the contents of the folder recursivily
function  DeleteFolder(const FolderName:string):integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(FolderName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Delete();
end;

Rename a File or Folder

function RenameFile(const OldName, NewName: string): Integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(OldName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Rename(NewName);
end;

function RenameFolder(const OldName, NewName: string): Integer;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_Directory.Name="%s"',[StringReplace(OldName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.Rename(NewName);
end;

Getting the permissions over a CIM_DataFile or CIM_Directory object

In order to get whether the caller has the permissions on the CIM_DataFile or CIM_Directory object you must use the GetEffectivePermission function with these flags

Value (Dec/Hex)	Meaning
FILE_READ_DATA (file)FILE_LIST_DIRECTORY (directory) 1 (0x1)	Grants the right to read data from the file. For a directory, this value grants the right to list the contents of the directory.
FILE_WRITE_DATA (file)FILE_ADD_FILE (directory) 2 (0x2)	Grants the right to write data to the file. For a directory, this value grants the right to create a file in the directory.
FILE_APPEND_DATA (file)FILE_ADD_SUBDIRECTORY (directory) 4 (0x4)	Grants the right to append data to the file. For a directory, this value grants the right to create a subdirectory.
FILE_READ_EA 8 (0x8)	Grants the right to read extended attributes.
FILE_WRITE_EA 16 (0x10)	Grants the right to write extended attributes.
FILE_EXECUTE (file)FILE_TRAVERSE (directory) 32 (0x20)	Grants the right to execute a file. For a directory, the directory can be traversed.
FILE_DELETE_CHILD (directory) 64 (0x40)	Grants the right to delete a directory and all the files it contains, even if the files are read-only.
FILE_READ_ATTRIBUTES 128 (0x80)	Grants the right to read file attributes.
FILE_WRITE_ATTRIBUTES 256 (0x100)	Grants the right to change file attributes.
DELETE 65536 (0x10000)	Grants delete access.
READ_CONTROL 131072 (0x20000)	Grants read access to the security descriptor and owner.
WRITE_DAC 262144 (0x40000)	Grants write access to the discretionary ACL.
WRITE_OWNER 524288 (0x80000)	Assigns the write owner.
SYNCHRONIZE 1048576 (0x100000)	Synchronizes access and allows a process to wait for an object to enter the signaled state.

function GetEffectivePermission(const FileName:string;Flags:integer):Boolean;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObject   : OLEVariant;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObject   := FWMIService.Get(Format('CIM_DataFile.Name="%s"',[StringReplace(FileName,'\','\\',[rfReplaceAll])]));
  Result:=FWbemObject.GetEffectivePermission(Flags);
end;

And use like this

GetEffectivePermission('C:\FooFolder\Foo_Filename.ext',FILE_READ_DATA or FILE_READ_ATTRIBUTES);

Getting the Status of a task

The functions Compress, UnCompress, Copy, Rename and Delete return a Result code which can be translated to a message using this function

function GetResultMessage(ResultCode:Integer) : string;
begin
  case ResultCode of
     0 : Result:='Success';
     2 : Result:='Access denied';
     8 : Result:='Unspecified failure';
     9 : Result:='Invalid object';
    10 : Result:='Object already exists';
    11 : Result:='File system not NTFS';
    12 : Result:='Platform not Windows NT or Windows 2000';
    13 : Result:='Drive not the same';
    14 : Result:='Directory not empty';
    15 : Result:='Sharing violation';
    16 : Result:='Invalid start file';
    17 : Result:='Privilege not held';
    21 : Result:='Invalid parameter'
  else
    Result := 'Unknown';
  end;
end;

Demo Application

Check this demo application which can list all the files and folders in a remote or local machine only using the WMI

checkout the full source code on Github.



The WMI (Windows Management Instrumentation) is mainly know but retrieve hardware and software information using WQL sentences like Select * from Win32_Printer, but the WMI has much more of that. one of the more exciting features is the capability of inform about any particular change in the system using a Event.

Maybe in the past, in delphi forums you are see questions like : How Can I Be Notified When a Process Begins/Ends? How Can I Determine When a Removable Drive Gets Connected/Disconnected? or even How Can I Be Notified Any Time a Network Cable Gets Unplugged? .  All that questions and more can answered using the WMI events.

Today I will show you, how you can do cool things with the WMI events like

• Determine when a Removable Drive Gets Connected
• Determine when a Removable Drive Gets Disconnected
• Detect when a Process start
• Detect when a Process is finished
• Detect when a Thread start
• Detect when a Thread is finished
• Detect when a network connection has been lost
• Detect when a Dll is loaded for an application

Types of Wmi Events

Before to work with the WMI Events we need a brief introduction. exists two types of WMI events intrinsic events and extrinsic events.

Intrinsic Events

An intrinsic event is an event that occurs in response to a change in the WMI data model (the data model or repository is the location where all the WMI information is stored). Each intrinsic event class represents a specific type of change and occurs when WMI or a provider creates, deletes, or modifies a namespace, class, or class instance. For example, if you attach a new printer to the system, you are modifying the Win32_Printer class adding a new instance (record) to the data model, this action  will be reflected by the __InstanceCreationEvent event.

This is the list of the WMI Intrinsic Events

__ClassCreationEvent	Notifies a consumer when a class is created.
__ClassDeletionEvent	Notifies a consumer when a class is deleted.
__ClassModificationEvent	Notifies a consumer when a class is modified.
__InstanceCreationEvent	Notifies a consumer when a class instance is created.
__InstanceOperationEvent	Notifies a consumer when any instance event occurs, such as creation, deletion, or modification of the instance. You can use this class in queries to get all types events associated with an instance.
__InstanceDeletionEvent	Notifies a consumer when an instance is deleted.
__InstanceModificationEvent	Notifies a consumer when an instance is modified.
__NamespaceCreationEvent	Notifies a consumer when a namespace is created.
__NamespaceDeletionEvent	Notifies a consumer when a namespace is deleted.
__NamespaceModificationEvent	Notifies a consumer when a namespace is modified.
__ConsumerFailureEvent	Notifies a consumer when some other event is dropped due to a failure on the part of an event consumer.
__EventDroppedEvent	Notifies a consumer when some other event is dropped instead of being delivered to the requesting event consumer.
__EventQueueOverflowEvent	Notifies a consumer when an event is dropped as a result of a delivery queue overflow.
__MethodInvocationEvent	Notifies a consumer when a method call event occurs.

Al least which you are writing a WMI provider or something like that, you will use only  the events related to the Instance class like the

• __InstanceCreationEvent
• __InstanceOperationEvent
• __InstanceDeletionEvent
• __InstanceModificationEvent

the WQL syntax to make a Event Query is

EVENT-WQL = "SELECT"  "FROM" /

OPTIONAL-WITHIN = ["WITHIN" ]
INTERVAL = 1*MODULOREAL
EVENT-WHERE = ["WHERE" ]

EVENT-EXPR = ( ( "ISA"  ) /
               )
              ["GROUP WITHIN"
                    ( ["BY" [ DOT] ]
                      ["HAVING" ]] )
INSTANCE-STATE = "TARGETINSTANCE" / "PREVIOUSINSTANCE"

Now check this simple WQL sentence.

Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"

In this sentence you are querying for the __InstanceCreationEvent Wmi event occurred in the Win32_LogicalDisk class or in simple words “Tell me when a new instance (record) is added to the Win32_LogicalDisk class”, so this will happen when you insert a new drive in your system.

Notes:

The WITHIN keyword is used to specify the polling interval for the events. A polling interval is the interval that WMI uses as the maximum amount of time that can pass before notification of an event must be delivered.

The TargetInstance is used to reference to the instance of the event class to monitor. Note that we did not use “=” operator . The only valid comparison operator when referecing TargetInstance is  the keyword “ISA”.

Now with this query using the __InstanceDeletionEvent you will be notified when the record is removed from the wmi repository, in this particular case this event will be raised when a logical disk is removed from the system.

Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"

You can also detect changes over the instance. in this case you will need write a sentence (using the __InstanceModificationEvent event) like so

Select * From __InstanceModificationEvent Within 1 Where TargetInstance ISA "Win32_LogicalDisk"

this event will be raised when occurs a change in the logical disk instance, for example when the Label of the disk is changed.

Extrinsic Events

The extrinsic events represent events that do not directly link to standard WMI model and are implemented for a particular WMI provider. this events are designed to do specific tasks over a particular provider. examples of this events are

• Win32_ComputerShutdownEvent
• Win32_DeviceChangeEvent
• Win32_ProcessStartTrace
• Win32_ThreadStartTrace
• Win32_ModuleLoadTrace

The WQL sentence to access these events is even simpler then the necessary to access the Intrinsic events.

check this sample, in this case using the Win32_ProcessStartTrace class we are monitoring when a new process called notepad.exe is started.

Select * From Win32_ProcessStartTrace Where processName="notepad.exe"

Now to check when the process called notepad.exe is stopped.

Select * From Win32_ProcessStopTrace Where processName="notepad.exe"

Receiving a WMI Event

You can receive the WMI events in two modes semisynchronous or asynchronous. The SWbemServices.ExecNotificationQuery  method receive the events in a semisynchronous way y for asynchronous execution you must use the SWbemServices.ExecNotificationQueryAsync method.

semisynchronous

In order to use the SWbemServices.ExecNotificationQuery  method you must follow these steps

1. Create a instance to the WMI service
2. Connect to the WMI service
3. Execute the event in sync mode
4. Start a loop to receive the events
5. Receive the event using the SWbemEventSource.NextEvent Method
6. Check for error code returned and compare with the wbemErrTimedOut ($80043001) value
7. process the received event

Note : the next samples use late binding to access the wmi.

Check this console application to receive the intrinsic event __InstanceCreationEvent over the Win32_Process class

{$APPTYPE CONSOLE}

uses
  Windows,
  SysUtils,
  ActiveX,
  ComObj,
  Variants;

//detect when a key was pressed in the console window
function KeyPressed:boolean;
var
lpNumberOfEvents     : DWORD;
lpBuffer             : _INPUT_RECORD;
lpNumberOfEventsRead : DWORD;
nStdHandle           : THandle;
begin
  Result:=false;
  nStdHandle := GetStdHandle(STD_INPUT_HANDLE);
  lpNumberOfEvents:=0;
  GetNumberOfConsoleInputEvents(nStdHandle,lpNumberOfEvents);
  if lpNumberOfEvents<> 0 then
  begin
    PeekConsoleInput(nStdHandle,lpBuffer,1,lpNumberOfEventsRead);
    if lpNumberOfEventsRead <> 0 then
    begin
      if lpBuffer.EventType = KEY_EVENT then
      begin
        if lpBuffer.Event.KeyEvent.bKeyDown then
          Result:=true
        else
          FlushConsoleInputBuffer(nStdHandle);
      end
      else
      FlushConsoleInputBuffer(nStdHandle);
    end;
  end;
end;

Procedure  Monitor_Async_Win32_Process;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
  wbemErrTimedout     = $80043001;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FEventResult  : OLEVariant;
begin
  //Create the WMI Scripting Instance
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  //Connect to the WMI service
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  //Execute the event in sync way
  FWbemObjectSet:= FWMIService.ExecNotificationQuery('Select * from __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process"');
  while not KeyPressed do
  begin
    try
     //receive the event , wai until 100 milliseconds.
     FEventResult := FWbemObjectSet.NextEvent(100);
    except
     on E:EOleException do
     //Check for the timeout and ignore
     if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then
       FEventResult:=Null
     else
     raise;
    end;

    //process the received event info
    if not VarIsNull(FEventResult) then
    begin
      Writeln(Format('Caption   %s',[FEventResult.TargetInstance.Caption]));
      Writeln(Format('ProcessId %s',[FEventResult.TargetInstance.ProcessId]));
      Writeln('');
    end;

    //clear the olevariant variable
    FEventResult:=Unassigned;
  end;
end;

var
  Success  : HResult;
begin
 try
    Writeln('Press any key to exit');
    Success:=CoInitialize(nil);
    try
      Monitor_Async_Win32_Process;
    finally
      case Success of
        S_OK, S_FALSE: CoUninitialize;
      end;
    end;
 except
    on E:Exception do
        Writeln(E.Classname, ':', E.Message);
 end;
 Readln;
end.

Ok now i want your attention in this part of the code

    //process the received event info
    if not VarIsNull(FEventResult) then
    begin
      Writeln(Format('Caption   %s',[FEventResult.TargetInstance.Caption]));
      Writeln(Format('ProcessId %s',[FEventResult.TargetInstance.ProcessId]));
      Writeln('');
    end;

There you are accessing the properties returned by the SWbemEventSource.NextEvent Method, the main property is the TargetInstance which point to the class used in the WQL sentence  (in this case the Win32_Process). so you can retrieve any property or method exposed by this class.

Check this sample which monitor when the notepad.exe process is started and then kill the process inmediatly.

Procedure  Monitor_Async_Win32_Process;
const
  WbemUser            ='';
  WbemPassword        ='';
  WbemComputer        ='localhost';
  wbemFlagForwardOnly = $00000020;
  wbemErrTimedout     = $80043001;
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FEventResult  : OLEVariant;
begin
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer(WbemComputer, 'root\CIMV2', WbemUser, WbemPassword);
  //monitor only the notepad.exe processes
  FWbemObjectSet:= FWMIService.ExecNotificationQuery('Select * from __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process" and TargetInstance.Caption="notepad.exe"');
  while not KeyPressed do
  begin
    try
     //receive the event , wai until 100 milliseconds.
     FEventResult := FWbemObjectSet.NextEvent(100);
    except
     on E:EOleException do
     //Check for the timeout and ignore
     if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then
       FEventResult:=Null
     else
     raise;
    end;

    //process the received event info
    if not VarIsNull(FEventResult) then
    begin
      Writeln(Format('Caption   %s',[FEventResult.TargetInstance.Caption]));
      Writeln(Format('ProcessId %s',[FEventResult.TargetInstance.ProcessId]));
      Writeln('Killing the Process ');
      FEventResult.TargetInstance.Terminate(0);
    end;

    //clear the olevariant variable
    FEventResult:=Unassigned;
  end;
end;

Ok all this works fine, but in real world applications in very few cases you use a console application to do this kind of task. so to use the SWbemServices.ExecNotificationQuery   method from a VCL application you can encapsulate the logic inside a Thread and using a Windows Message or  callback function you can inform to the main thread which the event arrives.

See the next code which declare a thread called TWmiSyncEventThread to receive the WMI events.

unit uWmiEventThread;

interface

uses
 Classes;

type
   TProcWmiEventThreadeCallBack = procedure(const AObject: OleVariant) of object;
   TWmiSyncEventThread    = class(TThread)
   private
     Success      : HResult;
     FSWbemLocator: OleVariant;
     FWMIService  : OleVariant;
     FEventSource : OleVariant;
     FWbemObject  : OleVariant;
     FCallBack    : TProcWmiEventThreadeCallBack;
     FWQL         : string;
     FServer      : string;
     FUser        : string;
     FPassword    : string;
     FNameSpace   : string;
     TimeoutMs    : Integer;
     procedure RunCallBack;
   public
     Constructor Create(CallBack : TProcWmiEventThreadeCallBack;const Server,User,PassWord,NameSpace,WQL:string;iTimeoutMs : Integer); overload;
     destructor Destroy; override;
     procedure Execute; override;
   end;

implementation

uses
 SysUtils,
 ComObj,
 Variants,
 ActiveX;

constructor TWmiSyncEventThread.Create(CallBack : TProcWmiEventThreadeCallBack;const Server,User,PassWord,NameSpace,WQL:string;iTimeoutMs : Integer);
begin
  inherited Create(False);
  FreeOnTerminate := True;
  FCallBack       := CallBack;
  FWQL            := WQL;
  FServer         := Server;
  FUser           := User;
  FPassword       := PassWord;
  FNameSpace      := NameSpace;
  TimeoutMs       := iTimeoutMs;
end;

destructor TWmiSyncEventThread.Destroy;
begin
  FSWbemLocator:=Unassigned;
  FWMIService  :=Unassigned;
  FEventSource :=Unassigned;
  FWbemObject  :=Unassigned;
  inherited;
end;

procedure TWmiSyncEventThread.Execute;
const
  wbemErrTimedout     = $80043001;
//  wbemFlagForwardOnly = $00000020;
begin
  Success := CoInitialize(nil); //CoInitializeEx(nil, COINIT_MULTITHREADED);
  try
    FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
    FWMIService   := FSWbemLocator.ConnectServer(FServer, FNameSpace, FUser, FPassword);
    //FEventSource  := FWMIService.ExecNotificationQuery(FWQL,WideString('WQL'), wbemFlagForwardOnly, null);
    FEventSource  := FWMIService.ExecNotificationQuery(FWQL);
    while not Terminated do
    begin
      try
       FWbemObject := FEventSource.NextEvent(TimeoutMs); //set the max time to wait (ms)
      except
       on E:EOleException do
       if EOleException(E).ErrorCode=HRESULT(wbemErrTimedout) then //Check for the timeout exception   and ignore if exist
        FWbemObject:=Null
       else
       raise;
      end;

      if FindVarData(FWbemObject)^.VType <> varNull then
        Synchronize(RunCallBack);

      FWbemObject:=Unassigned;
    end;
  finally
    case Success of
      S_OK, S_FALSE: CoUninitialize;
    end;
  end;
end;

procedure TWmiSyncEventThread.RunCallBack;
begin
  FCallBack(FWbemObject);
end;

end.

And to use from your own code only you must declare a call back function to receive the result of the event.

  TForm1 = class(TForm)
  private
    WmiThread   : TWmiSyncEventThread;
    procedure  Log(const AObject: OleVariant);
  public
  end;

To begin to receive the event

    WmiThread:=TWmiSyncEventThread.Create(
      Log,
      '.',
      '',
      '',
      'root\CIMV2',
      'Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA "Win32_Process"',
      100);

and the Log function

procedure TForm1.Log(const AObject: OleVariant);
begin
 //do your stuff here
 Memo1.Lines.Add(AObject.TargetInstance.Caption);
end;

finally to stop and free the resources you must call WmiThread.Terminate;

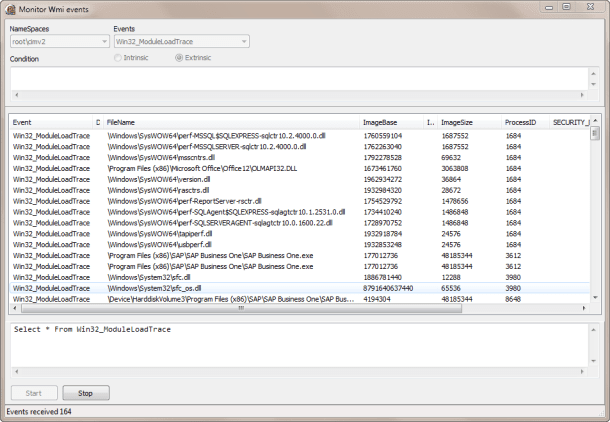

If you wanna play more with this thread check this sample application with source code included.

asynchronous

In order to use the SWbemServices.ExecNotificationQueryAsync  method you must follow these steps

1. Create an instance to the WMI service
2. Create an instance to the WMI sink
3. Assign the event handler for the sink
4. Connect to the WMI service
5. Execute the event in async mode
6. Receive and process the event using the event handler

Note : the next samples uses the WbemScripting_TLB  unit to access the wmi.

Using the WbemScripting_TLB unit (wrapper generated by dephi) for  execute the  ExecNotificationQueryAsync  method is the more affordable way.

Check this short snippet to initializate the WMI service and start to wait for the event in asynchronous mode.

type
TFrmMain = class(TForm)
private
FSink     : TSWbemSink;
FLocator  : ISWbemLocator;
FServices : ISWbemServices;
public
procedure EventReceived(ASender: TObject; const objWbemObject: ISWbemObject; const objWbemAsyncContext: ISWbemNamedValueSet);
end;

procedure TFrmMain.ButtonRunClick(Sender: TObject);
const
 WQL = 'SELECT * FROM __InstanceCreationEvent WITHIN 1 WHERE TargetInstance ISA "Win32_Process"';
begin
  FLocator  := CoSWbemLocator.Create;
  //Connect to the WMI service
  FServices := FLocator.ConnectServer('.', 'root\cimv2', '','', '', '', wbemConnectFlagUseMaxWait, nil);
  //create the sink instance
  FSink     := TSWbemSink.Create(self);
  //assign the event handler
  FSink.OnObjectReady := EventReceived;
  //Run the ExecNotificationQueryAsync
  FServices.ExecNotificationQueryAsync(FSink.DefaultInterface,WQL,'WQL', 0, nil, nil);
end;

//The event handler
procedure TFrmMain.EventReceived(ASender: TObject; const objWbemObject: ISWbemObject;  const objWbemAsyncContext: ISWbemNamedValueSet);
var
  PropVal: OLEVariant;
begin
  PropVal := objWbemObject;
  Memo1.Lines.Add(Format('Caption   : %s ',[PropVal.TargetInstance.Caption]));
  Memo1.Lines.Add(Format('ProcessID : %s ',[PropVal.TargetInstance.ProcessID]));
end;

the same rules applied for the above code about access the properties of the TargetInstance when you uses Intrinsic events. download the sample application with source code from here.

Check this list of samples querys to do specific tasks

Determine when a Removable Drive Gets Connected

using the intrinsic event __InstanceCreationEvent and the Win32_LogicalDisk class located in the root\cimv2 namespace

Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA 'Win32_LogicalDisk' AND TargetInstance.DriveType=2

using the intrinsic event __InstanceCreationEvent and the Win32_Volume class located in the root\cimv2 namespace

Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA 'Win32_Volume' AND TargetInstance.DriveType=2

Determine when a Removable Drive Gets Disconnected

using the intrinsic event __InstanceDeletionEvent and the Win32_LogicalDisk class located in the root\cimv2 namespace

Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA 'Win32_LogicalDisk' AND TargetInstance.DriveType=2

using the intrinsic event __InstanceDeletionEvent and the Win32_Volume class located in the root\cimv2 namespace

Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA 'Win32_Volume' AND TargetInstance.DriveType=2

Detect when a Process start

using the intrinsic event __InstanceCreationEvent and the Win32_Process class located in the root\cimv2 namespace

Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA 'Win32_Process'

using the extrinsic event Win32_ProcessStartTrace located in the root\cimv2 namespace

Select * From Win32_ProcessStartTrace

Detect when a Process is finished

using the intrinsic event __InstanceDeletionEvent and the Win32_Process class located in the root\cimv2 namespace

Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA 'Win32_Process'

using the extrinsic event Win32_ProcessStopTrace located in the root\cimv2 namespace

Select * From Win32_ProcessStopTrace

Detect when a Thread start

using the intrinsic event __InstanceCreationEvent and the Win32_Thread class located in the root\cimv2 namespace

Select * From __InstanceCreationEvent Within 1 Where TargetInstance ISA 'Win32_Thread'

using the extrinsic event Win32_ThreadStartTrace located in the root\cimv2 namespace

Select * From Win32_ThreadStartTrace

Detect when a Thread is finished

using the intrinsic event __InstanceDeletionEvent and the Win32_Thread class located in the root\cimv2 namespace

Select * From __InstanceDeletionEvent Within 1 Where TargetInstance ISA 'Win32_Thread'

using the extrinsic event Win32_ThreadStopTrace located in the root\cimv2 namespace

Select * From Win32_ThreadStopTrace

Detect when a network connection has been lost

using the extrinsic event MSNdis_StatusMediaDisconnect located in the root\wmi namespace

Select * From MSNdis_StatusMediaDisconnect

Detect when a Dll is loaded for an application

using the extrinsic event Win32_ModuleLoadTrace located in the root\cimv2 namespace

Select * From Win32_ModuleLoadTrace

If you want learn more about the WMI events try these articles.

• MSDN : Receiving a WMI Event
• MSDN : Receiving Asynchronous Event Notifications
• MSDN : Receiving Synchronous and Semisynchronous Event Notifications

Today i will show a short snippet to change the letter from a drive (Volume) using the WMI. the key is use the Win32_Volume class and set the value of the DriveLetter property. this property is read/write so we can update directly the value and then call the Put_ method of the SWbemObject object.

Check out this sample project

{$APPTYPE CONSOLE}

uses
  SysUtils,
  ActiveX,
  ComObj;

procedure  ChangeDriveLetter(OldDrive,NewDrive:Char);
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
begin;
  FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');
  FWMIService   := FSWbemLocator.ConnectServer('localhost', 'root\CIMV2', '', '');
  FWbemObjectSet:= FWMIService.ExecQuery(Format('SELECT * FROM Win32_Volume Where DriveLetter=%s',[QuotedStr(OldDrive+':')]),'WQL',0);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  if oEnum.Next(1, FWbemObject, iValue) = 0 then
  begin
    //Assign the New letter
    FWbemObject.DriveLetter:=NewDrive+':';
    //Apply the changes
    FWbemObject.Put_();
  end;
end;

begin
 try
    CoInitialize(nil);
    try
      //This will change the letter of the drive E to Z
      ChangeDriveLetter('E','Z');
      Readln;
    finally
      CoUninitialize;
    end;
 except
    on E:Exception do
    begin
        Writeln(E.Classname, ':', E.Message);
        Readln;
    end;
  end;
end.

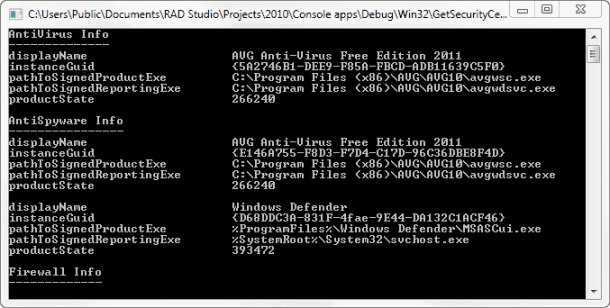

The WMI allow you to get the installed Antivirus, AntiSpyware and Firewall (third party)  software using the root\SecurityCenter or the root\SecurityCenter2 namespaces and the AntiVirusProduct , AntiSpywareProduct, FirewallProduct classes.

First you must know which these classes and namespaces are not documented by Microsoft and only are supported in Windows Desktops editions (Windows XP, Windows Vista and Windows 7).
Now depending of the Windows version the properties retrieved by the the same class can change. this is a summary of the classes and properties availables depending of the windows version

Windows XP

Namespace : SecurityCenter
Classes availables: AntiVirusProduct, FirewallProduct

AntiVirusProduct-Properties

• companyName
• displayName
• enableOnAccessUIMd5Hash
• enableOnAccessUIParameters
• instanceGuid
• onAccessScanningEnabled
• pathToEnableOnAccessUI
• pathToUpdateUI
• productUptoDate
• updateUIMd5Hash
• updateUIParameters
• versionNumber

FirewallProduct-Properties

• companyName
• displayName
• enabled
• enableUIMd5Hash
• enableUIParameters
• instanceGuid
• pathToEnableUI
• versionNumber

Windows Vista and Windows 7

Namespace : SecurityCenter2
Classes availables : AntiVirusProduct, AntiSpywareProduct, FirewallProduct

AntiVirusProduct, AntiSpywareProduct, FirewallProduct – Properties

• displayName
• instanceGuid
• pathToSignedProductExe
• pathToSignedReportingExe
• productState

This is a sample project which determine the Antivirus, AntiSpyware and Firewall software installed in the system.

program GetSecurityCenterInfo;

{$APPTYPE CONSOLE}

uses
  SysUtils,
  Windows,
  ActiveX,
  ComObj,
  Variants;

type
  TSecurityCenterProduct = (AntiVirusProduct,AntiSpywareProduct,FirewallProduct);
const
  WmiRoot='root';
  WmiClassSCProduct     : array [TSecurityCenterProduct] of string = ('AntiVirusProduct','AntiSpywareProduct','FirewallProduct');
  WmiNamespaceSCProduct : array [Boolean] of string = ('SecurityCenter','SecurityCenter2');

function VerSetConditionMask(dwlConditionMask: int64;dwTypeBitMask: DWORD; dwConditionMask: Byte): int64; stdcall; external kernel32;

{$IFDEF UNICODE}
function VerifyVersionInfo(var LPOSVERSIONINFOEX : OSVERSIONINFOEX;dwTypeMask: DWORD;dwlConditionMask: int64): BOOL; stdcall; external kernel32 name 'VerifyVersionInfoW';
{$ELSE}
function VerifyVersionInfo(var LPOSVERSIONINFOEX : OSVERSIONINFOEX;dwTypeMask: DWORD;dwlConditionMask: int64): BOOL; stdcall; external kernel32 name 'VerifyVersionInfoA';
{$ENDIF}

//verifies that the application is running on Windows 2000 Server or a later server, such as Windows Server 2003 or Windows Server 2008.
function Is_Win_Server : Boolean;
const
   VER_NT_SERVER      = $0000003;
   VER_EQUAL          = 1;
   VER_GREATER_EQUAL  = 3;
var
   osvi             : OSVERSIONINFOEX;
   dwlConditionMask : DWORDLONG;
   op               : Integer;
begin
   dwlConditionMask := 0;
   op:=VER_GREATER_EQUAL;

   ZeroMemory(@osvi, sizeof(OSVERSIONINFOEX));
   osvi.dwOSVersionInfoSize := sizeof(OSVERSIONINFOEX);
   osvi.dwMajorVersion := 5;
   osvi.dwMinorVersion := 0;
   osvi.wServicePackMajor := 0;
   osvi.wServicePackMinor := 0;
   osvi.wProductType := VER_NT_SERVER;

   dwlConditionMask:=VerSetConditionMask( dwlConditionMask, VER_MAJORVERSION, op );
   dwlConditionMask:=VerSetConditionMask( dwlConditionMask, VER_MINORVERSION, op );
   dwlConditionMask:=VerSetConditionMask( dwlConditionMask, VER_SERVICEPACKMAJOR, op );
   dwlConditionMask:=VerSetConditionMask( dwlConditionMask, VER_SERVICEPACKMINOR, op );
   dwlConditionMask:=VerSetConditionMask( dwlConditionMask, VER_PRODUCT_TYPE, VER_EQUAL );

   Result:=VerifyVersionInfo(osvi,VER_MAJORVERSION OR VER_MINORVERSION OR
      VER_SERVICEPACKMAJOR OR VER_SERVICEPACKMINOR OR VER_PRODUCT_TYPE, dwlConditionMask);
end;

procedure  GetSCProductInfo(SCProduct:TSecurityCenterProduct);
var
  FSWbemLocator : OLEVariant;
  FWMIService   : OLEVariant;
  FWbemObjectSet: OLEVariant;
  FWbemObject   : OLEVariant;
  oEnum         : IEnumvariant;
  iValue        : LongWord;
  osVerInfo     : TOSVersionInfo;
begin
  osVerInfo.dwOSVersionInfoSize:=SizeOf(TOSVersionInfo);
  GetVersionEx(osVerInfo);
  if (SCProduct=AntiSpywareProduct) and (osVerInfo.dwMajorVersion<6)  then exit;   FSWbemLocator := CreateOleObject('WbemScripting.SWbemLocator');   FWMIService   := FSWbemLocator.ConnectServer('localhost',Format('%s\%s',[WmiRoot,WmiNamespaceSCProduct[osVerInfo.dwMajorVersion>=6]]), '', '');
  FWbemObjectSet:= FWMIService.ExecQuery(Format('SELECT * FROM %s',[WmiClassSCProduct[SCProduct]]),'WQL',0);
  oEnum         := IUnknown(FWbemObjectSet._NewEnum) as IEnumVariant;
  while oEnum.Next(1, FWbemObject, iValue) = 0 do
  begin
    if osVerInfo.dwMajorVersion>=6 then  //windows vista or newer
    begin
      Writeln(Format('displayName                    %s',[FWbemObject.displayName]));// String
      Writeln(Format('instanceGuid                   %s',[FWbemObject.instanceGuid]));// String
      Writeln(Format('pathToSignedProductExe         %s',[FWbemObject.pathToSignedProductExe]));// String
      Writeln(Format('pathToSignedReportingExe       %s',[FWbemObject.pathToSignedReportingExe]));// String
      Writeln(Format('productState                   %s',[FWbemObject.productState]));// Uint32
    end
    else
    begin
     case SCProduct of

        AntiVirusProduct :
         begin
            Writeln(Format('companyName                    %s',[FWbemObject.companyName]));// String
            Writeln(Format('displayName                    %s',[FWbemObject.displayName]));// String
            Writeln(Format('enableOnAccessUIMd5Hash        %s',[FWbemObject.enableOnAccessUIMd5Hash]));// Uint8
            Writeln(Format('enableOnAccessUIParameters     %s',[FWbemObject.enableOnAccessUIParameters]));// String
            Writeln(Format('instanceGuid                   %s',[FWbemObject.instanceGuid]));// String
            Writeln(Format('onAccessScanningEnabled        %s',[FWbemObject.onAccessScanningEnabled]));// Boolean
            Writeln(Format('pathToEnableOnAccessUI         %s',[FWbemObject.pathToEnableOnAccessUI]));// String
            Writeln(Format('pathToUpdateUI                 %s',[FWbemObject.pathToUpdateUI]));// String
            Writeln(Format('productUptoDate                %s',[FWbemObject.productUptoDate]));// Boolean
            Writeln(Format('updateUIMd5Hash                %s',[FWbemObject.updateUIMd5Hash]));// Uint8
            Writeln(Format('updateUIParameters             %s',[FWbemObject.updateUIParameters]));// String
            Writeln(Format('versionNumber                  %s',[FWbemObject.versionNumber]));// String
         end;

       FirewallProduct  :
         begin
            Writeln(Format('companyName                    %s',[FWbemObject.companyName]));// String
            Writeln(Format('displayName                    %s',[FWbemObject.displayName]));// String
            Writeln(Format('enabled                        %s',[FWbemObject.enabled]));// Boolean
            Writeln(Format('enableUIMd5Hash                %s',[FWbemObject.enableUIMd5Hash]));// Uint8
            Writeln(Format('enableUIParameters             %s',[FWbemObject.enableUIParameters]));// String
            Writeln(Format('instanceGuid                   %s',[FWbemObject.instanceGuid]));// String
            Writeln(Format('pathToEnableUI                 %s',[FWbemObject.pathToEnableUI]));// String
            Writeln(Format('versionNumber                  %s',[FWbemObject.versionNumber]));// String
         end;
     end;
    end;
    Writeln('');
    FWbemObject:=Unassigned;
  end;
end;

begin
 try
    if Is_Win_Server then
    begin
     Writeln('Sorry this app only can run in desktop operating systems.');
     Halt;
    end;

    CoInitialize(nil);
    try
      Writeln('AntiVirus Info');
      Writeln('--------------');
      GetSCProductInfo(AntiVirusProduct);
      Writeln('AntiSpyware Info');
      Writeln('----------------');
      GetSCProductInfo(AntiSpywareProduct);
      Writeln('Firewall Info');
      Writeln('-------------');
      GetSCProductInfo(FirewallProduct);
      Readln;
    finally
      CoUninitialize;
    end;
 except
    on E:Exception do
    begin
        Writeln(E.Classname, ':', E.Message);
        Readln;
    end;
  end;
end.

And here is the result of the app.
