A result of the work in a new sub project of the VCL Styles Utils , many new features as been added to the library, One of my favorites is a patch for the GetSysColor WinApi function. This fix replace the original call to this function by a jump to the StyleServices.GetSystemColor method replacing the original system colors by the current VCL Style colors. One of the advantages of use this fix is which the controls uses the proper VCL Style highlight color.

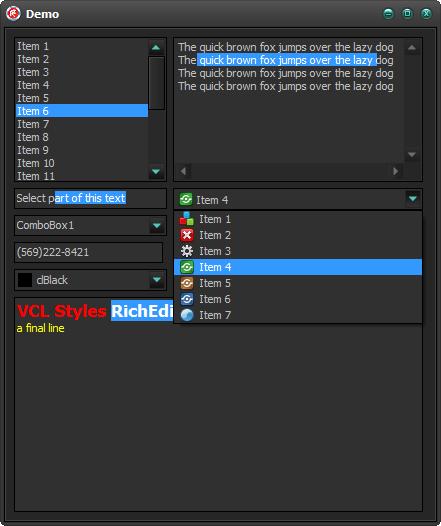

Check these controls with the VCL Styles

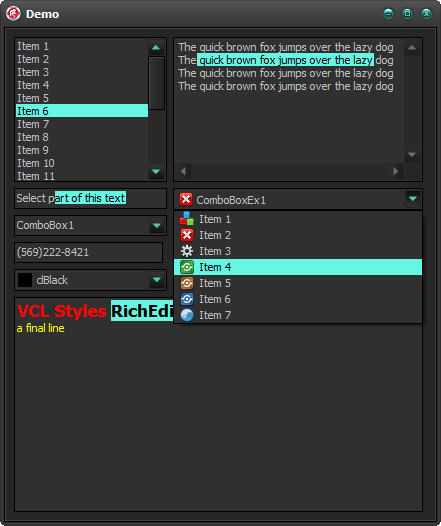

Now using the Vcl.Styles.Hooks unit
This is the actual source code of the Vcl.Styles.Hooks unit which includes the patch to the GetSysColor function. To use this unit in your code you must add the KOLDetours unit too.
unit Vcl.Styles.Hooks; interface implementation uses KOLDetours, WinApi.Windows, Vcl.Styles, Vcl.Themes; var TrampolineGetSysColor: function (nIndex: Integer): DWORD; stdcall; GetSysColorOrgPointer : Pointer = nil; function InterceptGetSysColor(nIndex: Integer): DWORD; stdcall; begin if StyleServices.IsSystemStyle then Result:= TrampolineGetSysColor(nIndex) else Result:= StyleServices.GetSystemColor(nIndex or Integer($FF000000)); end; initialization if StyleServices.Available then begin GetSysColorOrgPointer := GetProcAddress(GetModuleHandle('user32.dll'), 'GetSysColor'); @TrampolineGetSysColor := InterceptCreate(GetSysColorOrgPointer, @InterceptGetSysColor); end; finalization if GetSysColorOrgPointer<>nil then InterceptRemove(@TrampolineGetSysColor, @InterceptGetSysColor); end.
December 7, 2013 at 6:36 pm
Rodrigo, this is awesome. Great work. Thank you.
December 8, 2013 at 12:39 am
Second that. Big thanks for your work Rodrigo
December 8, 2013 at 12:46 am
December 8, 2013 at 11:22 am
We had a problem with “VCL Styles with Forms using BorderWidth causes wrong Layout” which stopped us using styles
Do you see a chance to fix that as well?
December 8, 2013 at 11:43 am
You’re welcome. About your request. It seems which a workaround was already posted in the same issue report.
December 9, 2013 at 4:42 am
Yes. You are right. But I have not tested as all this things are really time consuming (what are the side effects introduced by such changes …). Actually your work should flow directly into the EMBT XE(n) updates. Were you never contacted by EMBT?
Pingback: VCL Styles Utils Project – New Addition :...
December 17, 2013 at 12:41 pm
Rodrigo, thank you for your work!
Have you tried Vcl.Styles.Hooks and KOLDetours with a 64-Bit debug build?
I get lot of access violations (for example “First chance exception at $00007FFD007D5810. Exception class $C0000005 with message ‘c0000005 ACCESS_VIOLATION’. Process ThemedSysControls.exe (11312)”) in uxtheme.dll after Vcl.Forms.TApplication.SetMainFormOnTaskBar(True).
I think the problem is in the KOLDetours unit.
Is it possible to get a Vcl.Styles.Hooks that does not need KOLDetours?
December 17, 2013 at 11:46 pm
I just fixed the issue related to 64 bits. download the last version of the code from the repository.
December 18, 2013 at 5:27 am
Rodrigo, thank you for your quick response and bugfix.
Unfortunately the error still occours in subversion revision 123.
Have you tested the bugfix?
Add Vcl.Styles.Hooks and KOLDetours to a project file, for example ThemedSysControls-Demo, and change the Target Platform to Win64 and let it run.
There are also access violation in your own TDictionary implementation when USEGENERICS is undefined.
December 18, 2013 at 11:18 am
Thanks again for your feedback, I disable temporally the 64 bits support for the Vcl.Styles.Hooks library. I will work to extended the full 64 bits support in the KOLDetours unit or even better write a new detours library.
December 17, 2013 at 3:19 pm
Delphi XE4 64 bit target. Application crashes on Application.MainFormOnTaskbar := True; line in main project when Vcl.Styles.Hooks unit is linked to main executable. 32 bit target is ok. “c000006 Access violation” Any chanse you can fix that?
Thanks for wonderful work anyways
December 17, 2013 at 4:58 pm
I just fixed the issue related to 64 bits. download the last version of the code from the repository,
January 7, 2014 at 4:17 am
Thank you for your job. It is really helpful.
But I have some problem when I return to Windows style. For some reason I get Stackoverflow exception. After some debugging I found that the problem comes from attached Vcl.Styles.Hooks under InterceptDrawThemeBackground function.
StyleServices.DrawElement enter to infinite recursion.
Can you check it please?
January 7, 2014 at 11:27 pm
Thanks for the feedback, please report this using the issue page of the project. http://code.google.com/p/vcl-styles-utils/issues/list
January 16, 2014 at 4:29 pm
Hi Rodrigo, thanks again for your work.
Is there a way to disable this fix for the Vcl.HTMLHelpViewer?
The window is not completely styled so i was looking for a way to disable the styles just for that.
Or any workaround to have a consistent help window?
