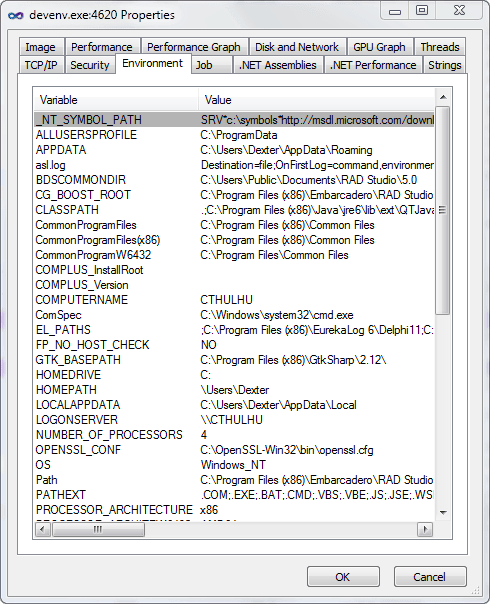

In this post I will show you how you can get the list of the environment variables of an external x86 process just like is done by tools like Process explorer or Process hacker.
To locate the Environment Variables of a process you must access the PEB (Process Enviroment Block) of the application and follow this secuence to resolve the address of this buffer.
PEB -> ProcessParameters(RTL_USER_PROCESS_PARAMETERS) -> Environment (Pointer)
This is the definition of the PEB structure
typedef struct _PEB {
BYTE Reserved1[2];
BYTE BeingDebugged;
BYTE Reserved2[1];
PVOID Reserved3[2];
PPEB_LDR_DATA Ldr;
PRTL_USER_PROCESS_PARAMETERS ProcessParameters;
BYTE Reserved4[104];
PVOID Reserved5[52];
PPS_POST_PROCESS_INIT_ROUTINE PostProcessInitRoutine;
BYTE Reserved6[128];
PVOID Reserved7[1];
ULONG SessionId;
} PEB, *PPEB;
And this is the definition of the RTL_USER_PROCESS_PARAMETERS.
typedef struct _RTL_USER_PROCESS_PARAMETERS
{
ULONG MaximumLength;
ULONG Length;
ULONG Flags;
ULONG DebugFlags;
PVOID ConsoleHandle;
ULONG ConsoleFlags;
PVOID StandardInput;
PVOID StandardOutput;
PVOID StandardError;
CURDIR CurrentDirectory;
UNICODE_STRING DllPath;
UNICODE_STRING ImagePathName;
UNICODE_STRING CommandLine;
PVOID Environment;
ULONG StartingX;
ULONG StartingY;
ULONG CountX;
ULONG CountY;
ULONG CountCharsX;
ULONG CountCharsY;
ULONG FillAttribute;
ULONG WindowFlags;
ULONG ShowWindowFlags;
UNICODE_STRING WindowTitle;
UNICODE_STRING DesktopInfo;
UNICODE_STRING ShellInfo;
UNICODE_STRING RuntimeData;
RTL_DRIVE_LETTER_CURDIR CurrentDirectores[32];
} RTL_USER_PROCESS_PARAMETERS, *PRTL_USER_PROCESS_PARAMETERS;
NtQueryInformationProcess and VirtualQueryEx
After of translate the above structures to delphi records, we need to get a pointer to the PEB of the process, this task must be done with the NtQueryInformationProcess function, passing the ProcessBasicInformation value in the ProcessInformationClass parameter, this will return a PROCESS_BASIC_INFORMATION structure having the following layout:
typedef struct _PROCESS_BASIC_INFORMATION {
PVOID Reserved1;
PPEB PebBaseAddress;
PVOID Reserved2[2];
ULONG_PTR UniqueProcessId;
PVOID Reserved3;
} PROCESS_BASIC_INFORMATION;
Now using the ReadProcessMemory method you can read the PEB and the ProcessParameters (RTL_USER_PROCESS_PARAMETERS) of the application, to finally get the Pointer to the environment variables.
// get the PROCESS_BASIC_INFORMATION to access to the PEB Address
if (NtQueryInformationProcess(ProcessHandle,0{=>ProcessBasicInformation},@ProcessBasicInfo, SizeOf(ProcessBasicInfo), @ReturnLength)=STATUS_SUCCESS) and (ReturnLength=SizeOf(ProcessBasicInfo)) then
begin
//read the PEB struture
if not ReadProcessMemory(ProcessHandle, ProcessBasicInfo.PEBBaseAddress, @Peb, sizeof(Peb), lpNumberOfBytesRead) then
RaiseLastOSError
else
begin
//read the RTL_USER_PROCESS_PARAMETERS structure
if not ReadProcessMemory(ProcessHandle, Peb.ProcessParameters, @Rtl, SizeOf(Rtl), lpNumberOfBytesRead) then
RaiseLastOSError
After of that we need calculate the size of the Env. variables buffer to read. This can be done using the VirtualQueryEx function which retieve the range of memory pages of the queried memory block and then using the ReadProcessMemory function again you can get the environment variables into a buffer.
Try this sample
//get the size of the Env. variables block
if VirtualQueryEx(ProcessHandle, Rtl.Environment, Mbi, SizeOf(Mbi))=0 then
RaiseLastOSError
else
EnvStrLength :=(mbi.RegionSize -(ULONG_PTR(Rtl.Environment) - ULONG_PTR(mbi.BaseAddress)));
SetLength(EnvStrBlock, EnvStrLength);
//read the content of the env. variables block
if not ReadProcessMemory(ProcessHandle, Rtl.Environment, @EnvStrBlock[0], EnvStrLength, lpNumberOfBytesRead) then
RaiseLastOSError
else
{$IFDEF UNICODE}
Result:=TEncoding.Unicode.GetString(EnvStrBlock);
{$ELSE}
SetString(WS, PWideChar(@EnvStrBlock[0]), Length(EnvStrBlock) div 2);
Result:=WS;
{$ENDIF}
The source code
Finally this is the full source code to read the environment variables of an external x86 process, the code was tested from Delphi 2007 to XE2 under WinXP and Windows 7.
program NtQueryInformationProcess_EnvVars;
//Author Rodrigo Ruz (RRUZ)
//2012-05-26
{$APPTYPE CONSOLE}
{$IFDEF CPUX64} Sorry only 32 bits support{$ENDIF}
{$R *.res}
uses
Classes,
SysUtils,
Windows;
type
_UNICODE_STRING = record
Length: Word;
MaximumLength: Word;
Buffer: LPWSTR;
end;
UNICODE_STRING = _UNICODE_STRING;
//http://msdn.microsoft.com/en-us/library/windows/desktop/ms684280%28v=vs.85%29.aspx
PROCESS_BASIC_INFORMATION = record
Reserved1 : Pointer;
PebBaseAddress: Pointer;
Reserved2: array [0..1] of Pointer;
UniqueProcessId: ULONG_PTR;
Reserved3: Pointer;
end;
//http://undocumented.ntinternals.net/UserMode/Structures/RTL_DRIVE_LETTER_CURDIR.html
_RTL_DRIVE_LETTER_CURDIR = record
Flags: Word;
Length: Word;
TimeStamp: ULONG;
DosPath: UNICODE_STRING;
end;
RTL_DRIVE_LETTER_CURDIR = _RTL_DRIVE_LETTER_CURDIR;
_CURDIR = record
DosPath: UNICODE_STRING;
Handle: THANDLE;
end;
CURDIR = _CURDIR;
//http://undocumented.ntinternals.net/UserMode/Structures/RTL_USER_PROCESS_PARAMETERS.html
_RTL_USER_PROCESS_PARAMETERS = record
MaximumLength: ULONG;
Length: ULONG;
Flags: ULONG;
DebugFlags: ULONG;
ConsoleHandle: THANDLE;
ConsoleFlags: ULONG;
StandardInput: THANDLE;
StandardOutput: THANDLE;
StandardError: THANDLE;
CurrentDirectory: CURDIR;
DllPath: UNICODE_STRING;
ImagePathName: UNICODE_STRING;
CommandLine: UNICODE_STRING;
Environment: Pointer;
StartingX: ULONG;
StartingY: ULONG;
CountX: ULONG;
CountY: ULONG;
CountCharsX: ULONG;
CountCharsY: ULONG;
FillAttribute: ULONG;
WindowFlags: ULONG;
ShowWindowFlags: ULONG;
WindowTitle: UNICODE_STRING;
DesktopInfo: UNICODE_STRING;
ShellInfo: UNICODE_STRING;
RuntimeData: UNICODE_STRING;
CurrentDirectories: array[0..31] of RTL_DRIVE_LETTER_CURDIR;
end;
RTL_USER_PROCESS_PARAMETERS = _RTL_USER_PROCESS_PARAMETERS;
PRTL_USER_PROCESS_PARAMETERS = ^RTL_USER_PROCESS_PARAMETERS;
_PEB = record
Reserved1 : array [0..1] of Byte;
BeingDebugged : Byte;
Reserved2 : Byte;
Reserved3 : array [0..1] of Pointer;
Ldr : Pointer;
ProcessParameters : PRTL_USER_PROCESS_PARAMETERS;
Reserved4 : array [0..102] of Byte;
Reserved5 : array [0..51] of Pointer;
PostProcessInitRoutine : Pointer;
Reserved6 : array [0..127] of byte;
Reserved7 : Pointer;
SessionId : ULONG;
end;
PEB=_PEB;
function NtQueryInformationProcess(ProcessHandle : THandle; ProcessInformationClass : DWORD; ProcessInformation : Pointer; ProcessInformationLength : ULONG; ReturnLength : PULONG ): LongInt; stdcall; external 'ntdll.dll';
type
TIsWow64Process = function(Handle:THandle; var IsWow64 : BOOL) : BOOL; stdcall;
var
_IsWow64Process : TIsWow64Process;
procedure Init_IsWow64Process;
var
hKernel32 : Integer;
begin
hKernel32 := LoadLibrary(kernel32);
if (hKernel32 = 0) then RaiseLastOSError;
try
_IsWow64Process := GetProcAddress(hkernel32, 'IsWow64Process');
finally
FreeLibrary(hKernel32);
end;
end;
function ProcessIsX64(hProcess: DWORD): Boolean;
var
IsWow64 : BOOL;
PidHandle : THandle;
begin
Result := False;
if not Assigned(_IsWow64Process) then
Init_IsWow64Process;
if Assigned(_IsWow64Process) then
begin
//check if the current app is running under WOW
if _IsWow64Process(GetCurrentProcess(), IsWow64) then
Result := IsWow64
else
RaiseLastOSError;
{$IFNDEF CPUX64}
//the current delphi App is not running under wow64, so the current Window OS is 32 bit
//and obviously all the apps are 32 bits.
if not Result then Exit;
{$ENDIF}
if (_IsWow64Process(hProcess, IsWow64)) then
Result := not IsWow64
else
RaiseLastOSError;
end;
end;
function GetEnvVarsPid(dwProcessId : DWORD): string;
const
STATUS_SUCCESS = $00000000;
SE_DEBUG_NAME = 'SeDebugPrivilege';
OffsetProcessParametersx32 = $10;
var
ProcessHandle : THandle;
ProcessBasicInfo : PROCESS_BASIC_INFORMATION;
ReturnLength : DWORD;
lpNumberOfBytesRead : ULONG_PTR;
TokenHandle : THandle;
lpLuid : TOKEN_PRIVILEGES;
OldlpLuid : TOKEN_PRIVILEGES;
Rtl : RTL_USER_PROCESS_PARAMETERS;
Mbi : TMemoryBasicInformation;
Peb : _PEB;
EnvStrBlock : TBytes;
EnvStrLength : ULONG;
{$IFNDEF UNICODE}
WS : WideString;
{$ENDIF}
begin
Result:='';
if OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES or TOKEN_QUERY, TokenHandle) then
begin
try
if not LookupPrivilegeValue(nil, SE_DEBUG_NAME, lpLuid.Privileges[0].Luid) then
RaiseLastOSError
else
begin
lpLuid.PrivilegeCount := 1;
lpLuid.Privileges[0].Attributes := SE_PRIVILEGE_ENABLED;
ReturnLength := 0;
OldlpLuid := lpLuid;
//Set the SeDebugPrivilege privilege
if not AdjustTokenPrivileges(TokenHandle, False, lpLuid, SizeOf(OldlpLuid), OldlpLuid, ReturnLength) then RaiseLastOSError;
end;
ProcessHandle := OpenProcess(PROCESS_QUERY_INFORMATION or PROCESS_VM_READ, false, dwProcessId);
if ProcessHandle=0 then RaiseLastOSError
else
try
if ProcessIsX64(ProcessHandle) then
raise Exception.Create('Only 32 bits processes are supported');
// get the PROCESS_BASIC_INFORMATION to access to the PEB Address
if (NtQueryInformationProcess(ProcessHandle,0{=>ProcessBasicInformation},@ProcessBasicInfo, SizeOf(ProcessBasicInfo), @ReturnLength)=STATUS_SUCCESS) and (ReturnLength=SizeOf(ProcessBasicInfo)) then
begin
//read the PEB struture
if not ReadProcessMemory(ProcessHandle, ProcessBasicInfo.PEBBaseAddress, @Peb, sizeof(Peb), lpNumberOfBytesRead) then
RaiseLastOSError
else
begin
//read the RTL_USER_PROCESS_PARAMETERS structure
if not ReadProcessMemory(ProcessHandle, Peb.ProcessParameters, @Rtl, SizeOf(Rtl), lpNumberOfBytesRead) then
RaiseLastOSError
else
begin
//get the size of the Env. variables block
if VirtualQueryEx(ProcessHandle, Rtl.Environment, Mbi, SizeOf(Mbi))=0 then
RaiseLastOSError
else
EnvStrLength :=(mbi.RegionSize -(ULONG_PTR(Rtl.Environment) - ULONG_PTR(mbi.BaseAddress)));
SetLength(EnvStrBlock, EnvStrLength);
//read the content of the env. variables block
if not ReadProcessMemory(ProcessHandle, Rtl.Environment, @EnvStrBlock[0], EnvStrLength, lpNumberOfBytesRead) then
RaiseLastOSError
else
{$IFDEF UNICODE}
Result:=TEncoding.Unicode.GetString(EnvStrBlock);
{$ELSE}
{
SetLength(Result, Length(EnvStrBlock) div 2);
WideCharToMultiByte( CP_ACP , 0, PWideChar(@EnvStrBlock[0]), -1, @Result[1], Rtl.EnvironmentSize, nil, nil );
}
SetString(WS, PWideChar(@EnvStrBlock[0]), Length(EnvStrBlock) div 2);
Result:=WS;
{$ENDIF}
end;
end;
end
else
RaiseLastOSError;
finally
CloseHandle(ProcessHandle);
end;
finally
CloseHandle(TokenHandle);
end;
end
else
RaiseLastOSError;
end;
function GetEnvVarsPidList(dwProcessId : DWORD): TStringList;
var
PEnvVars: PChar;
PEnvEntry: PChar;
begin
Result:=TStringList.Create;
PEnvVars := PChar(GetEnvVarsPid(dwProcessId));
PEnvEntry := PEnvVars;
while PEnvEntry^ <> #0 do
begin
Result.Add(PEnvEntry);
Inc(PEnvEntry, StrLen(PEnvEntry) + 1);
end;
end;
Var
EnvVars : TStringList;
begin
ReportMemoryLeaksOnShutdown:=True;
try
EnvVars:=GetEnvVarsPidList(4724);
try
Writeln(EnvVars.Text);
finally
EnvVars.Free;
end;
except
on E:Exception do
Writeln(E.Classname, ':', E.Message);
end;
Readln;
end.
Recommended resources
- Reading another process’s environment – Matt Pietrek
- MSDN NtQueryInformationProcess function
- Undocumented functions of NTDLL – RTL_USER_PROCESS_PARAMETERS
- Undocumented functions of NTDLL – NtQueryVirtualMemory
