The TStyleHook Class
The VCL Styles uses the TStyleHook class to intercept the paint methods and the Windows messages related to the Vcl Styles operations, If you have a custom control or need change the way how a control like a TEdit, TMemo, TListView, etc. is painted you must create a new Style hook class inheriting from TStyleHook or using a existing like TEditStyleHook, TComboBoxStyleHook, TMemoStyleHook ans so on . After of creating your own hook you need to register your new style hook class using the RegisterStyleHook method. Also you can unregister a register style hook using the UnRegisterStyleHook procedure.
Check these samples of using custom TStyleHook classes
- Fixing a VCL Style bug in the TPageControl and TTabControl components
- How to make a transparent form when a VCL Style is enabled?
- Fix for TRibbon and VCL styles
A Real World Sample

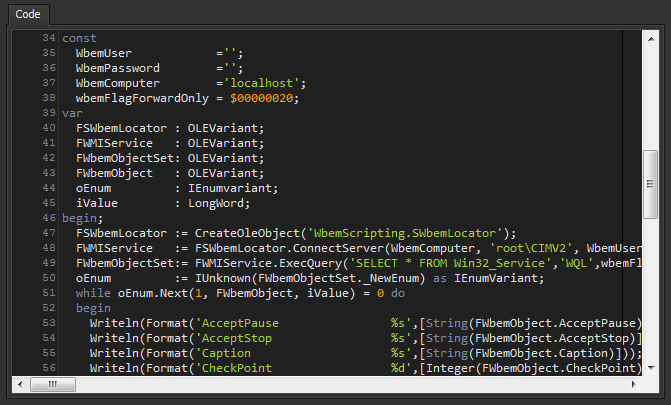

All the above links are about fixing bugs related to the VCL Styles. but that is not all what you can do do with the TStyleHook classes, for example check this image of a TSynEdit component inside of an VCL application with has the Carbon Vcl Style applied.
As you can see the scrollbars are not painted using the selected VCL style. So what I can do? In this case you can write a new style hook class or use an existing hook style. After of quick look for the existing style hook classes in the Vcl.StdCtrls unit, you will discover that the TMemoStyleHook class can do the work.
So writting just one line of code
TStyleManager.Engine.RegisterStyleHook(TCustomSynEdit, TMemoStyleHook);

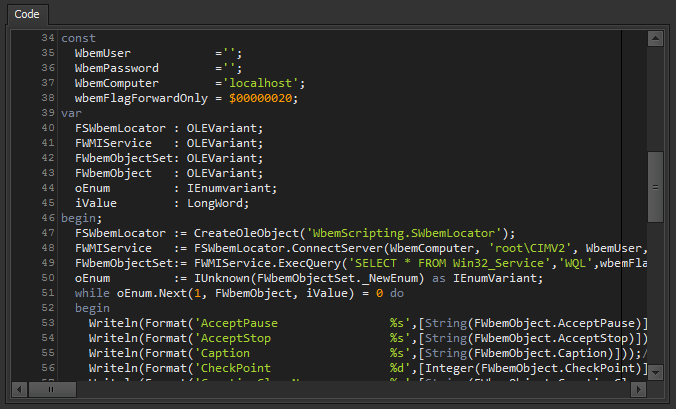

The magic is done.
A Little of hack
When you need register a style hook using the RegisterStyleHook method, if you try to register the same hook class twice, an EStyleEngineException will be raised, So before to try to register a new hook class you must check if is the hook is already registered for a specific control or use a place like the initialization part of a unit to register the hooks . Unfortunally an extensive part of the VCL styles logic and the collections containing the registered style hooks, is contained in sealed classes, strict private vars and strict private static classes. So that information is not accessible directly. Because that, tasks how list the registered hooks, check if a hook has previously registered or if a class has a register style hook are not trivial.
The TCustomStyleEngine class (of the Vcl.Themes unit) has a strict protected class property called RegisteredStyleHooks this property points to a TDictionary declarated (as a private type) like this
TStyleHookList = TList<TStyleHookClass>; TStyleHookDictionary = TDictionary<TClass, TStyleHookList>;
The info contained in this property is very usefull, but due to his visibility (strict protected class property) you need to use a hack to extract such info.
So using a helper class for the TCustomStyleEngine class you can gain access to the TDictionary with the registered hooks
type TStyleHookList = TList<TStyleHookClass>; //you must need declare this type again because are declarated in the private section of the TCustomStyleEngine and are not visible TStyleHookDictionary = TDictionary<TClass, TStyleHookList>;//you must need declare this type again because are declarated in the private section of the TCustomStyleEngine and are not visible TCustomStyleEngineHelper = Class Helper for TCustomStyleEngine public class function GetRegisteredStyleHooks : TStyleHookDictionary; end;
And now using this helper class you can construct additional functions to work with the Style hooks.
Procedure ApplyEmptyVCLStyleHook(ControlClass :TClass); Procedure RemoveEmptyVCLStyleHook(ControlClass :TClass); function IsStyleHookRegistered(ControlClass: TClass; StyleHookClass: TStyleHookClass) : Boolean; function GetRegisteredStylesHooks(ControlClass: TClass) : TStyleHookList;
Using these functions you can list all the registerd style hooks in the system like so
var RttiType : TRttiType; Item : TListItem; List : TStyleHookList; StyleClass: TStyleHookClass; begin for RttiType in TRttiContext.Create.GetTypes do if RttiType.IsInstance and RttiType.AsInstance.MetaclassType.InheritsFrom(TComponent) then begin List:=GetRegisteredStylesHooks(RttiType.AsInstance.MetaclassType); if Assigned(List) then begin Item:=ListViewStyleHooks.Items.Add; Item.Caption:=RttiType.Name; for StyleClass in List do Item.SubItems.Add(StyleClass.ClassName); end; end; end;
This is the code of the unit containing all the above code
unit uVCLStyleUtils; interface Uses Vcl.Themes, Vcl.Styles, Generics.Collections, Classes; type TStyleHookList = TList<TStyleHookClass>; Procedure ApplyEmptyVCLStyleHook(ControlClass :TClass); Procedure RemoveEmptyVCLStyleHook(ControlClass :TClass); function IsStyleHookRegistered(ControlClass: TClass; StyleHookClass: TStyleHookClass) : Boolean; function GetRegisteredStylesHooks(ControlClass: TClass) : TStyleHookList; implementation uses Sysutils; type TStyleHookDictionary = TDictionary<TClass, TStyleHookList>; TCustomStyleEngineHelper = Class Helper for TCustomStyleEngine public class function GetRegisteredStyleHooks : TStyleHookDictionary; end; class function TCustomStyleEngineHelper.GetRegisteredStyleHooks: TStyleHookDictionary; begin Result:= Self.FRegisteredStyleHooks; end; function IsStyleHookRegistered(ControlClass: TClass; StyleHookClass: TStyleHookClass) : Boolean; var List : TStyleHookList; begin Result:=False; if TCustomStyleEngine.GetRegisteredStyleHooks.ContainsKey(ControlClass) then begin List := TCustomStyleEngine.GetRegisteredStyleHooks[ControlClass]; Result:=List.IndexOf(StyleHookClass) <> -1; end; end; function GetRegisteredStylesHooks(ControlClass: TClass) : TStyleHookList; begin Result:=nil; if TCustomStyleEngine.GetRegisteredStyleHooks.ContainsKey(ControlClass) then Result:=TCustomStyleEngine.GetRegisteredStyleHooks[ControlClass]; end; Procedure ApplyEmptyVCLStyleHook(ControlClass :TClass); begin if not IsStyleHookRegistered(ControlClass, TStyleHook) then TStyleManager.Engine.RegisterStyleHook(ControlClass, TStyleHook); end; Procedure RemoveEmptyVCLStyleHook(ControlClass :TClass); begin if IsStyleHookRegistered(ControlClass, TStyleHook) then TStyleManager.Engine.UnRegisterStyleHook(ControlClass, TStyleHook); end; end.
