The Road to Delphi

Delphi – Free Pascal – Oxygene

Detecting installed Delphi versions.

12 Comments

The key to detect the Delphi (or Rad-Studio) installed versions in a system is check the existence of these registry keys under the HKEY_CURRENT_USER root.

UPDATE
Tondrej makes a good comment about to check the existence of the instalation in the HKEY_LOCAL_MACHINE root, so the code has been modified.

for Borland Delphi until version 7

\Software\Borland\Delphi\DelphiVersion for example for Delphi 7 must be \Software\Borland\Delphi\7.0

for Borland Delphi 8 to Borland Development Studio 2006

\Software\Borland\BDS\BdsVersion for example for Borland Development Studio 2005 must be \Software\Borland\BDS\2.0

for Codegear RAD Studio 2009 and 2010

\Software\CodeGear\BDS\BdsVersion for example for RAD Studio 2009 must be \Software\CodeGear\BDS\6.0

and finally for Embarcadero RAD Studio (XE to XE5)

\Software\Embarcadero\BDS\BdsVersion for example for RAD Studio XE2 must be \Software\Embarcadero\BDS\9.0

Now you must check (and read) the existence of the “App” Value  which store the location of the Delphi (or Rad Studio) IDE.

Putting all together you can create an structure like this to access the information in the windows registry.

type
  TDelphiVersions =
  (
  Delphi4,
  Delphi5,
  Delphi6,
  Delphi7,
  Delphi8,
  Delphi2005,
  Delphi2006,
  Delphi2007,
  Delphi2009,
  Delphi2010,
  DelphiXE,
  DelphiXE2,
  DelphiXE3,
  DelphiXE4,
  DelphiXE5
  );

const
  DelphiVersionsNames: array[TDelphiVersions] of string = (
    'Delphi 4',
    'Delphi 5',
    'Delphi 6',
    'Delphi 7',
    'Delphi 8',
    'BDS 2005',
    'BDS 2006',
    'RAD Studio 2007',
    'RAD Studio 2009',
    'RAD Studio 2010',
    'RAD Studio XE',
    'RAD Studio XE2',
    'RAD Studio XE3',
    'RAD Studio XE4',
    'RAD Studio XE5'
    );

  DelphiRegPaths: array[TDelphiVersions] of string = (
    '\Software\Borland\Delphi\4.0',
    '\Software\Borland\Delphi\5.0',
    '\Software\Borland\Delphi\6.0',
    '\Software\Borland\Delphi\7.0',
    '\Software\Borland\BDS\2.0',
    '\Software\Borland\BDS\3.0',
    '\Software\Borland\BDS\4.0',
    '\Software\Borland\BDS\5.0',
    '\Software\CodeGear\BDS\6.0',
    '\Software\CodeGear\BDS\7.0',
    '\Software\Embarcadero\BDS\8.0',
    '\Software\Embarcadero\BDS\9.0',
    '\Software\Embarcadero\BDS\10.0',
    '\Software\Embarcadero\BDS\11.0',
    '\Software\Embarcadero\BDS\12.0'
);

and declaring a couple of helper functions to facilitate the work

function RegKeyExists(const RegPath: string;const RootKey :HKEY): Boolean;
var
  Reg: TRegistry;
begin
  try
    Reg         := TRegistry.Create;
    try
      Reg.RootKey := RootKey;
      Result := Reg.KeyExists(RegPath);
    finally
      Reg.Free;
    end;
  except
    Result := False;
  end;
end;

function RegReadStr(const RegPath, RegValue:string; var Str: string;const RootKey :HKEY): Boolean;
var
  Reg: TRegistry;
begin
  try
    Reg := TRegistry.Create;
    try
      Reg.RootKey := RootKey;
      Result := Reg.OpenKey(RegPath, True);
      if Result then  Str:=Reg.ReadString(RegValue);
    finally
      Reg.Free;
    end;
  except
    Result := False;
  end;
end;

procedure ExtractIconFileToImageList(ImageList: TImageList; const Filename: string);
var
  FileInfo: TShFileInfo;
begin
  if FileExists(Filename) then
  begin
    FillChar(FileInfo, SizeOf(FileInfo), 0);
    SHGetFileInfo(PChar(Filename), 0, FileInfo, SizeOf(FileInfo), SHGFI_ICON or SHGFI_SMALLICON);
    if FileInfo.hIcon <> 0 then
    begin
      ImageList_AddIcon(ImageList.Handle, FileInfo.hIcon);
      DestroyIcon(FileInfo.hIcon);
    end;
  end;
end;

finally we can fill a listview with the result adding a fancy Delphi icon

Var
 item       : TListItem;
 DelphiComp : TDelphiVersions;
 FileName   : string;
 ImageIndex : Integer;
 Found      : Boolean;
begin
    for DelphiComp := Low(TDelphiVersions) to High(TDelphiVersions) do
    begin
       Found:=RegKeyExists(DelphiRegPaths[DelphiComp],HKEY_CURRENT_USER);
       if Found then
        Found:=RegReadStr(DelphiRegPaths[DelphiComp],'App',FileName,HKEY_CURRENT_USER) and FileExists(FileName);

       if not Found then
       begin
         Found:=RegKeyExists(DelphiRegPaths[DelphiComp],HKEY_LOCAL_MACHINE);
         if Found then
           Found:=RegReadStr(DelphiRegPaths[DelphiComp],'App',FileName,HKEY_LOCAL_MACHINE) and FileExists(FileName);
       end;

        if Found then
        begin
           item:=ListViewIDEs.Items.Add;
           item.Caption:=DelphiVersionsNames[DelphiComp];
           item.SubItems.Add(FileName);
           ExtractIconFileToImageList(ImageList1,Filename);
           ImageIndex     :=ImageList1.Count-1;
           item.ImageIndex:=ImageIndex;
        end;
    end;
end;

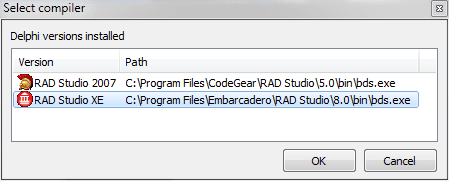

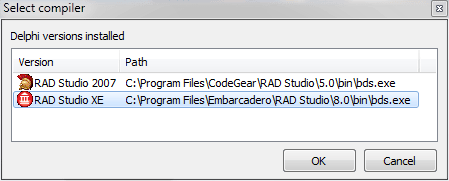

And the final result will look like this

the source code (Delphi 2007) is available on Github.

Author: Rodrigo

Just another Delphi guy.

12 thoughts on “Detecting installed Delphi versions.

  1. clean and elegant, I like it!! I hope you don’t mind if I use this code in my applications ;)

  2. In case you installed Delphi under a different user account there is no registry key in HKEY_CURRENT_USER until the first time you start Delphi – which is when it gets created by copying data from HKEY_LOCAL_MACHINE to the current user’s HKEY_CURRENT_USER registry hive. So more precisely you should look in HKEY_LOCAL_MACHINE to detect if Delphi is installed.

    • tondrej thanks for you observation, you are right wich sometimes the values to detect the presence of delphi are stored in the HKEY_LOCAL_MACHINE root. but mostly of times is stored in the HKEY_CURRENT_USER root.

      • No, the registry key is always in HKEY_LOCAL_MACHINE (created by Delphi installer), and the first time you start Delphi under a user account it gets copied to HKEY_CURRENT_USER.

  3. Pingback: Tweets that mention Detecting installed delphi versions. « The Road to Delphi – a Blog About Delphi Programming (mostly) -- Topsy.com

  4. wow … very useful thanks :)

  5. tondrej :

    No, the registry key is always in HKEY_LOCAL_MACHINE (created by Delphi installer), and the first time you start Delphi under a user account it gets copied to HKEY_CURRENT_USER.

    tondrej, I think the best is to check in both roots (HKEY_LOCAL_MACHINE and HKEY_CURRENT_USER), to be sure.

  6. hello,
    i have used https://theroadtodelphi.wordpress.com/2010/10/27/detecting-installed-delphi-versions/ source in my application which i intend to make it available online.
    please tell me how to link you [with your permission] in the attribution license?

  7. The started edition (XE7) does not seem to have an “App” entry in the registry. I needed to change my script as follows:

    function HasDelphiVersion(const sRegPath: string): Boolean;
    var
    sFileName : string;
    begin
    // From code at https://theroadtodelphi.wordpress.com/2010/10/27/detecting-installed-delphi-versions/

    Result := RegKeyExists( HKEY_CURRENT_USER, sRegPath );
    if Result then
    Result := RegQueryStringValue( HKEY_CURRENT_USER, sRegPath, ‘App’, sFileName ) and FileExists( sFileName );

    // Starter edition may not have “App” registry value
    if not Result then
    Result := RegQueryStringValue( HKEY_CURRENT_USER, sRegPath, ‘RootDir’, sFileName ) and FileExists( sFileName + ‘bin\bds.exe’ );

    if not Result then
    begin
    Result := RegKeyExists( HKEY_LOCAL_MACHINE, sRegPath );
    if Result then
    Result := RegQueryStringValue( HKEY_LOCAL_MACHINE, sRegPath, ‘App’, sFileName ) and FileExists( sFileName );
    end;
    end;
