The lasts weeks I’ve been working in a new project, called Delphi WMI class code generator. let me tell you about it.
The WMI (Windows Management Instrumentation) is formed by many classes, this classes exposes properties and methods. Also each class, property and method have qualifiers which are something like attributes, these qualifiers include descriptions about the classes, method, parameters or properties, types and many more useful information.
Now to access the properties of a wmi class from object pascal code is a very easy task, as was shown in this post, but by the other side to access the methods is little more complicated, because you need to known if the method is static or dynamic. also you must deal in some cases with complicated parameters which must be variants arrays, objects or datetime (in UTC format). and finally some of these parameters can be optional. so if you are only an occasional user of the WMI you must figure out a lot of thinks before to use it.
Because that and to the experience gained when I wrote the WMI Delphi Code Creator application, I decided to go a couple of steps forward and create tool which facilitate the access to the properties and methods exposed by the WMI classes from Object Pascal code.
The result was a code generator which parse the very rich meta-data of the wmi classes and extract the properties and methods and convert into a Object pascal class.
Now Let me show a sample code generated by the tool for the Win32_Share Wmi class.
/// <summary>
/// Unit generated using the Delphi Wmi class generator tool, Copyright Rodrigo Ruz V. 2010
/// Application version 0.1.0.120
/// WMI version 7600.16385
/// Creation Date 24-12-2010 09:38:11
/// Namespace root\CIMV2 Class Win32_Share
/// MSDN info about this class http://msdn2.microsoft.com/library/default.asp?url=/library/en-us/wmisdk/wmi/Win32_Share.asp
/// </summary>
{$IFDEF FPC}
{$MODE DELPHI} {$H+}
{$DEFINE OLD_DELPHI}
{$ENDIF}
unit uWin32_Share;
interface
uses
Classes,
Activex,
Variants,
ComObj,
uWmiDelphiClass;
type
{$IFDEF FPC}
Cardinal=Longint;
Int64=Integer;
Word=Longint;
{$ENDIF}
{$IFNDEF FPC}
{$IF CompilerVersion <= 15}
{$DEFINE OLD_DELPHI}
{$IFEND}
{$ENDIF}
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Win32_Share class represents a shared resource on a Win32 system. This may be a disk drive, printer, interprocess communication, or other shareable device.
/// Example: C:\PUBLIC.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
TWin32_Share=class(TWmiClass)
private
FAccessMask : Cardinal;
FAllowMaximum : Boolean;
FCaption : String;
FDescription : String;
FInstallDate : TDateTime;
FMaximumAllowed : Cardinal;
FName : String;
FPath : String;
FStatus : String;
FType : Cardinal;
public
constructor Create(LoadWmiData : boolean=True); overload;
destructor Destroy;Override;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// This property has been deprecated in favour of the GetAccessMask method of this
/// class due to the expense of calling GetEffectiveRightsFromAcl. The value will
/// be set to NULL
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property AccessMask : Cardinal read FAccessMask;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The AllowMaximum property indicates whether the number of concurrent users for this resource has been limited.
/// Values: TRUE or FALSE. A value of TRUE indicates the number of concurrent users of this resource has not been limited and the value in the MaximumAllowed property is ignored.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property AllowMaximum : Boolean read FAllowMaximum;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Caption property is a short textual description (one-line string) of the
/// object.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property Caption : String read FCaption;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Description property provides a textual description of the object.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property Description : String read FDescription;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The InstallDate property is datetime value indicating when the object was
/// installed. A lack of a value does not indicate that the object is not installed.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property InstallDate : TDateTime read FInstallDate;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The MaximumAllowed property indicates the limit on the maximum number of users allowed to use this resource concurrently. The value is only valid if the AllowMaximum member set to FALSE
/// Example: 10.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property MaximumAllowed : Cardinal read FMaximumAllowed;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Name property indicates the alias given to a path set up as a share on a Win32 system.
/// Example: public.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property Name : String read FName;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Path property indicates the local path of the Win32 share.
/// Example: C:\Program Files
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property Path : String read FPath;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Status property is a string indicating the current status of the object.
/// Various operational and non-operational statuses can be defined. Operational
/// statuses are "OK", "Degraded" and "Pred Fail". "Pred Fail" indicates that an
/// element may be functioning properly but predicting a failure in the near
/// future. An example is a SMART-enabled hard drive. Non-operational statuses can
/// also be specified. These are "Error", "Starting", "Stopping" and "Service". The
/// latter, "Service", could apply during mirror-resilvering of a disk, reload of a
/// user permissions list, or other administrative work. Not all such work is on-
/// line, yet the managed element is neither "OK" nor in one of the other states.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property Status : String read FStatus;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// The Type property specifies the type of resource being shared. Types include
/// disk drives, print queues, interprocess communications (IPC), and general
/// devices.
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
property {$IFDEF OLD_DELPHI}_Type{$ELSE}&Type{$ENDIF} : Cardinal read FType;
function Create(const Access : OleVariant;const Description : String;const MaximumAllowed : Cardinal;const Name : String;const Password : String;const Path : String;const {$IFDEF OLD_DELPHI}_Type{$ELSE}&Type{$ENDIF} : Cardinal): Integer;overload;
function SetShareInfo(const Access : OleVariant;const Description : String;const MaximumAllowed : Cardinal): Integer;
function GetAccessMask: Integer;
function Delete: Integer;
procedure SetCollectionIndex(Index : Integer); override;
end;
{$IFDEF UNDEF}{$REGION 'Documentation'}{$ENDIF}
/// <summary>
/// Return the description for the value of the property TWin32_Share.Type
/// </summary>
{$IFDEF UNDEF}{$ENDREGION}{$ENDIF}
function GetTypeAsString(const APropValue:Cardinal) : string;
implementation
function GetTypeAsString(const APropValue:Cardinal) : string;
begin
Result:='';
case APropValue of
0 : Result:='Disk Drive';
1 : Result:='Print Queue';
2 : Result:='Device';
3 : Result:='IPC';
2147483648 : Result:='Disk Drive Admin';
2147483649 : Result:='Print Queue Admin';
2147483650 : Result:='Device Admin';
2147483651 : Result:='IPC Admin';
end;
end;
{TWin32_Share}
constructor TWin32_Share.Create(LoadWmiData : boolean=True);
begin
inherited Create(LoadWmiData,'root\CIMV2','Win32_Share');
end;
destructor TWin32_Share.Destroy;
begin
inherited;
end;
procedure TWin32_Share.SetCollectionIndex(Index : Integer);
begin
if (Index>=0) and (Index<=FWmiCollection.Count-1) and (FWmiCollectionIndex<>Index) then
begin
FWmiCollectionIndex:=Index;
FAccessMask := VarCardinalNull(inherited Value['AccessMask']);
FAllowMaximum := VarBoolNull(inherited Value['AllowMaximum']);
FCaption := VarStrNull(inherited Value['Caption']);
FDescription := VarStrNull(inherited Value['Description']);
FInstallDate := VarDateTimeNull(inherited Value['InstallDate']);
FMaximumAllowed := VarCardinalNull(inherited Value['MaximumAllowed']);
FName := VarStrNull(inherited Value['Name']);
FPath := VarStrNull(inherited Value['Path']);
FStatus := VarStrNull(inherited Value['Status']);
FType := VarCardinalNull(inherited Value['Type']);
end;
end;
//static, OutParams=1, InParams>0
function TWin32_Share.Create(const Access : OleVariant;const Description : String;const MaximumAllowed : Cardinal;const Name : String;const Password : String;const Path : String;const {$IFDEF OLD_DELPHI}_Type{$ELSE}&Type{$ENDIF} : Cardinal): Integer;
var
objInParams : OleVariant;
objOutParams : OleVariant;
begin
objInParams := GetInstanceOf.Methods_.Item('Create').InParameters.SpawnInstance_();
objInParams.Properties_.Item('Access').Value := Access;
objInParams.Properties_.Item('Description').Value := Description;
objInParams.Properties_.Item('MaximumAllowed').Value := MaximumAllowed;
objInParams.Properties_.Item('Name').Value := Name;
objInParams.Properties_.Item('Password').Value := Password;
objInParams.Properties_.Item('Path').Value := Path;
objInParams.Properties_.Item('Type').Value := {$IFDEF OLD_DELPHI}_Type{$ELSE}&Type{$ENDIF};
objOutParams := WMIService.ExecMethod(WmiClass, 'Create', objInParams, 0, GetNullValue);
Result := VarIntegerNull(objOutParams.ReturnValue);
end;
//not static, OutParams=1, InParams>0
function TWin32_Share.SetShareInfo(const Access : OleVariant;const Description : String;const MaximumAllowed : Cardinal): Integer;
var
ReturnValue : OleVariant;
begin
ReturnValue := GetInstanceOf.SetShareInfo(Access,Description,MaximumAllowed);
Result := VarIntegerNull(ReturnValue);
end;
//not static, OutParams=1, InParams=0
function TWin32_Share.GetAccessMask: integer;
var
ReturnValue : OleVariant;
begin
ReturnValue := GetInstanceOf.GetAccessMask;
Result := VarIntegerNull(ReturnValue);
end;
//not static, OutParams=1, InParams=0
function TWin32_Share.Delete: integer;
var
ReturnValue : OleVariant;
begin
ReturnValue := GetInstanceOf.Delete;
Result := VarIntegerNull(ReturnValue);
end;
end.
as you can see the generated code is a full documented class compatible with the delphi help insight feature, available since Delphi 2005.
check this screen-shot which show the help insight for the Getowner method of the Win32_Process class.

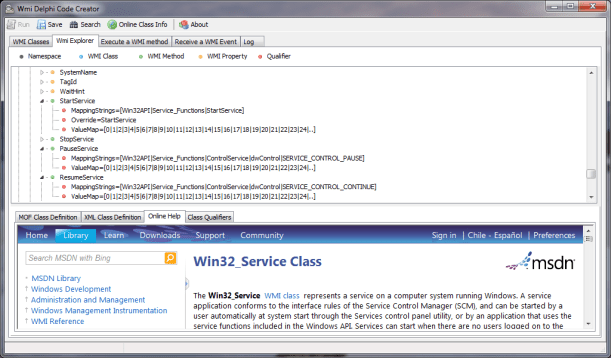

This tool not only facilitate the access to the wmi, also give you information about every single WMI class, method and property.
here some features of the application
- The code generated is compatible Delphi 7, 2005, BDS/Turbo 2006 and RAD Studio 2007, 2009, 2010, XE and the Free Pascal Compiler 2.2.4 (win32)
- Create full documented classes compatible with the help insight feature, available since Delphi 2005.
Note : the language of the description of the methods, parameters and properties depends on of the language of the windows where you generate the units. - Create additional helper functions to retrieve the description of the returned values for the properties and functions.
- Support access to the WMI of the remote computers.
Now see this sample application which uses a class generated by the tool to access the BIOS information of a Remote PC.
program TestRemote;
{$APPTYPE CONSOLE}
uses
SysUtils,
uWmiDelphiClass in '..\..\uWmiDelphiClass.pas', //the base class must be always included
uWin32_BIOS in '..\..\root_CIMV2\uWin32_BIOS.pas'; //the class with the BIOs information
var
RemoteBiosInfo : TWin32_BIOS;
i : integer;
begin
try
RemoteBiosInfo:=TWin32_BIOS.Create(False); //Create a instance of the TWin32_BIOS, the false value indicate which not load the Values when calls the constructor.
try
RemoteBiosInfo.WmiServer:='192.168.217.128'; //the remote pc name or IP
RemoteBiosInfo.WmiUser :='Administrator'; //the user used to establish the connection
RemoteBiosInfo.WmiPass :='password'; //the password
RemoteBiosInfo.LoadWmiData; //now load the the data of the class
if RemoteBiosInfo.WmiConnected then //check if the connection was established
begin
Writeln('Serial Number '+RemoteBiosInfo.SerialNumber);
Writeln('BuildNumber '+RemoteBiosInfo.BuildNumber);
if RemoteBiosInfo.BIOSVersion.Count>0 then
Writeln('Version '+RemoteBiosInfo.BIOSVersion[0]);
Writeln('Identification Code '+RemoteBiosInfo.IdentificationCode);
Writeln('Manufacturer '+RemoteBiosInfo.Manufacturer);
Writeln('SoftwareElementID '+RemoteBiosInfo.SoftwareElementID);
Writeln('Release Date '+DateToStr(RemoteBiosInfo.ReleaseDate));
Writeln('Install Date '+DateToStr(RemoteBiosInfo.InstallDate));
Writeln('Target S.O '+GetTargetOperatingSystemAsString(RemoteBiosInfo.TargetOperatingSystem));
Writeln('Soft. element state '+GetSoftwareElementStateAsString(RemoteBiosInfo.SoftwareElementState));
Writeln('');
Writeln('Bios Characteristics');
Writeln('--------------------');
for i:=Low(RemoteBiosInfo.BiosCharacteristics) to High(RemoteBiosInfo.BiosCharacteristics) do
Writeln(GetBiosCharacteristicsAsString(RemoteBiosInfo.BiosCharacteristics[i]));
end
else
Writeln('No connected');
finally
RemoteBiosInfo.Free;
end;
except
on E:Exception do
Writeln(E.Classname, ': ', E.Message);
end;
Readln;
end.
You can found more information about the internals, the full source code, demos and samples of this tool in the google code project page.
See you, and happy new year.
